10 Row Series 10000 Stack Plate Universal Engine Oil Cooler Kit, Spin On Adapter

Stack Plate Engine Cooler Kit, Spin-On Adapter 15651

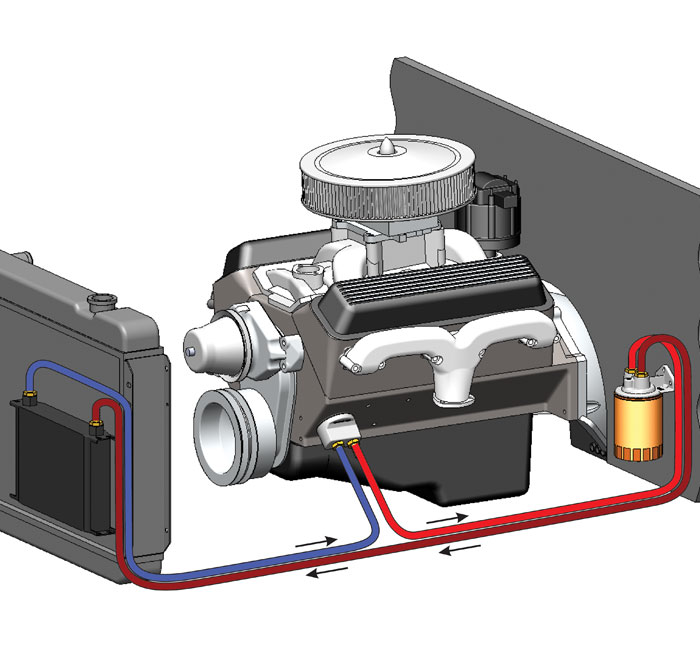

This kit not only includes an engine oil cooler but a remote oil filter mount. The oven-brazed, all-aluminum stacked plate oil cooler reduces oil temperatures to help extend the life of lower end components and oil life. It can also help to reduce coolant temperatures. This universal kit comes with a complete installation kit to install easily on most vehicle engines. Filter mount uses Fram PH8A Oil Filter or equivalent.

  • Cooler style: Stacked Plate
  • Cooler construction: Aluminum
  • Cooler inlet size: -8AN

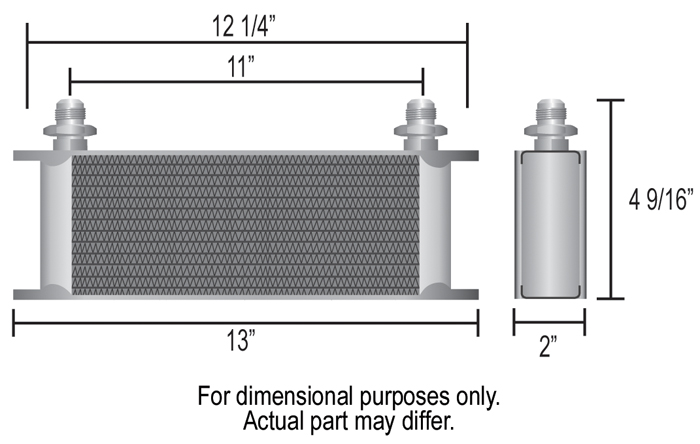

  • Cooler width: 13"
  • Cooler height: 4-9/16"
  • Cooler depth: 2"
  • Cooler inlet dim: 11"
  • Cooler mounting: 12-1/4"

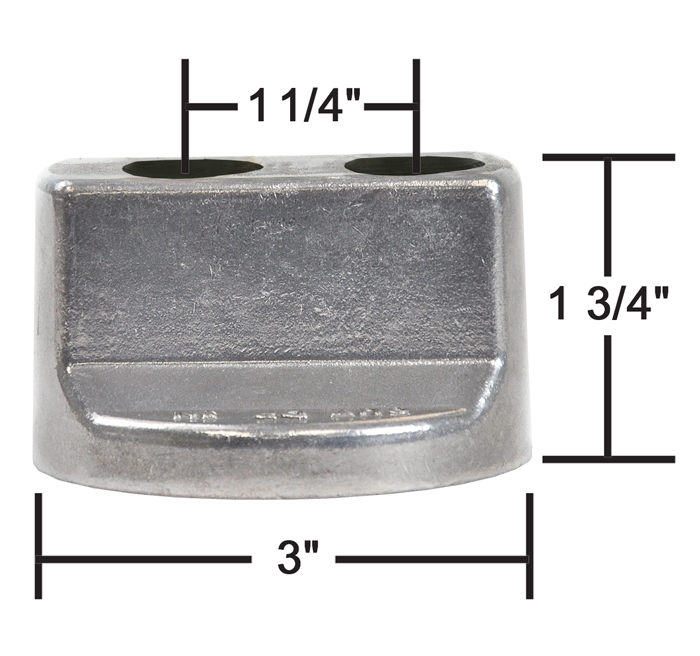

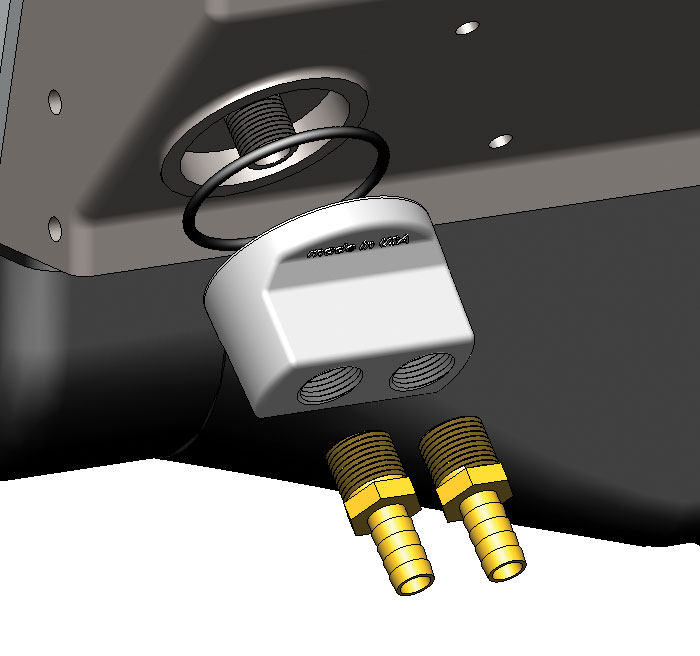

  • Spin-On Adapter type: J
  • Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
  • Adapter thickness: 1-3/4" or 2"
  • Adapter inlet size: 1/2" NPT
  • Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"
  • Remote filter thread size: 3/4"-16
  • Remote filter inlet size: 1/2" NPT
  • Hose size: 1/2"
  • Hose length: 10'
  • 20,000 BTU's Per Hour
  • 6oz. Additional Fluid Capacity
  • Can reduce oil temperature up to 50°F
  • Helps reduce coolant temperature
  • Extends engine life

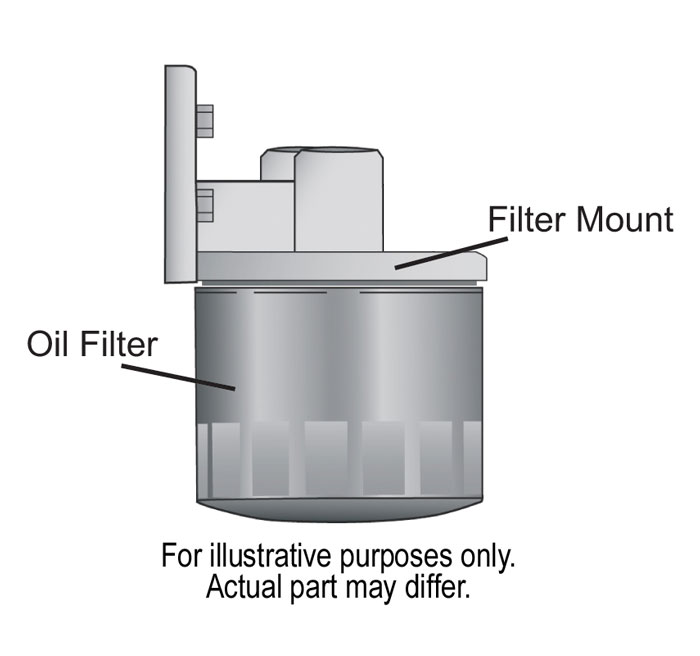

  • Includes ports-up filter mount (Fram PH8A equivalent filters)
  • High pressure Stacked Plate cooler
  • Type J Spin-On Adapter fits most applications *see application guide for specific applications
  • Complete hardware kit included
  • 20,000 BTU's Per Hour
  • Cooler is rated at 250psi working pressure and 300psi burst strength
