Part Number 13101

4 Pass 13'' Series 7000 Copper/Aluminum Transmission Cooler Kit

Description

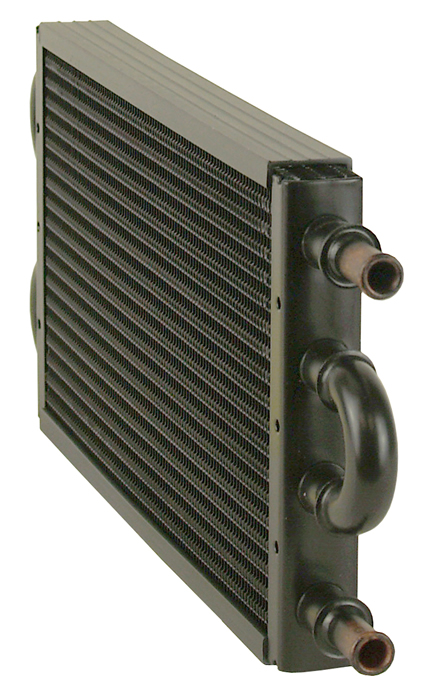

This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for today's highly-stressed subcompact cars, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Specifications
  • Cooler style: Tube & Fin
  • Construction: Copper tube and aluminum fin
  • Inlet size: 11/32" barb
  • GVW: 12000

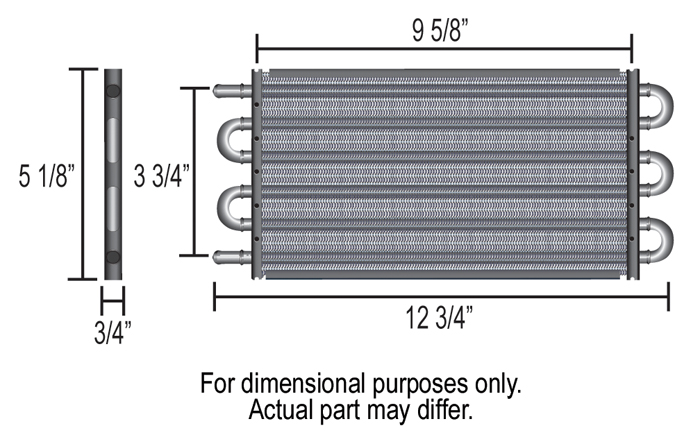

  • Width: 12-3/4"
  • Height: 5-1/8"
  • Depth: 3/4"
  • Inlet dim: 3-3/4"
  • Mounting: 9-5/8"
  • Hose size: 11/32"
  • Hose length: 4'
Features
  • Prevents heat related transmission failures
  • Extends life of transmission
  • Improves transmission performance
  • Extruded plastic cooling fin guards
  • 4 pass cooler design
  • 1/2" copper tubing expanded into aluminum cooling fins
  • 11/32" hose barb inlets
  • 12000 GVW rated
  • Fluid Capacity:4oz

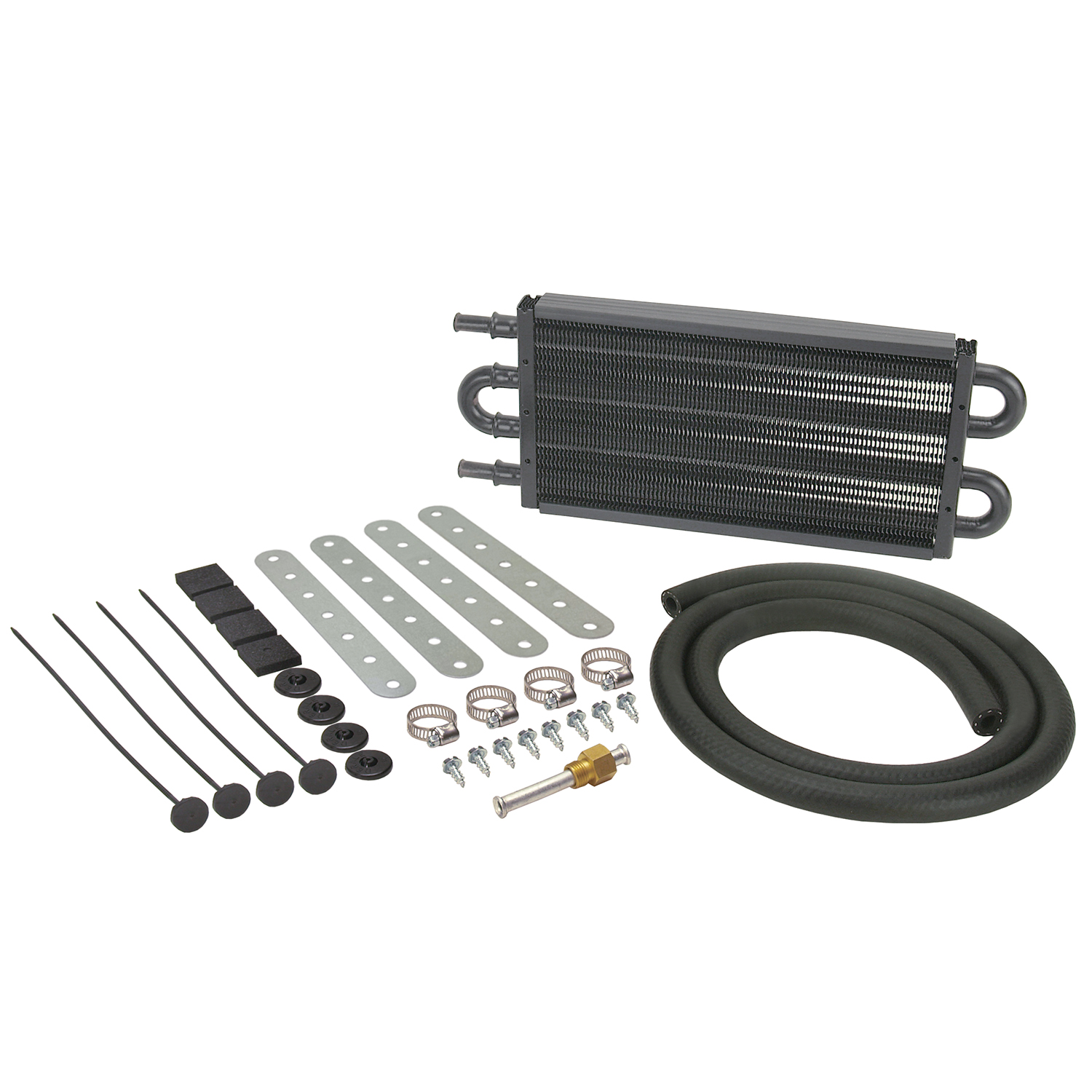

  • Complete hardware kit included
