Part Number 13107
8 Pass 13'' Series 7000 Copper/Aluminum Transmission Cooler Kit
Description

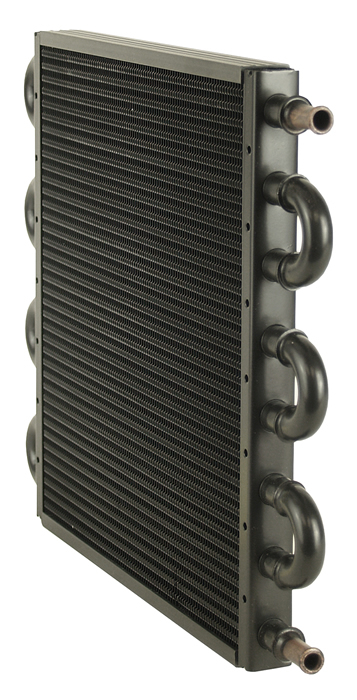

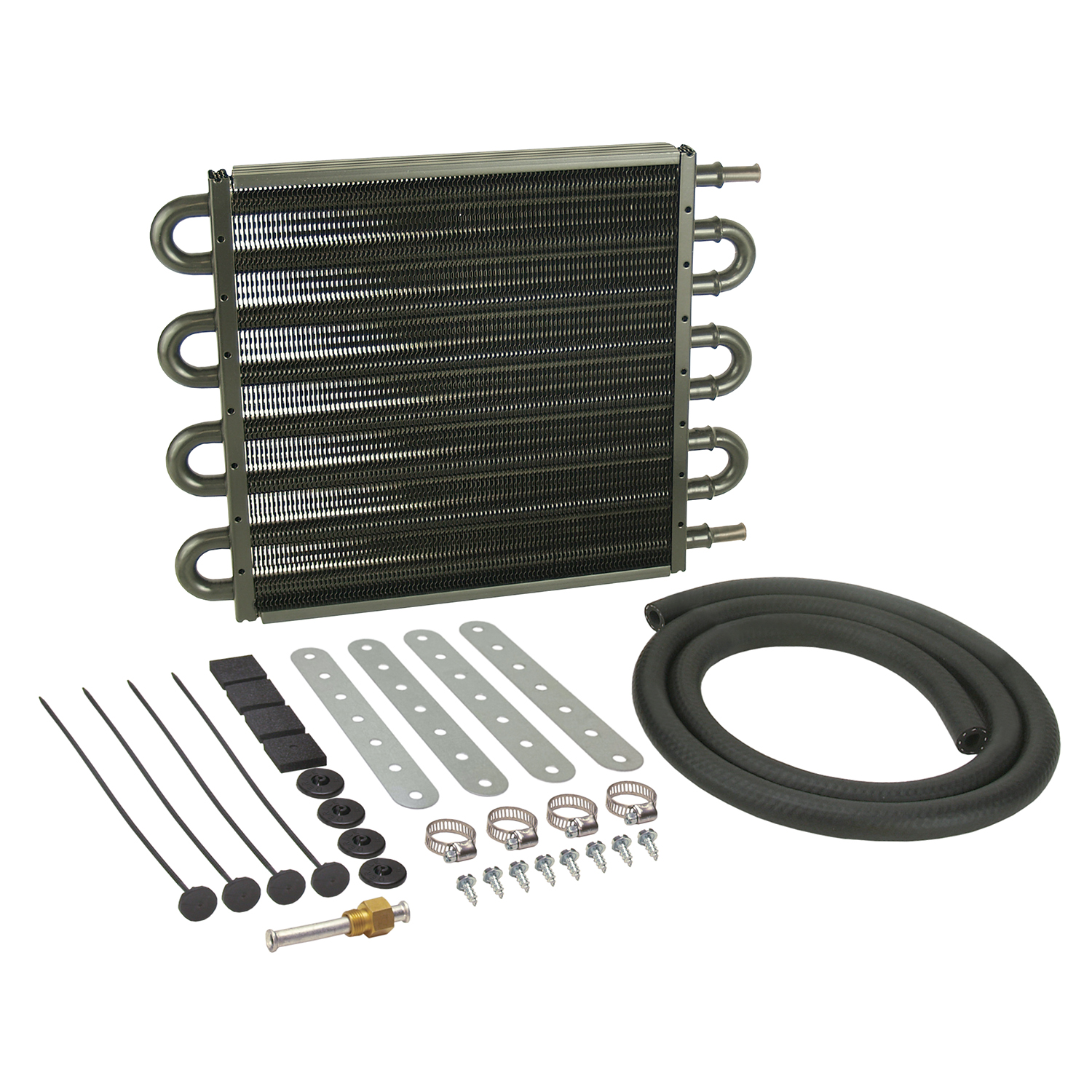

This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for medium-sized cars and compact trucks and SUVs' that see light duty towing, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Extruded plastic cooling fin guards
- 8 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- 11/32" hose barb inlets
- 18200 GVW rated
- 7,500 BTU/Hr
- Fluid Capacity:6.25oz
- Complete hardware kit included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: 11/32" barb
- GVW: 18200
- Width: 12-3/4"
- Height: 10-1/4"
- Depth: 3/4"
- Inlet dim: 8-3/4"
- Mounting: 9-5/8"
- Hose size: 11/32"
- Hose length: 4'
