Part Number 13108
10 Pass 13'' Series 7000 Copper/Aluminum Transmission Cooler Kit
Description

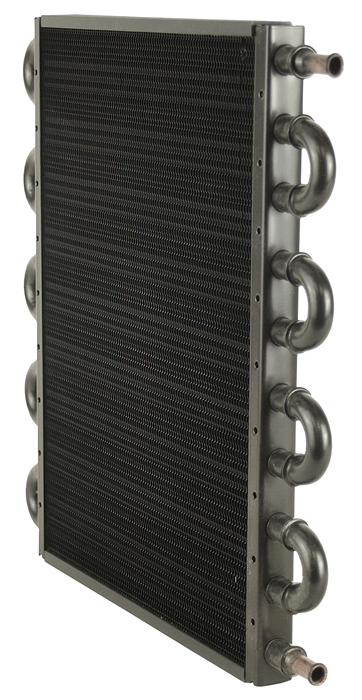

This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for full-size cars and medium size trucks and SUVs' that are used for part time towing, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Extruded plastic cooling fin guards
- 10 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- 11/32" hose barb inlets
- 20500 GVW rated
- 9,500 BTU/Hr
- Fluid Capacity:8oz

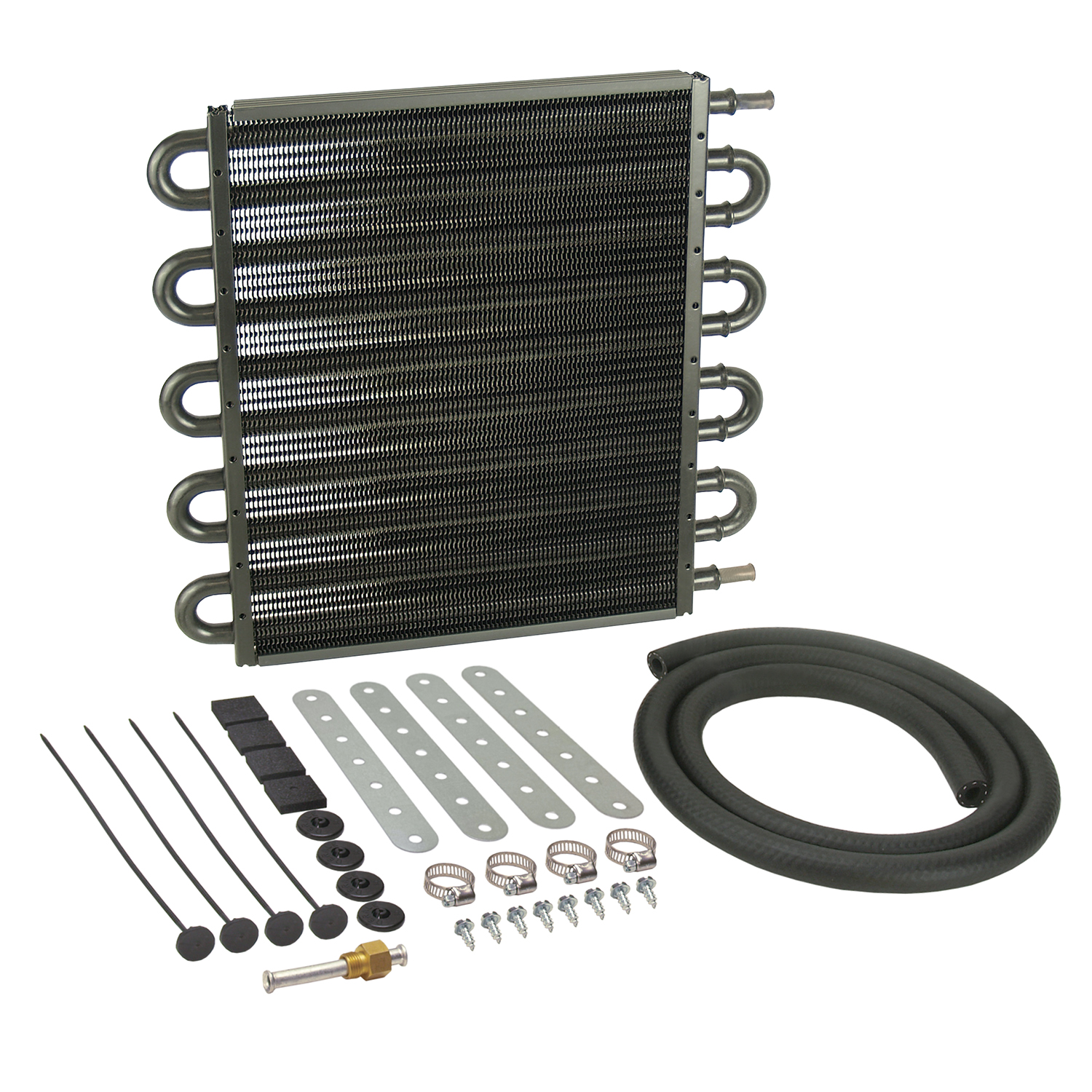

- Complete hardware kit included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: 11/32" barb
- GVW: 20500

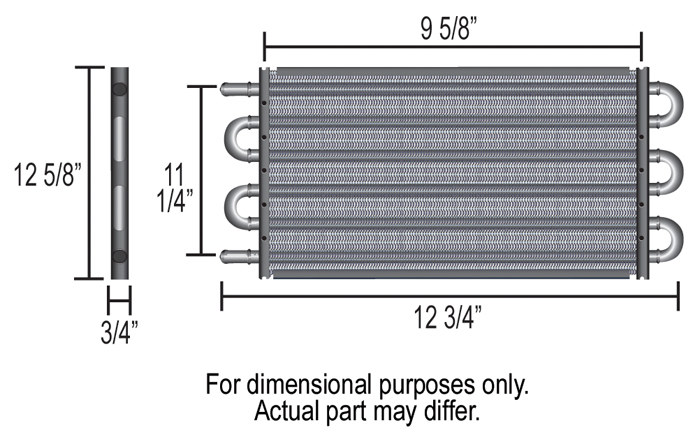

- Width: 12-3/4"
- Height: 12-5/8"
- Depth: 3/4"
- Inlet dim: 11-1/4"
- Mounting: 9-5/8"
- Hose size: 11/32"
- Hose length: 4'
