Part Number 13206
6 Pass 13'' Series 7000 Copper/Aluminum Transmission Cooler Kit
Description

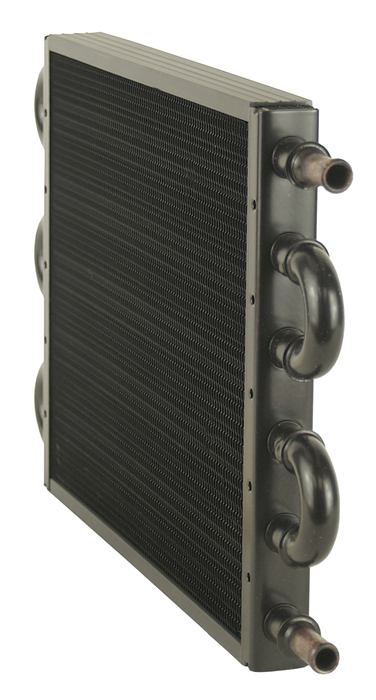

This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for today's highly-stressed smaller trucks and SUVs', they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: 11/32" barb
- GVW:15500

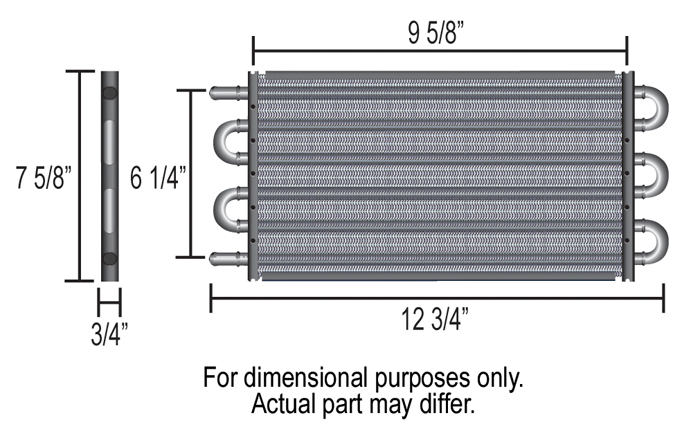

- Width: 12-3/4"
- Height: 7-5/8"
- Depth: 3/4"
- Inlet dim: 6-1/4"
- Mounting: 9-5/8"
- Hose size: 11/32"
- Hose length: 4'
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Extruded plastic cooling fin guards
- 6 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- 11/32" hose barb inlets
- 15500 GVW rated

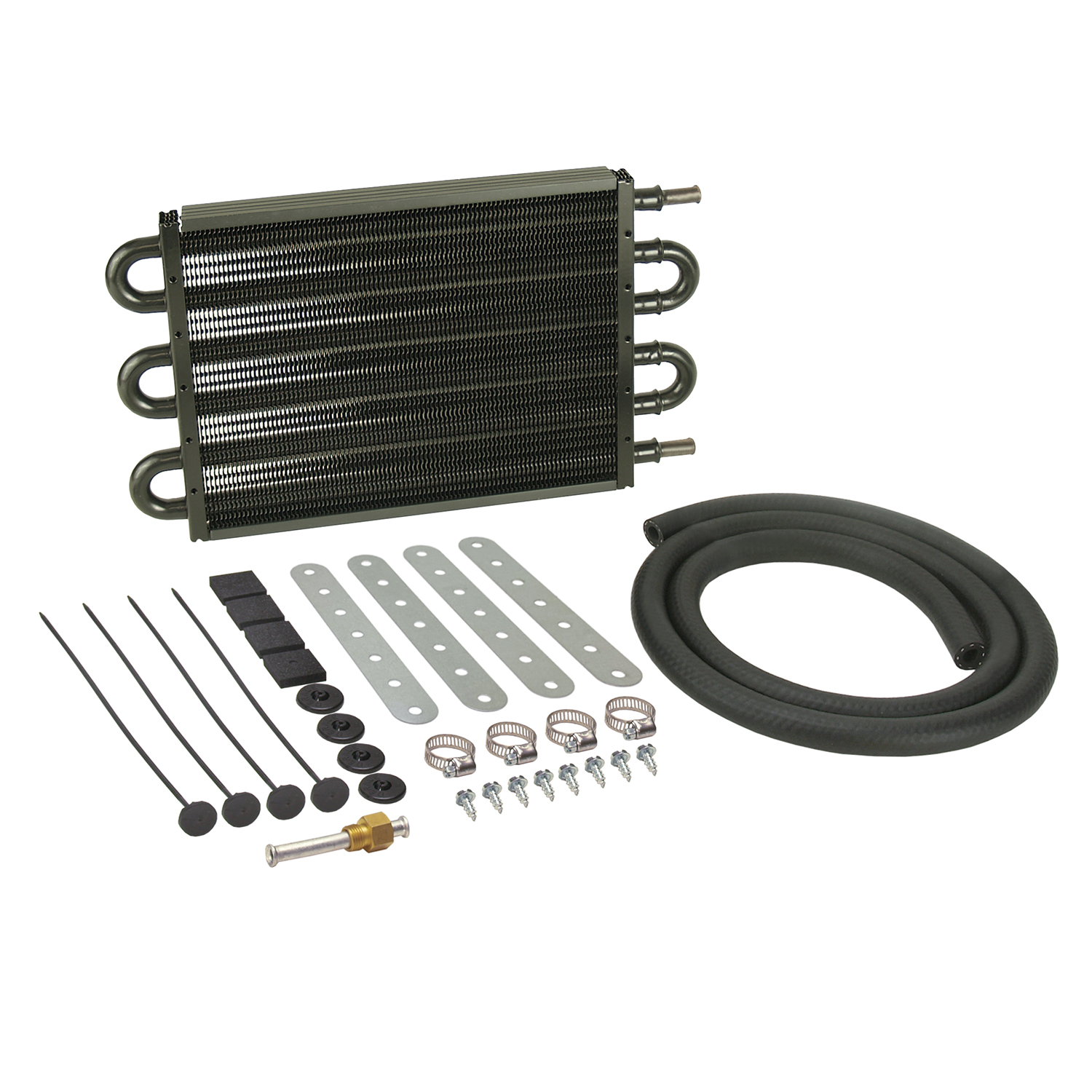

- Complete hardware kit included
