Part Number 13303

6 Pass 18'' Series 7000 Copper/Aluminum Transmission Cooler Kit, -6AN

Description

This Tube & Fin transmission cooler kit features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for medium-sized cars and compact trucks and SUVs' that see light duty towing, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Specifications
  • Cooler style: Tube & Fin
  • Construction: Copper tube and aluminum fin
  • Inlet size: -6AN male
  • GVW: 18500

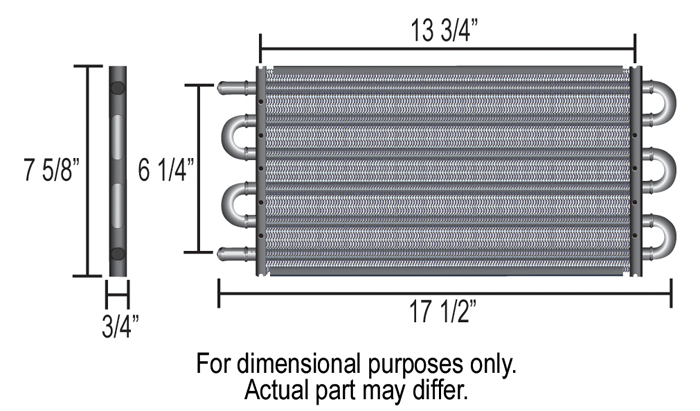

  • Width: 17-1/2"
  • Height: 7-5/8"
  • Depth: 3/4"
  • Inlet dim: 6-1/4"
  • Mounting: 13-3/4"
  • Hose size: 11/32" w/ female -6AN fittings
  • Hose length: 4'
Features
  • Prevents heat related transmission failures
  • Extends life of transmission
  • Improves transmission performance
  • Extruded plastic cooling fin guards
  • 6 pass cooler design
  • 1/2" copper tubing expanded into aluminum cooling fins
  • -6AN inlets
  • 18500 GVW rated
  • Fluid Capacity:7oz
