Part Number 13304
8 Pass 18'' Series 7000 Copper/Aluminum Transmission Cooler Kit, -6AN
Description
This Tube & Fin transmission cooler kit features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for medium-sized cars and compact trucks and SUVs' that see light duty towing, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Extruded plastic cooling fin guards
- 8 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
- 20500 GVW rated
- Fluid Capacity:11.5oz

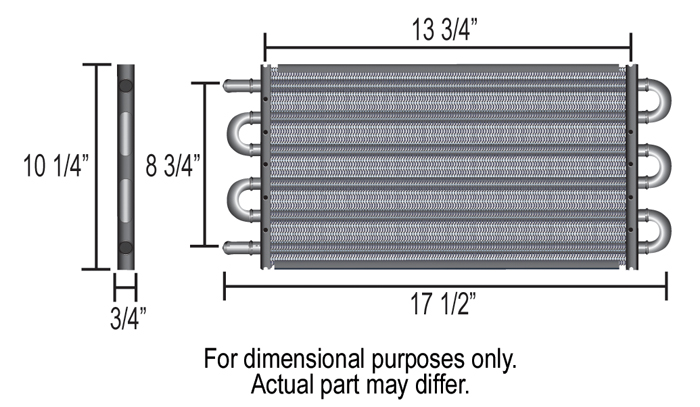

Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN male
- GVW: 20500
- Width: 17-1/2"
- Height: 10-1/4"
- Depth: 3/4"
- Inlet dim: 8-3/4"
- Mounting: 13-3/4"
- Hose size: 11/32" w/ female -6AN fittings
- Hose length: 4'
