6 Pass Series 7000 Aluminum/Copper GM V8 Engine Oil Cooler Kit, Sandwich Adapter
Tube & Fin Engine Oil Cooler Kit, Sandwich Adapter 15503
Description

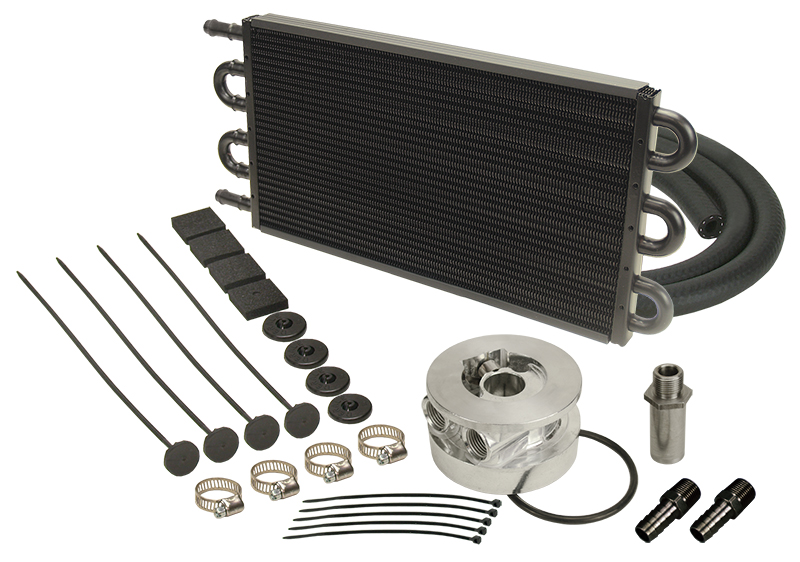

Tailored to GM's popular V8's for street use, this universal 6 pass high capacity copper tube/aluminum fin engine oil cooler kit can not only reduce oil temperatures to help extend the life of lower end components and oil life, it also helps reduce coolant temperatures. This kit includes 180°F thermostatic sandwich adapter, hose and everything you need to fit most 1963-2007 GM V-8 applications. Made in the USA.
Specifications
- Cooler style: Tube & Fin
- Cooler construction: Copper tube and Aluminum fin
- Cooler inlet size: 1/2" barb

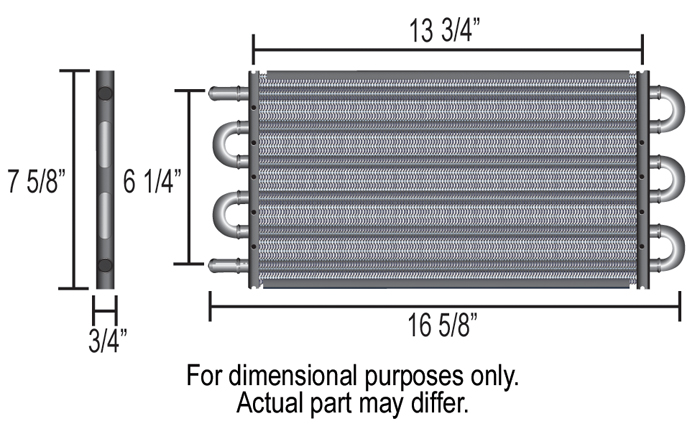

- Cooler width: 16-5/8"
- Cooler height: 7-5/8"
- Cooler depth: 3/4"
- Cooler inlet dim: 6-1/4"
- Cooler mounting: 13-7/8"

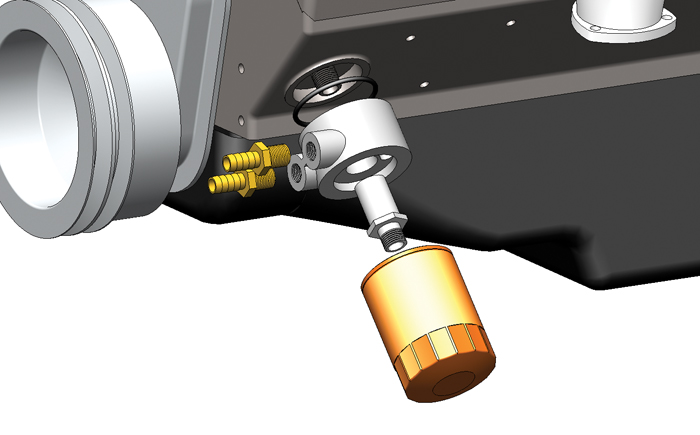

- Sandwich Adapter type: C
- Adapter thread size: 13/16"-16
- Adapter o-ring size: 3-1/2"
- Adapter thickness: 2-1/4"
- Adapter inlet size: 1/2" NPT
- Hose size: 1/2"
- Hose length: 10'
- 6,000 BTU/Hr
- Fluid Capacity:7oz
Features
- Can reduce engine oil temp up to 50°F
- Helps reduce coolant temperatures
- Extends engine life
- 6 pass Tube & Fin style cooler
- Type C Sandwich Adapter fits most big block Chevy applications *see application guide for specific applications
- Complete hardware kit included
