Part Number 13215

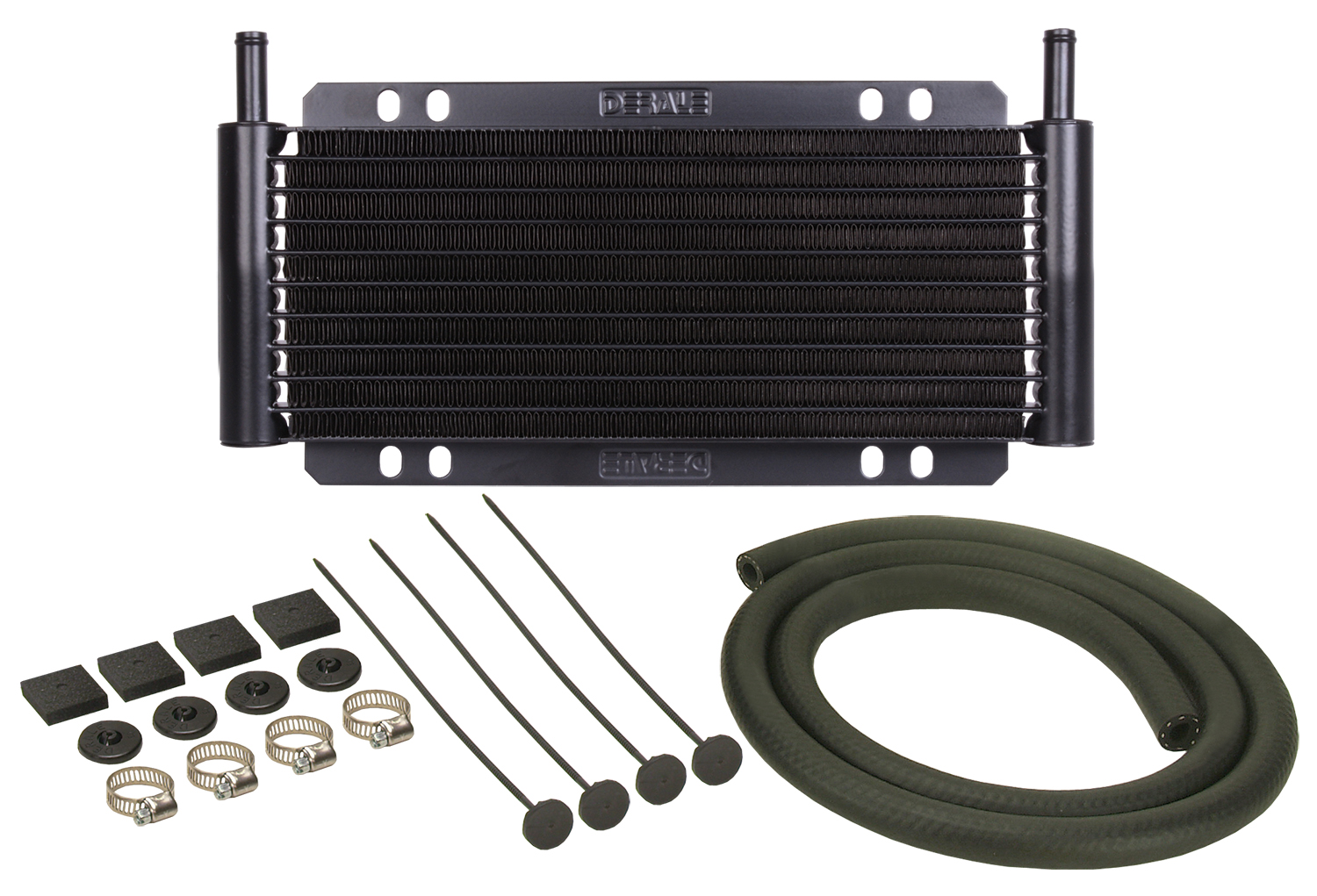

9 Row Series 8000 Plate & Fin Power Steering Cooler Kit
Description
A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop.
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Sturdy furnace-brazed aluminum construction
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
- 9 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 11/32" hose barb inlets
- BTU: 11500
- Complete hardware kit included
- Fluid Capacity: 2.5 oz.

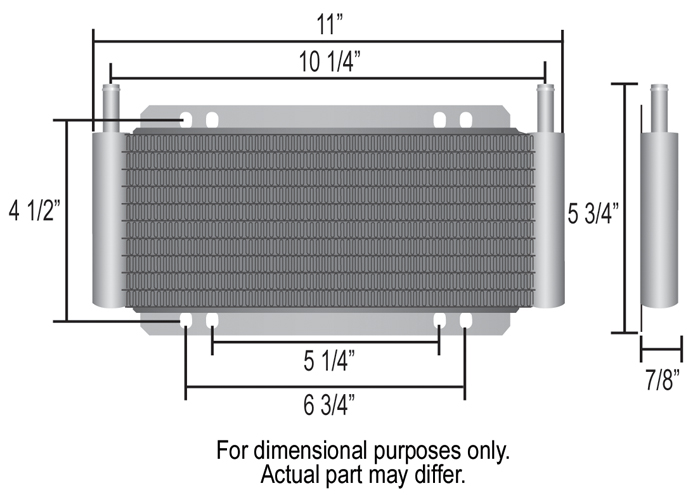

Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- BTU: 11500
- Width: 11"
- Height: 5-3/4"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 4-1/2"
- Hose size: 11/32"
- Hose length: 4'
