Part Number 33501

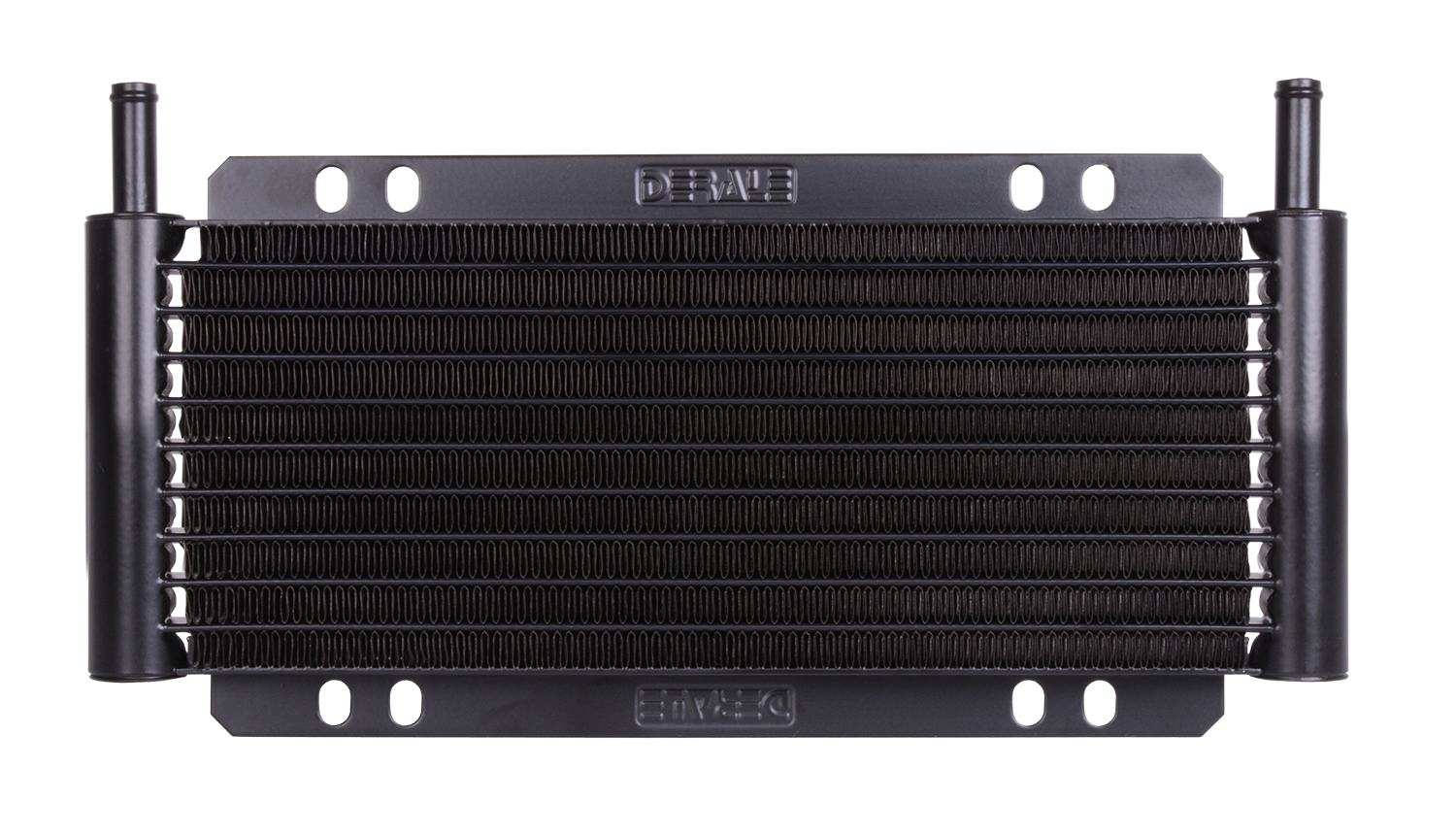

9 Row Series 8000 Plate & Fin Cooler
Description
A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This is a cooler only.
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
- 9 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 11/32" hose barb inlets
- 11500 BTU
- Fluid Capacity: 2.5 oz
- Cooler Only

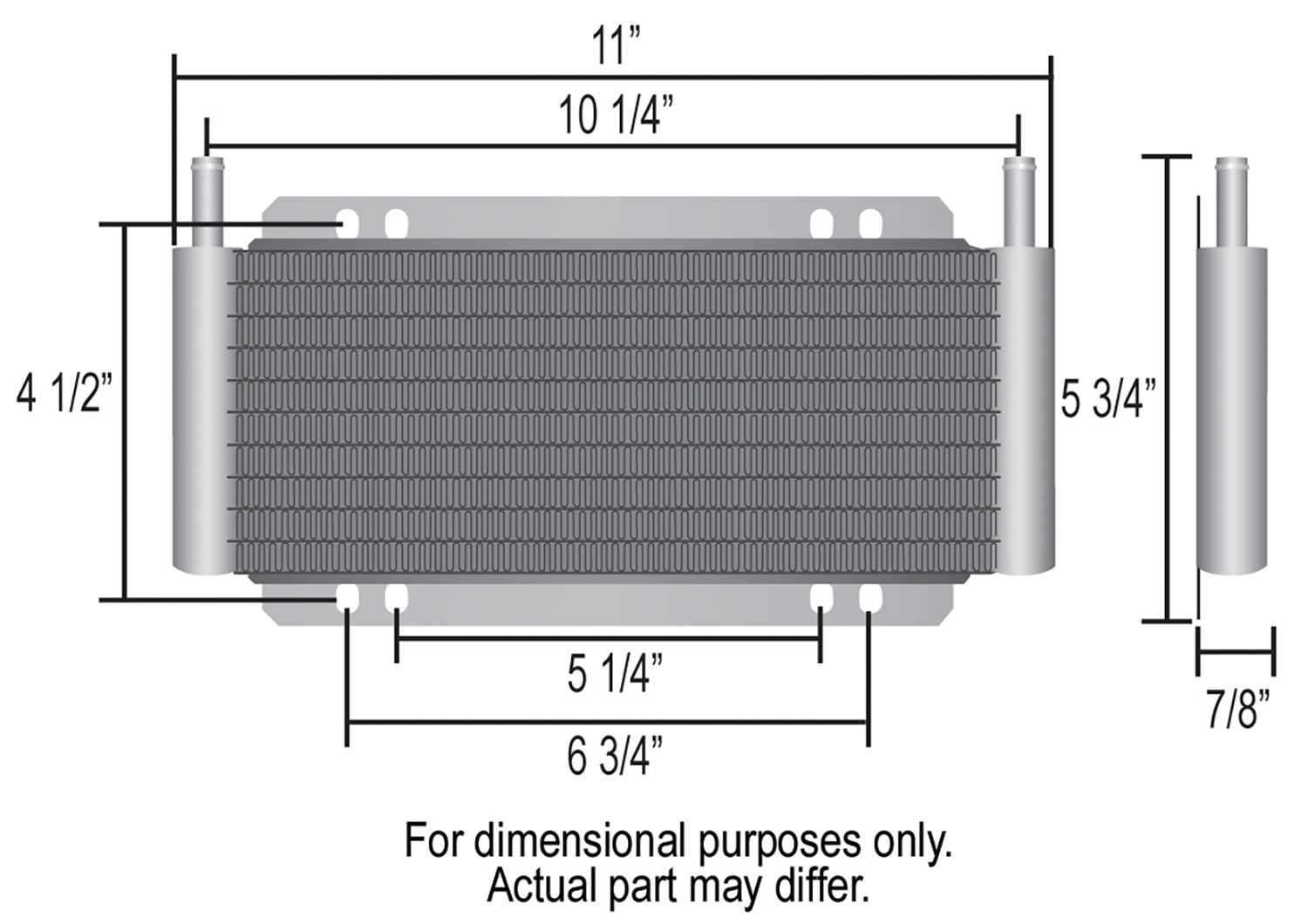

Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- 11500 BTU
- Width: 11"
- Height: 5-3/4"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 4-1/2"
