Part Number 33504

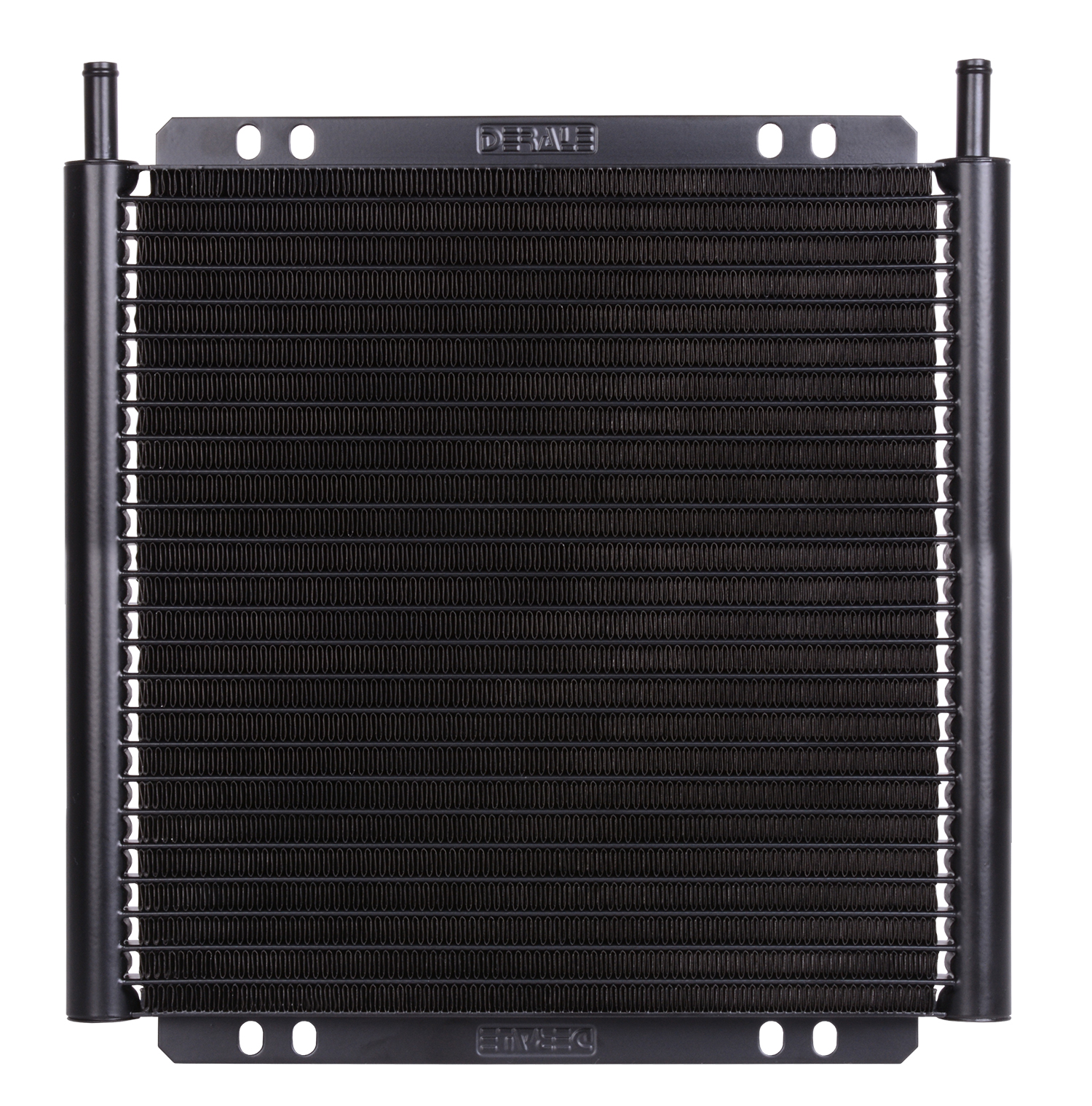

24 Row Series 8000 Plate & Fin Cooler
Description
A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for full size cars trucks and SUVs with medium to light-heavy duty use and consistent towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit is a cooler only.
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
- 24 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 11/32" hose barb inlets
- 23000 BTU
- Fluid Capacity: 8 oz
- Cooler Only

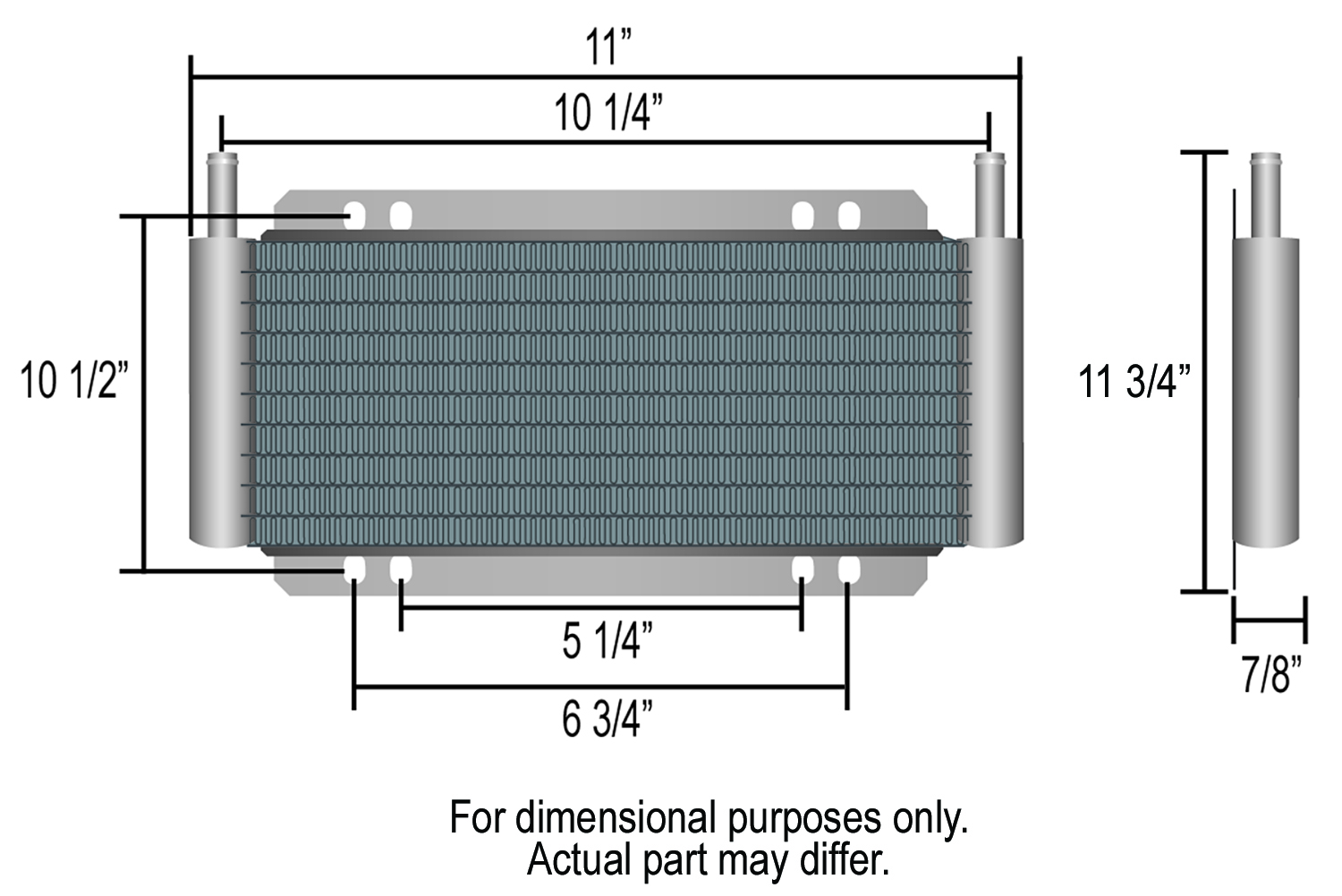

Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- 23000 BTU
- Width: 11"
- Height: 11-3/4"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 10-1/2"
