Part Number 33523

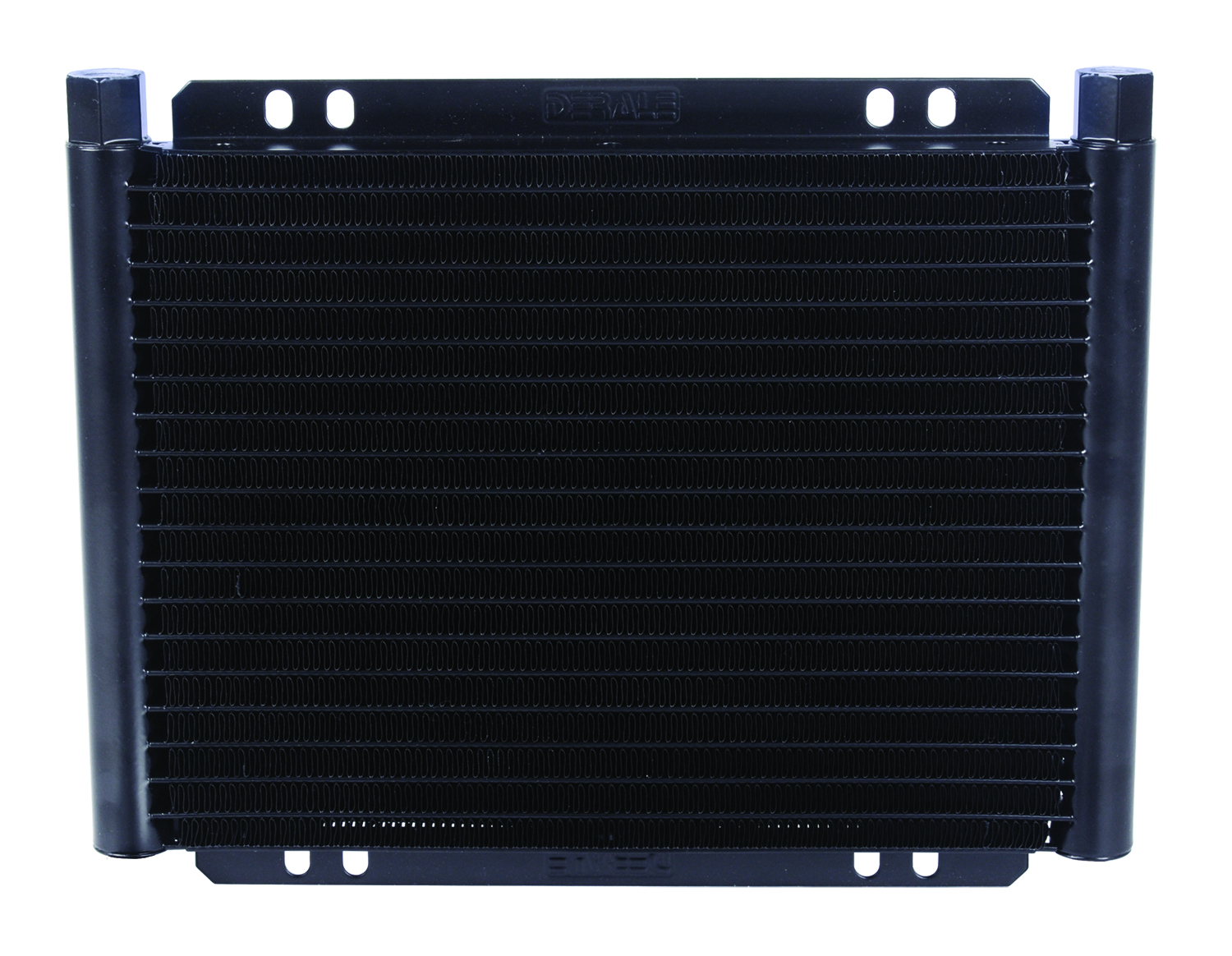

18 Row Series 8000 Plate & Fin Cooler with Inverted Flare Inlets

Description

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This is a cooler only.

Specifications
  • Cooler style: Plate & Fin
  • Construction: Aluminum
  • Inlet size: 1/2"-20 Inverted Flare
  • BTU: 20000

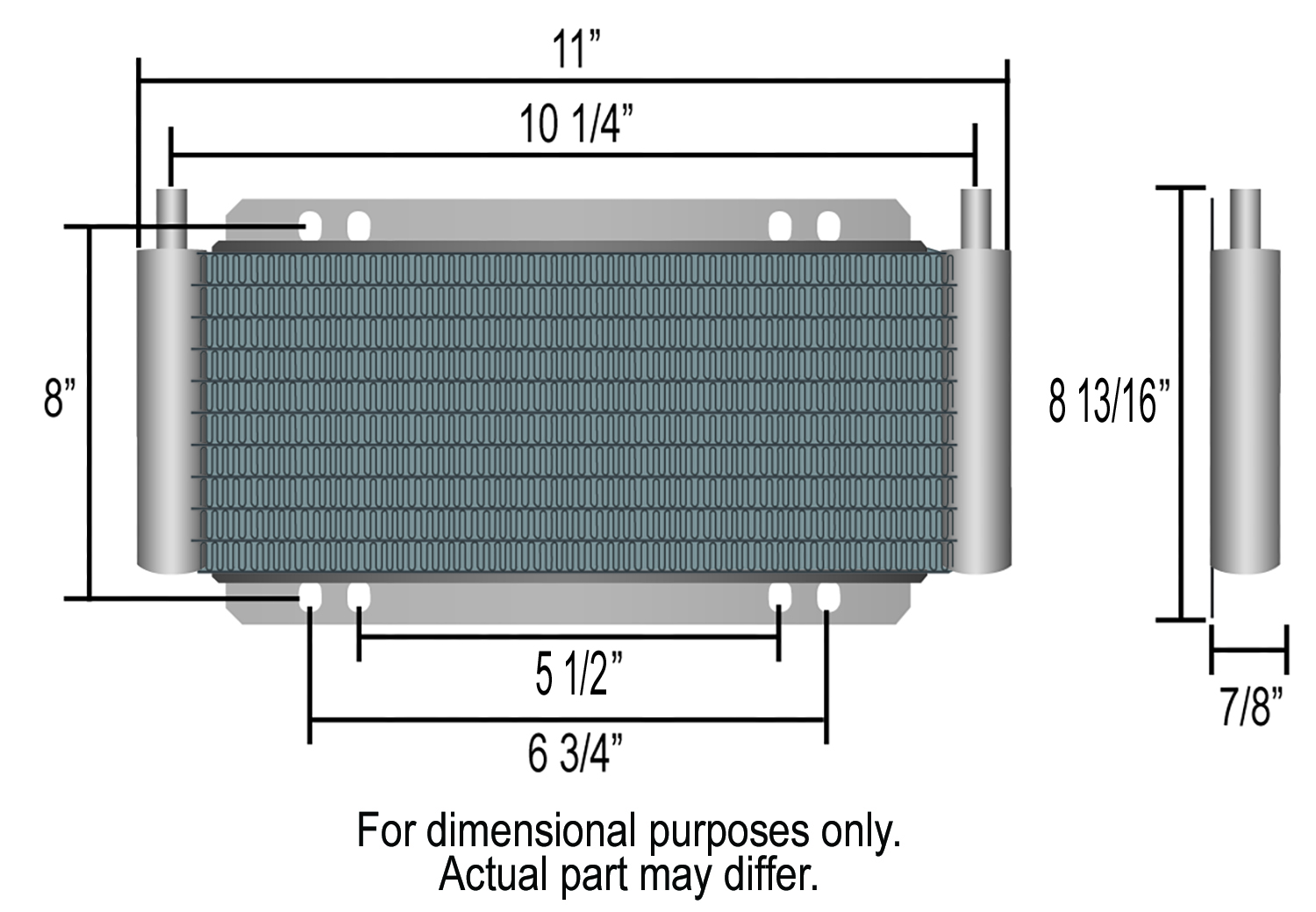

  • Width: 11"
  • Height: 8-13/16"
  • Depth: 7/8"
  • Inlet dim: 10-1/4"
  • Mounting: 6-3/4" x 8"
Features
  • Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
  • Improves transmission performance
  • Sturdy furnace-brazed aluminum construction
  • All Derale coolers are rated at 250psi working pressure and 300psi burst strength
  • 18 row cooler design
  • 3/4" embossed turbulators maximize cooling & minimize pressure drop
  • 20000 BTU
  • Fluid Capacity: 5.5 oz
  • Cooler Only
