Part Number 13503

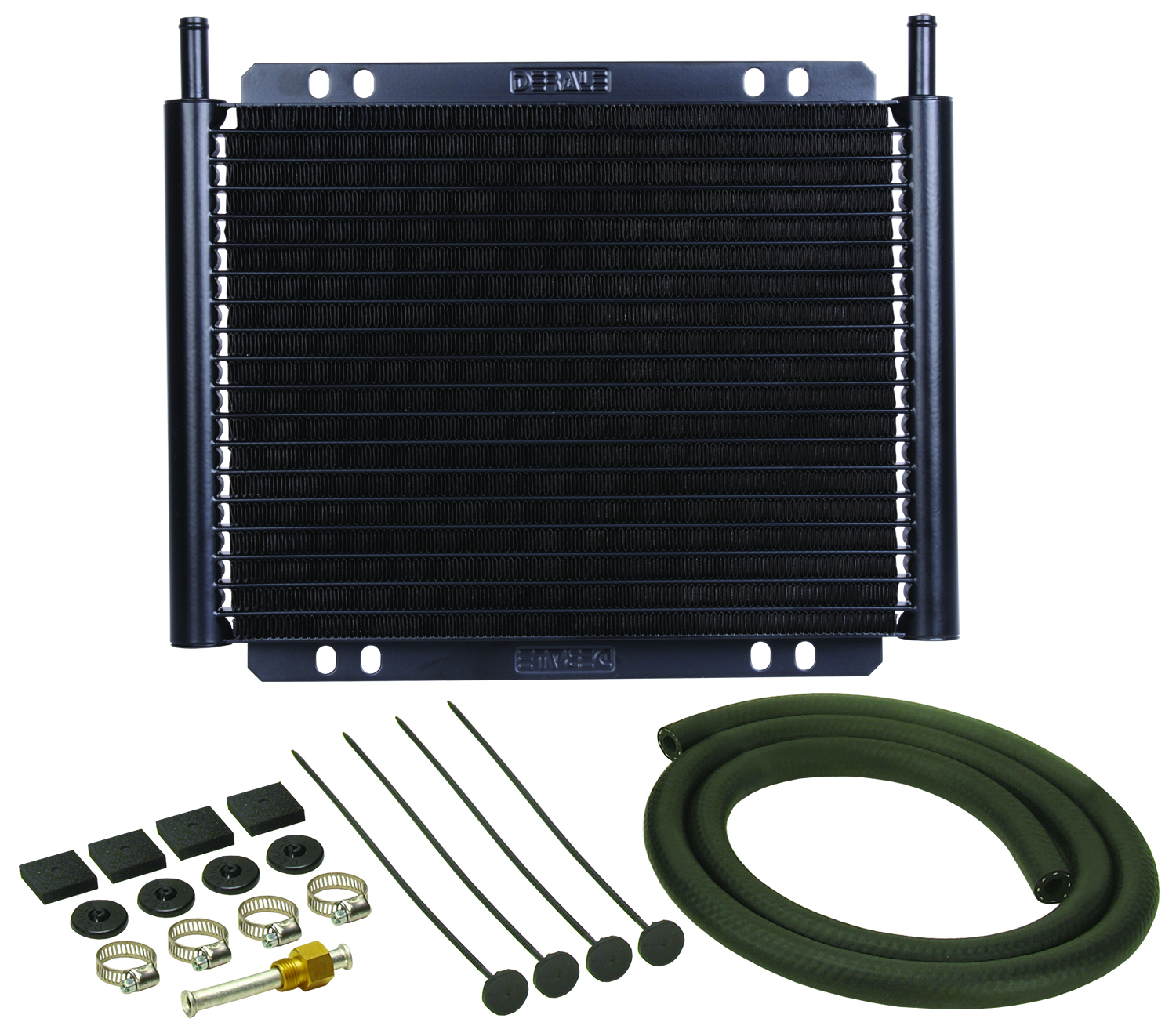

18 Row Series 8000 Plate & Fin Transmission Cooler Kit
Description
A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- BTU: 20000
- GVW: 20500

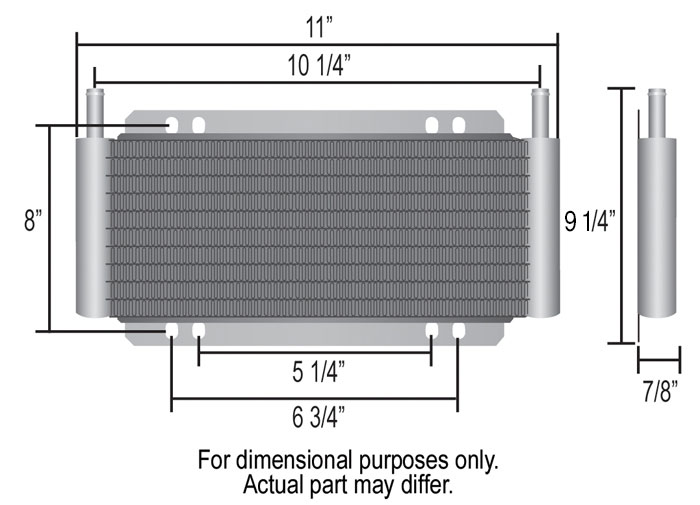

- Width: 11"
- Height: 9-1/4"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 8"
- Hose size: 11/32"
- Fluid Capacity: 5.5 oz
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
- 18 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- BTU: 20000
- GVW: 20500
- Hose length: 4'
- Complete hardware kit included
