Part Number 15405
13 Row Series 9000 Plate & Fin Engine Oil Cooler Kit with Sandwich Adapter
Description
A step up from the popular tube and fin design this aluminum plate and fin-based oil cooler kit not only reduces oil temperatures to help extend the life of lower end components and oil life, it also helps reduce coolant temperatures in the radiator and cooling system. This universal kit includes engine sandwich adapter, hose and everything you need to install on most passenger vehicles on the road today.
Specifications
- Cooler style: Plate & Fin
- Cooler construction: Aluminum
- BTU: 21000
- Cooler inlet size: 1/2" NPT
- Width: 9-3/4"
- Height: 8-7/16"
- Depth: 1-1/4"
- Inlet dim: 8-1/2"
- Mounting: 6-11/16" x 7-9/16"

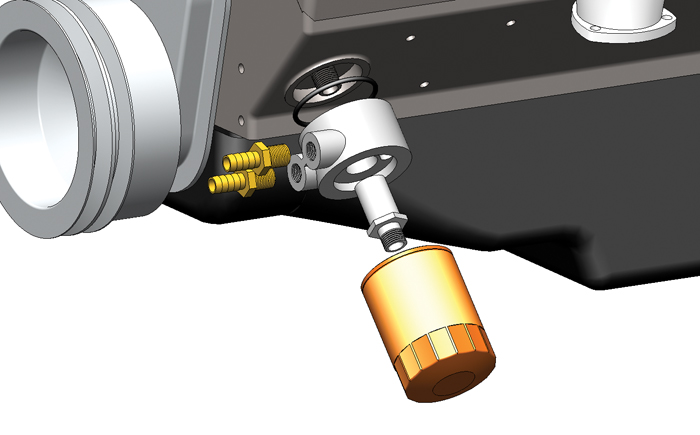

- Sandwich Adapter type: A
- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
- Adapter o-ring size: 2-3/4" or 3-1/2"
- Adapter thickness: 1-3/4" or 2-1/8"
- Adapter inlet size: 3/8" NPT
- Hose size: 1/2"
- Hose length: 10'
- Rated functional at 250psi working / 300psi burst strength
- 10oz. Additional Fluid Capacity
Features
- Can reduce engine oil temp up to 50°F
- Helps reduce coolant temperatures
- Extends engine life
- Heavy duty Plate & Fin style cooler
- Type A Sandwich Adapter fits most applications *see application guide for specific applications
- BTU: 21000

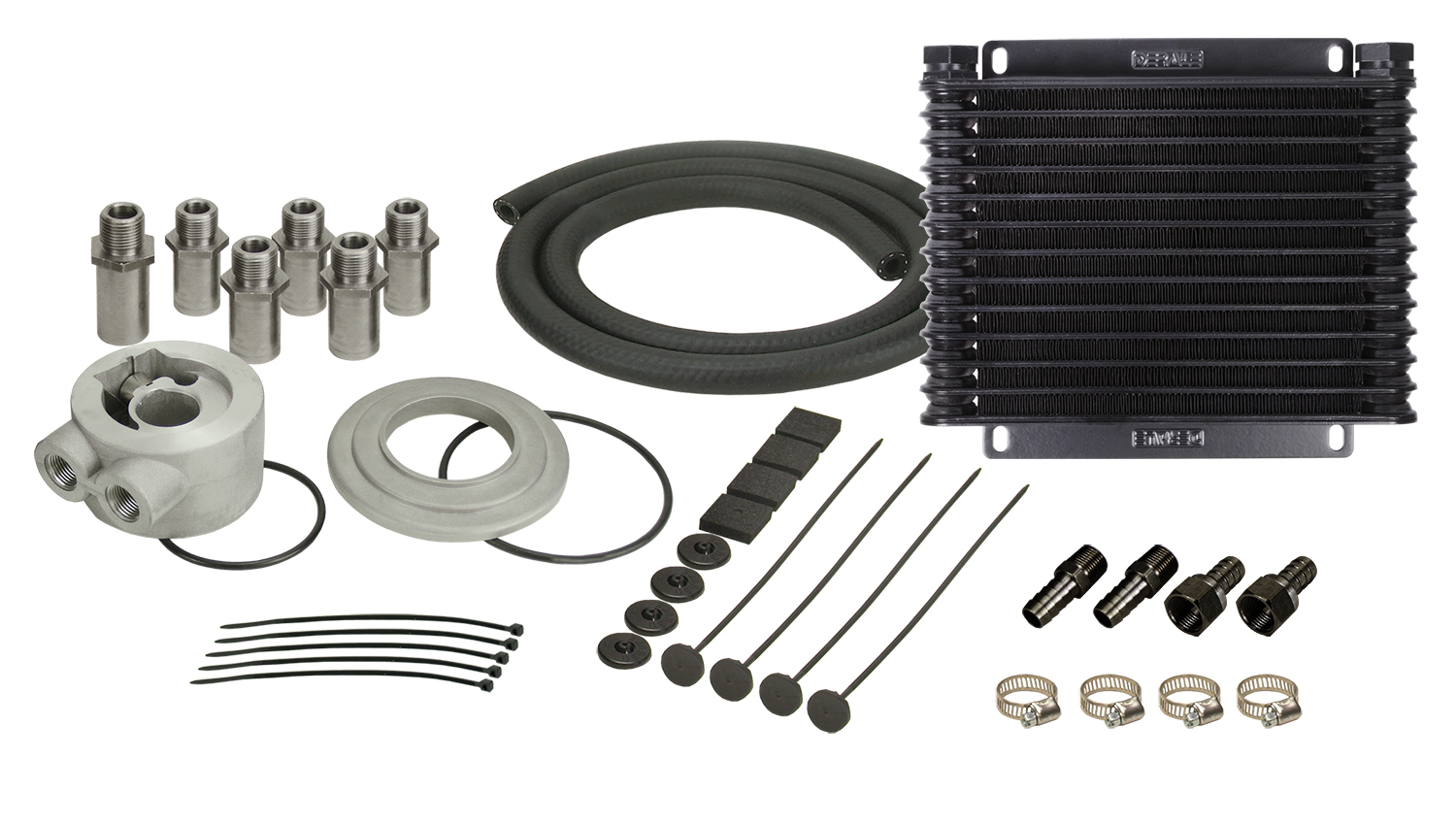

- Complete hardware kit included
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
