Part Number 15451
13 Row Plate & Fin Engine Oil Cooler Kit with Spin On Adapter
Description

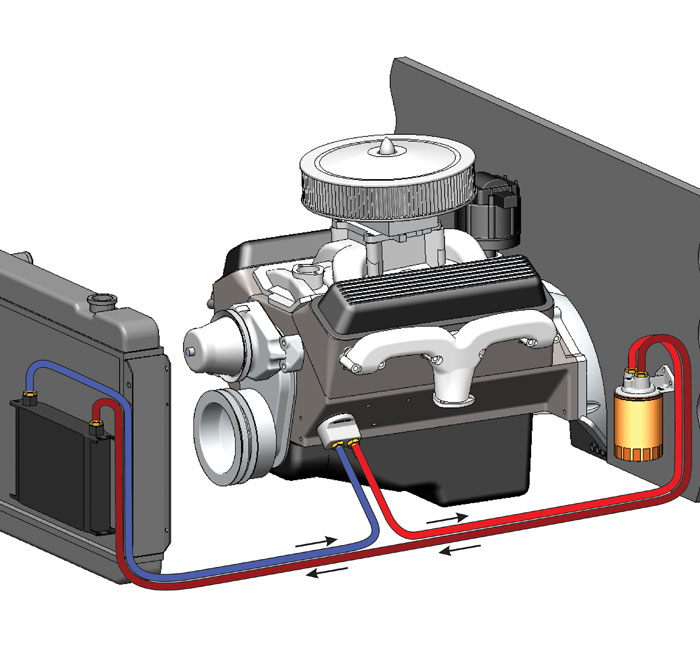

This kit not only includes an engine oil cooler but a remote oil filter mount. This aluminum plate and fin-based oil cooler kit reduces oil temperatures to help extend the life of lower end components and oil life. It can also help to reduce coolant temperatures. This universal kit comes with a complete installation kit to install easily on most vehicle engines. Filter mount uses Fram PH8A Oil Filter or equivalent.

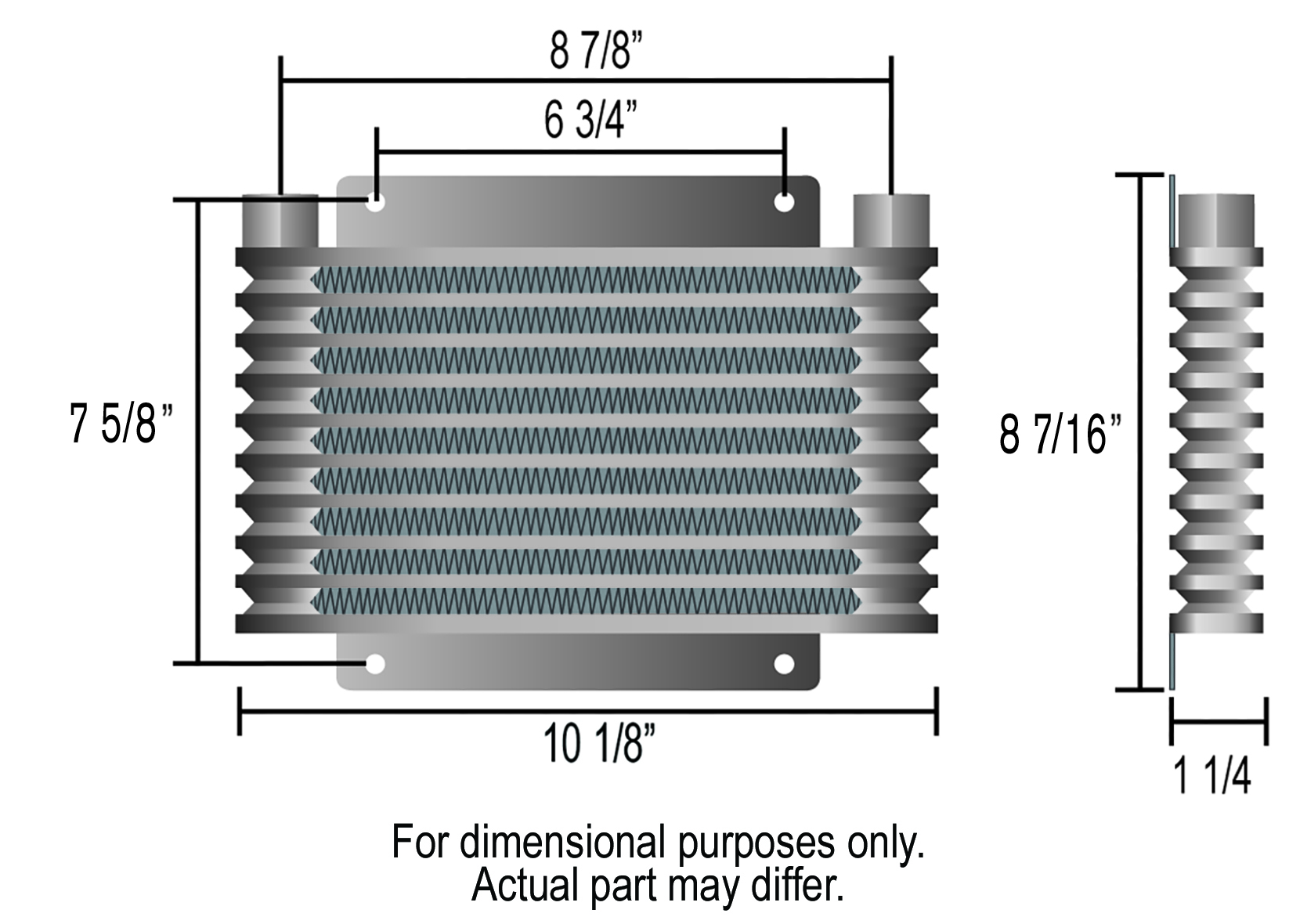

Specifications
- Cooler style: Plate & Fin
- Cooler construction: Aluminum
- BTU: 21000
- Cooler inlet size: -8AN
- Width: 9-3/4"
- Height: 8-7/16"
- Depth: 1-1/4"
- Inlet dim: 8-1/2"
- Mounting: 6-11/16" x 7-9/16"
- Spin-On Adapter type: J
- Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm

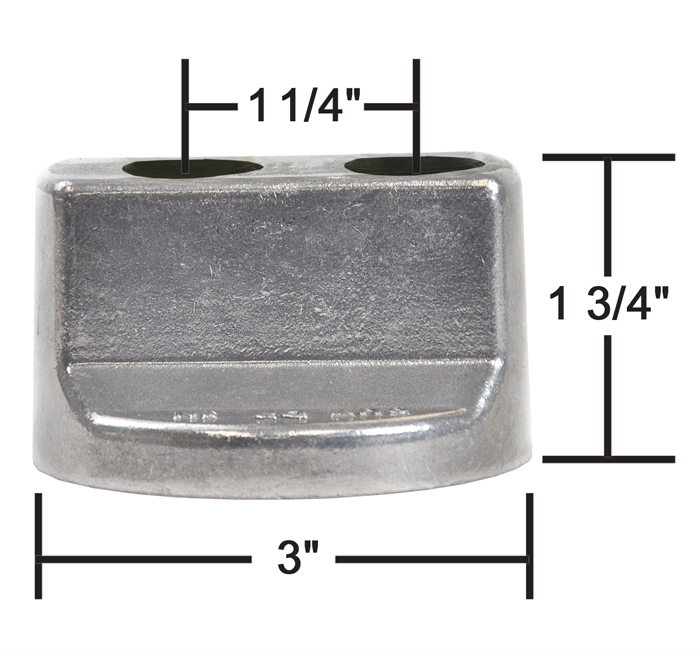

- Adapter thickness: 1-3/4" or 2"
- Adapter inlet size: 1/2" NPT
- Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"
- Remote filter thread size: 3/4"-16
- Remote filter inlet size: 1/2" NPT
- Hose size: 1/2"
- Hose length: 10'
- Rated functional at 250psi working / 300psi burst strength
- 10oz. Additional Fluid Capacity
Features
- Can reduce oil temperature up to 50°F
- Helps reduce coolant temperature
- Extends engine life

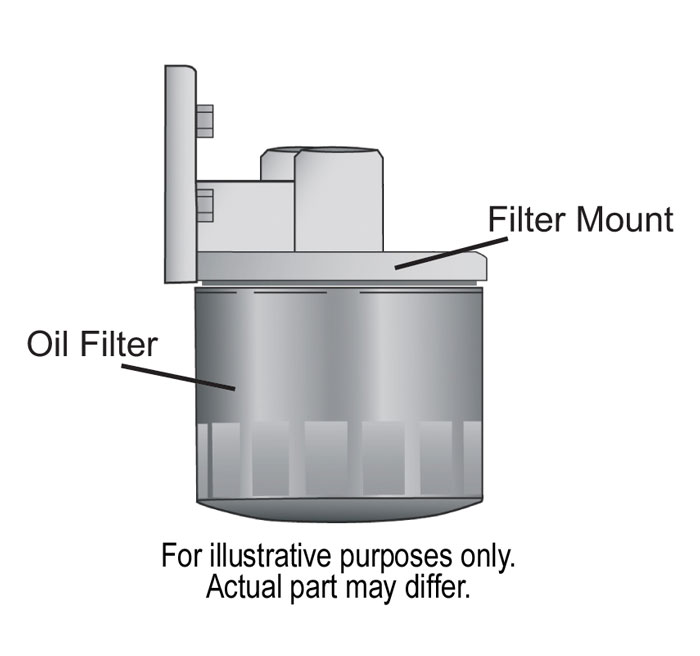

- Includes ports-up filter mount (Fram PH8A equivalent filters)
- Heavy duty Plate & Fin style cooler

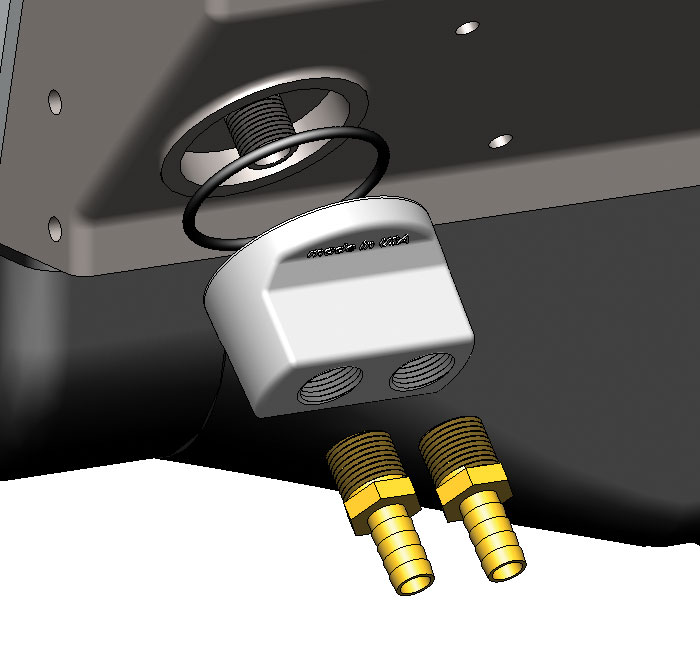

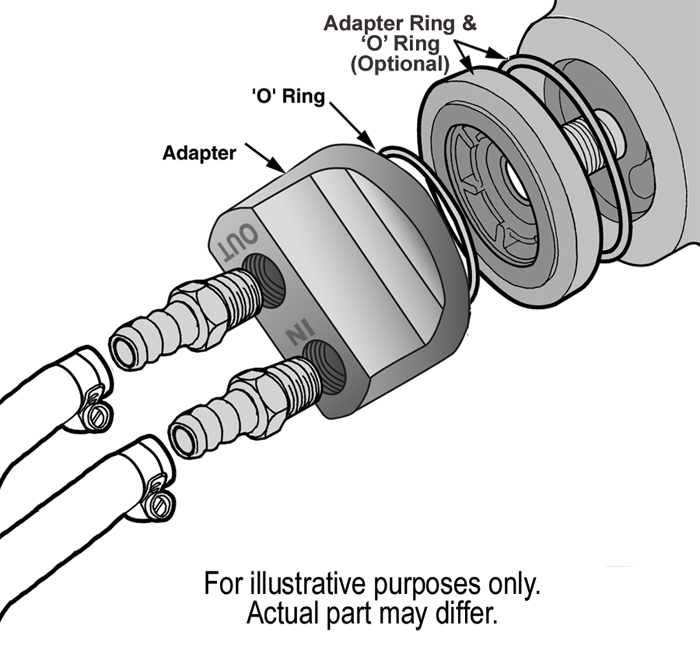

- Type J Spin-On Adapter fits most applications *see application guide for specific applications
- BTU: 21000

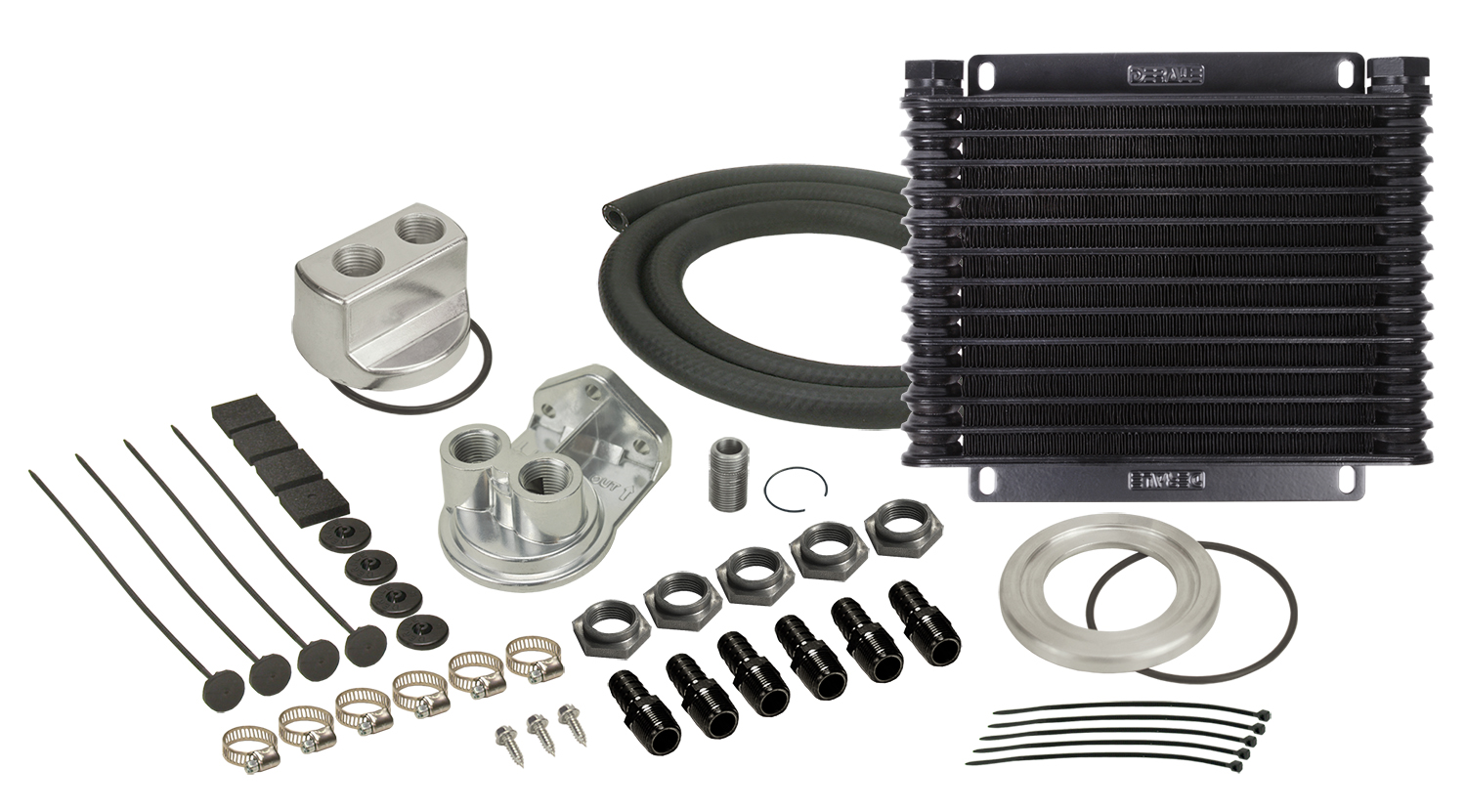

- Complete hardware kit included
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
