Part Number 13611
5 Row Series 9000 Plate & Fin Transmission Cooler Kit
Description

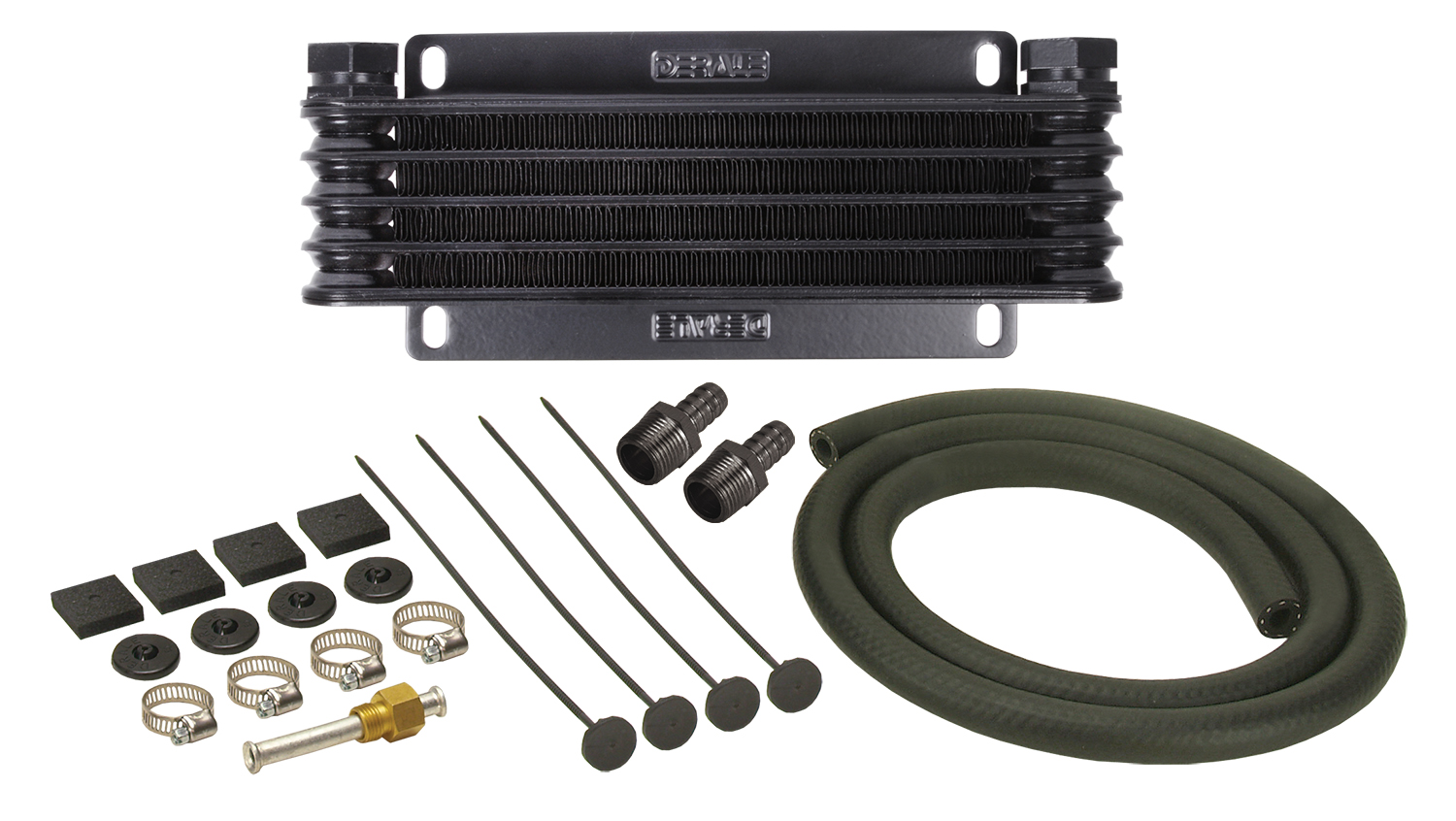

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" FTP female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction tested to 250 p.s.i.
- 5 row cooler design
- 1-1/4" turbulators maximize cooling & minimize pressure drop
- 1/2" NPT x 3/8" hose barb adapters included
- GVW: 16000
- BTU: 12500
- Fluid Capacity: 3 oz.
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- GVW: 16000
- BTU: 12500
- Inlet size: 1/2" FTP female
- Fitting size: 3/8" barb

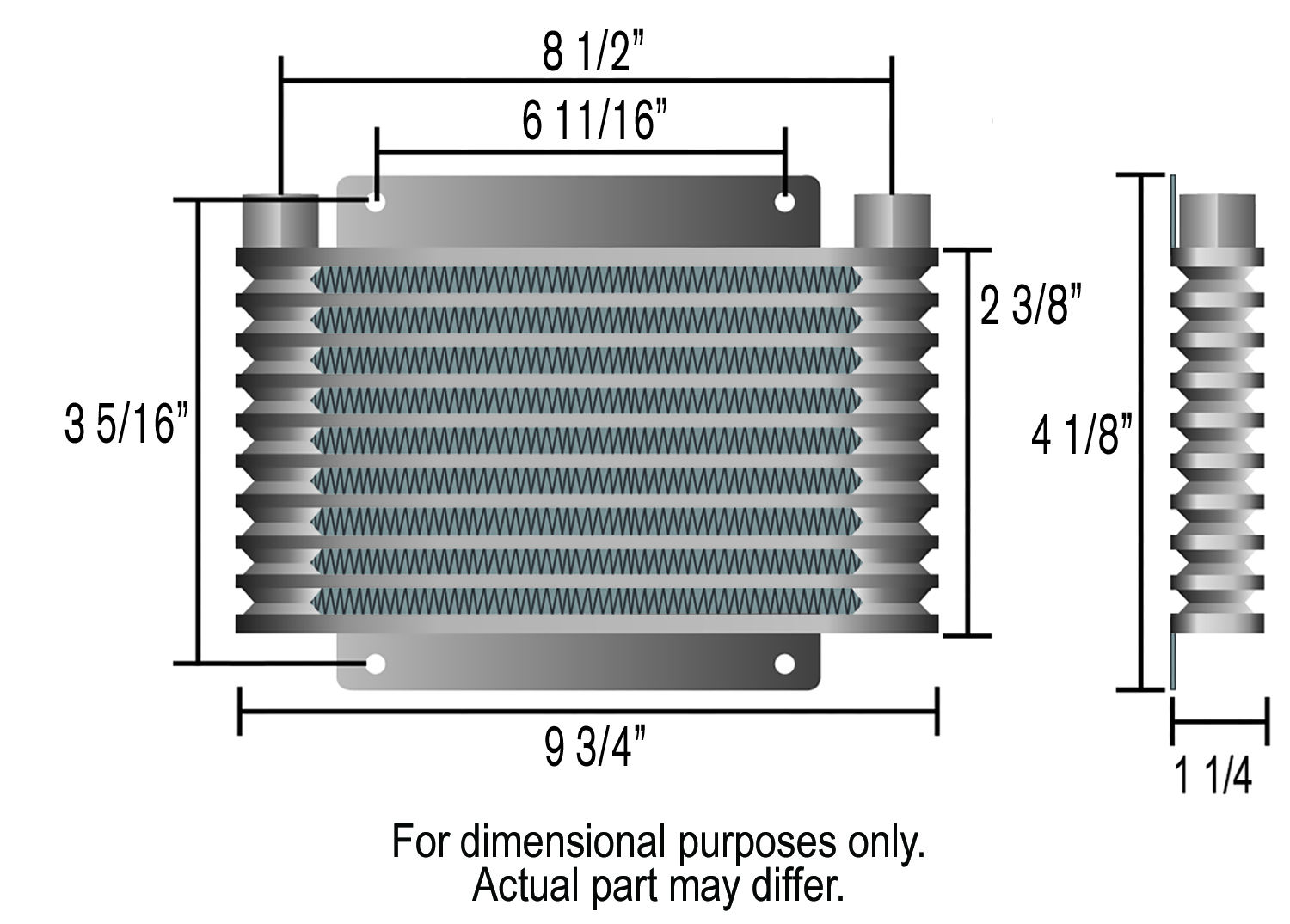

- Width: 9-3/4"
- Height: 4-1/8"
- Depth: 1-1/4"
- Inlet dim: 8-1/2"
- Mounting: 6-11/16" x 3-5/16"
- Hose size: 3/8"
- Hose length: 4'
