Part Number 33633

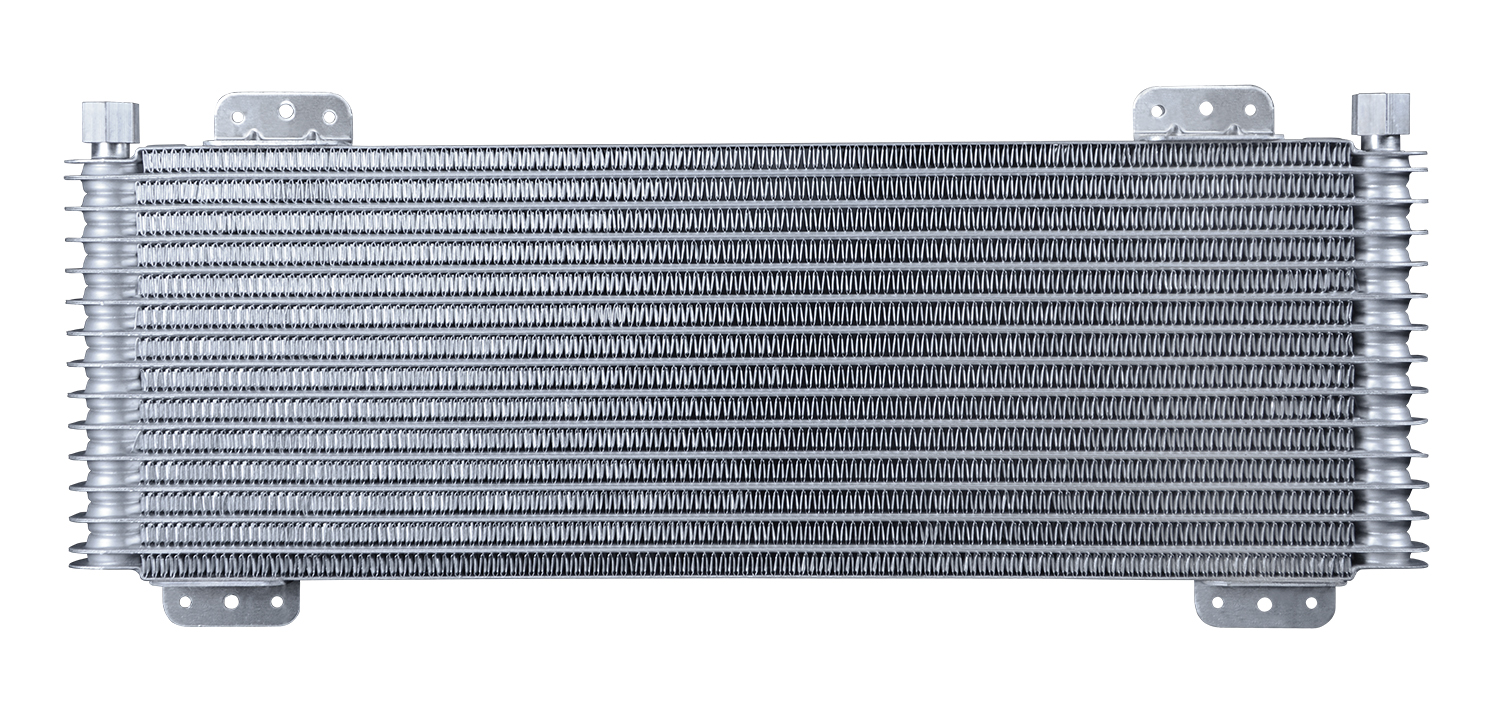

13 Row Series 9500 Plate & Fin Cooler

Description

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers feature strong furnace-brazed construction embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 5/8" Inverted Flare Inlets.

Features
  • Prevents heat related failures
  • Sturdy furnace-brazed aluminum construction
  • 13 row cooler design
  • Turbulators maximize cooling & minimize pressure drop
  • 3/8" hose barb adapters included
  • BTU: 33000
  • Fluid Capacity: 20 oz.
  • All Derale coolers are rated at 250psi working pressure and 300psi burst strength
Specifications
  • Cooler style: Plate & Fin
  • Construction: Aluminum
  • BTU: 33000
  • Inlet size: 5/8" inverted flare female inlets

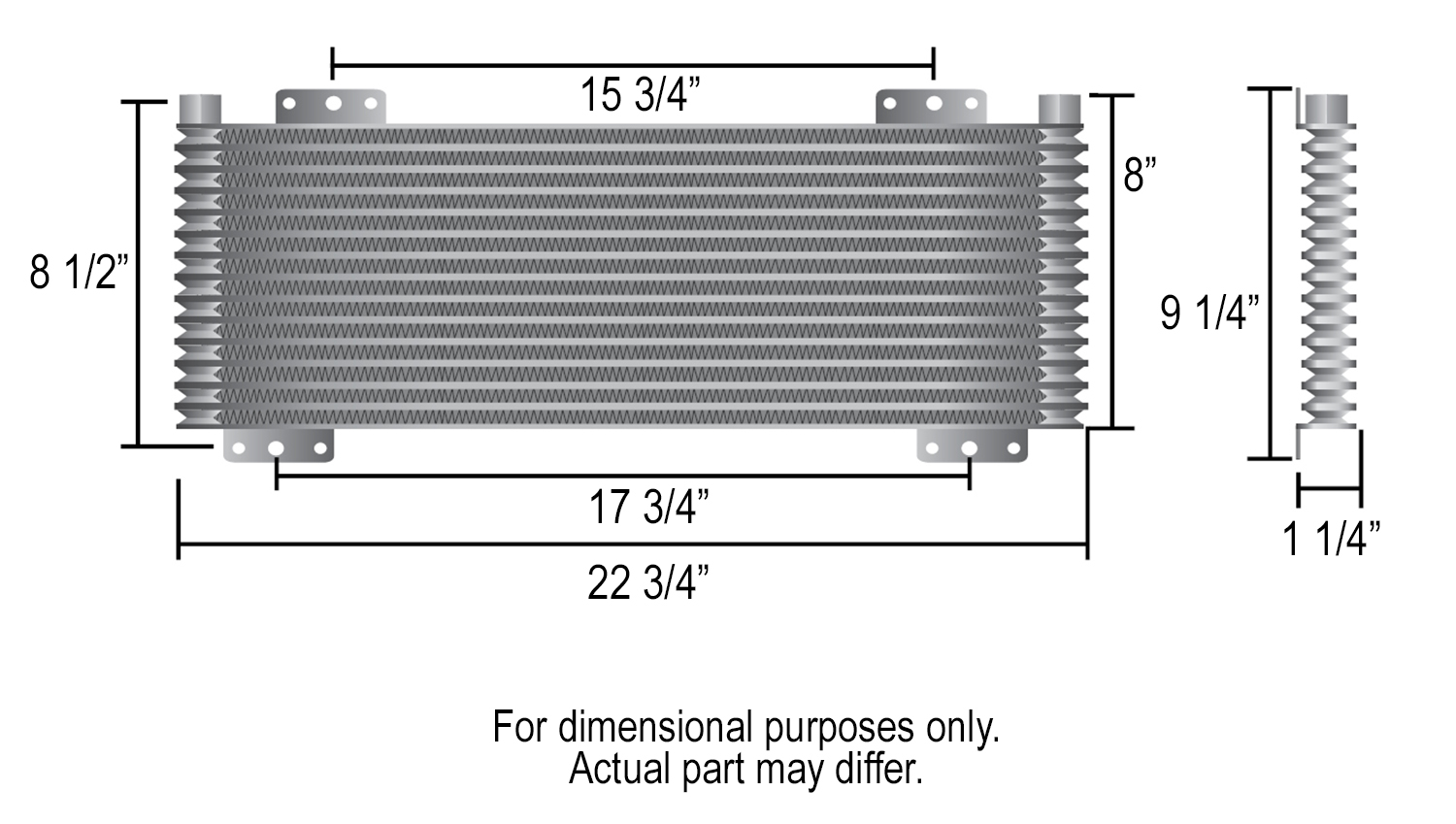

  • Width: 22-3/4"
  • Height: 8"
  • Overall Height (with brackets and inlets): 9-1/4"
  • Depth: 1-1/4"
  • Inlet to Inlet dim: 21-3/8"
  • Mounting: 15-3/4", 17-3/4", 8-1/2"
  • Hose size: 3/8"
  • Hose length: 4'
