Part Number 13223
2 Pass 13" Series 7000 Copper/Aluminum Frame Rail Cooler
Description

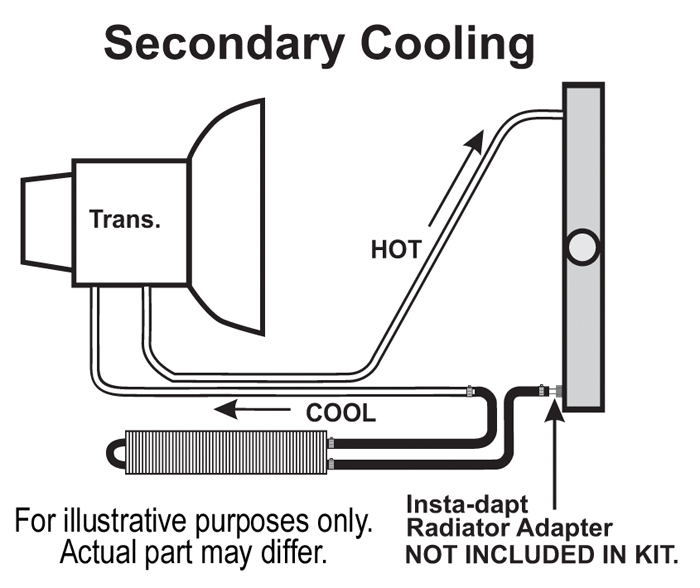

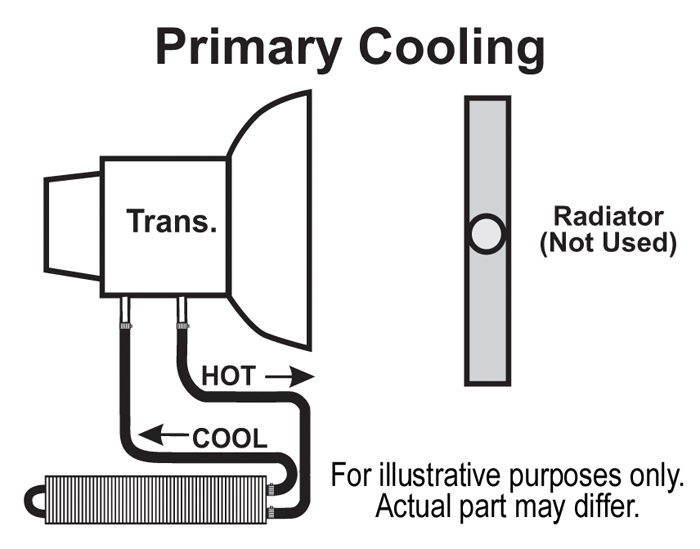

With the same 1/2" copper tubing expanded into aluminum cooling fins, this cooler uses a slim design to enable frame mounting in limited space applications. It includes -6AN inlets and can be used as a transmission cooler, power steering or fuel cooler with equal efficiency. Includes mounting hardware only.
Features
- Extruded plastic cooling fin guards
- 2 pass cooler design
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
- Hardware kit included
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
- Fluid Capacity: 2.5 oz.
- Hardware kit included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN male

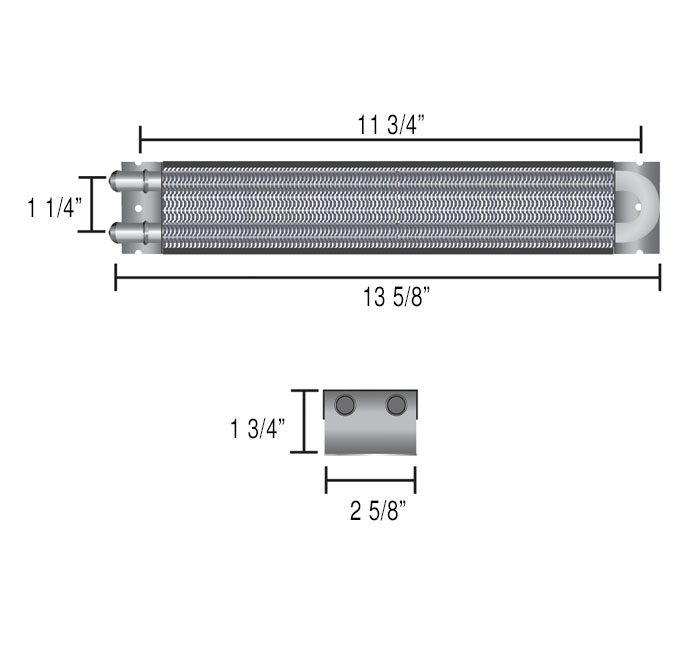

- Length: 13-5/8"
- Width: 2-5/8"
- Depth: 1-3/4"
- Inlet dim: 1-1/4"
- Core Length: 9-7/8"
- Mounting: 11-3/4"
