Part Number 13224

2 Pass 24" Series 7000 Copper/Aluminum Frame Rail Transmission Cooler

Description

With the same 1/2" copper tubing expanded into aluminum cooling fins, this cooler uses a slim design to enable frame mounting in limited space applications. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines. Perfect for light-duty use and occasional light towing.

Features
  • Prevents heat related transmission failures
  • Extends life of transmission
  • Improves transmission performance
  • Extruded plastic cooling fin guards
  • 2 pass cooler design
  • 1/2" copper tubing expanded into aluminum cooling fins
  • 11/32" hose barb inlets
  • Fluid Capacity: 4.5 oz.
  • Complete hardware kit included

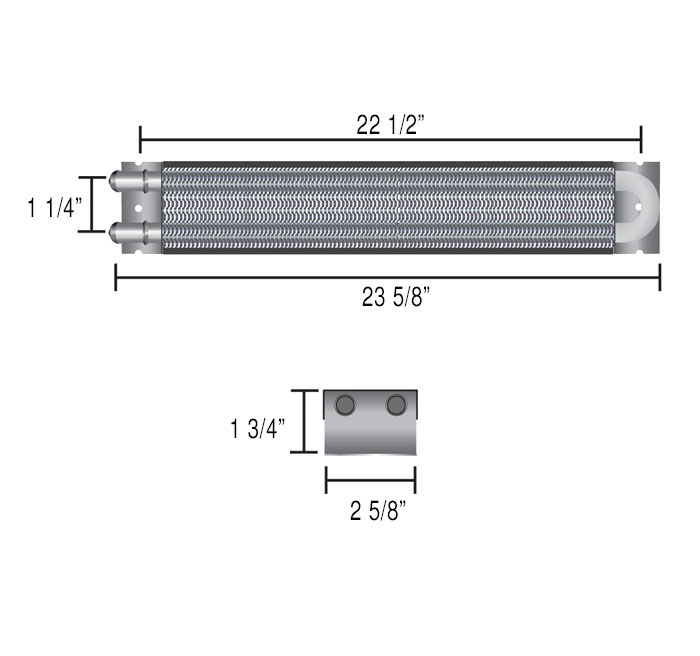

Specifications
  • Cooler style: Tube & Fin
  • Construction: Copper tube and aluminum fin
  • Inlet size: 11/32" barb
  • Length: 23-5/8"
  • Width: 2-5/8"
  • Depth: 1-3/4"
  • Inlet dim: 1-1/4"
  • Mounting: 22-1/2"
  • Core Length: 20-3/4"
  • Hose size: 11/32"
  • Hose length: 4'
