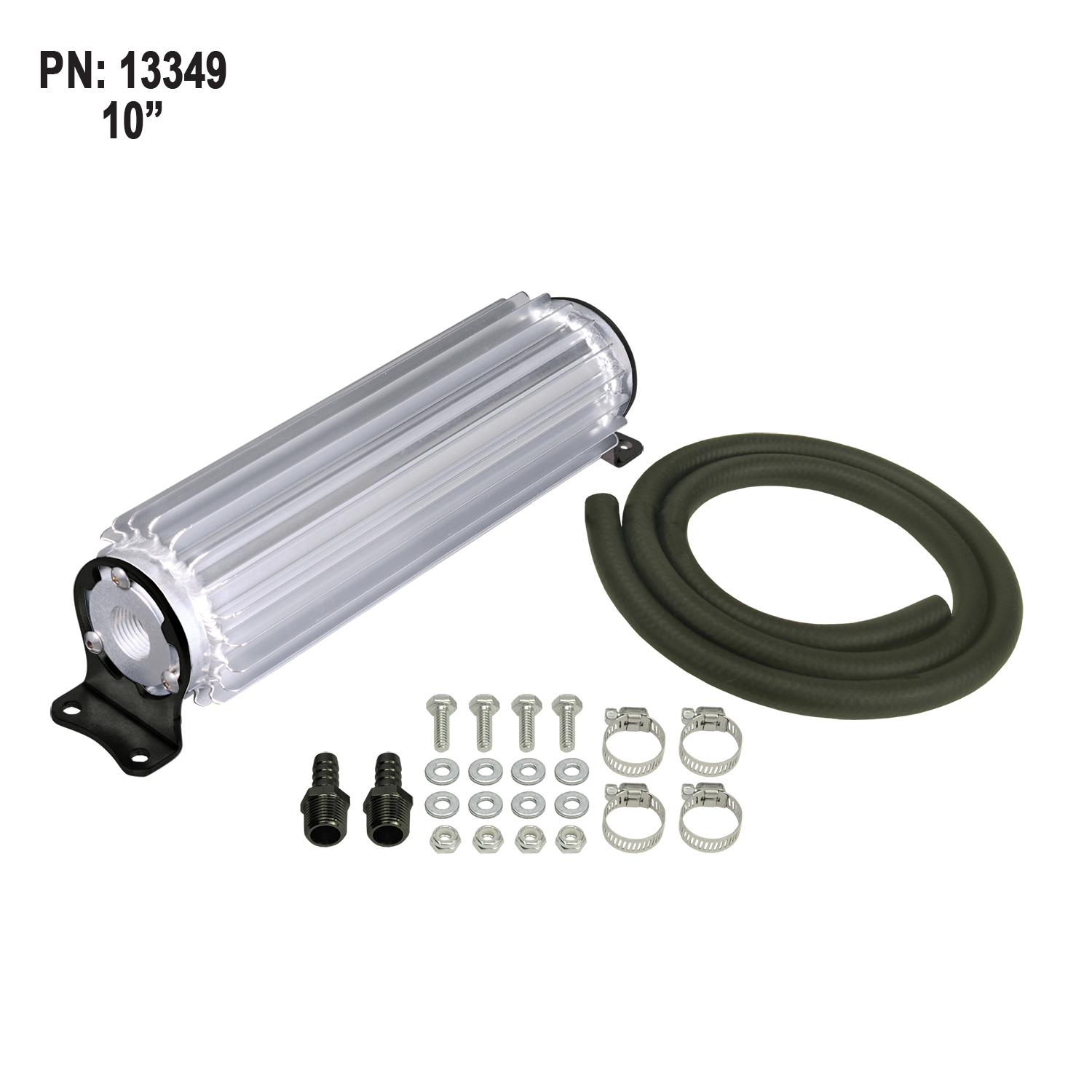

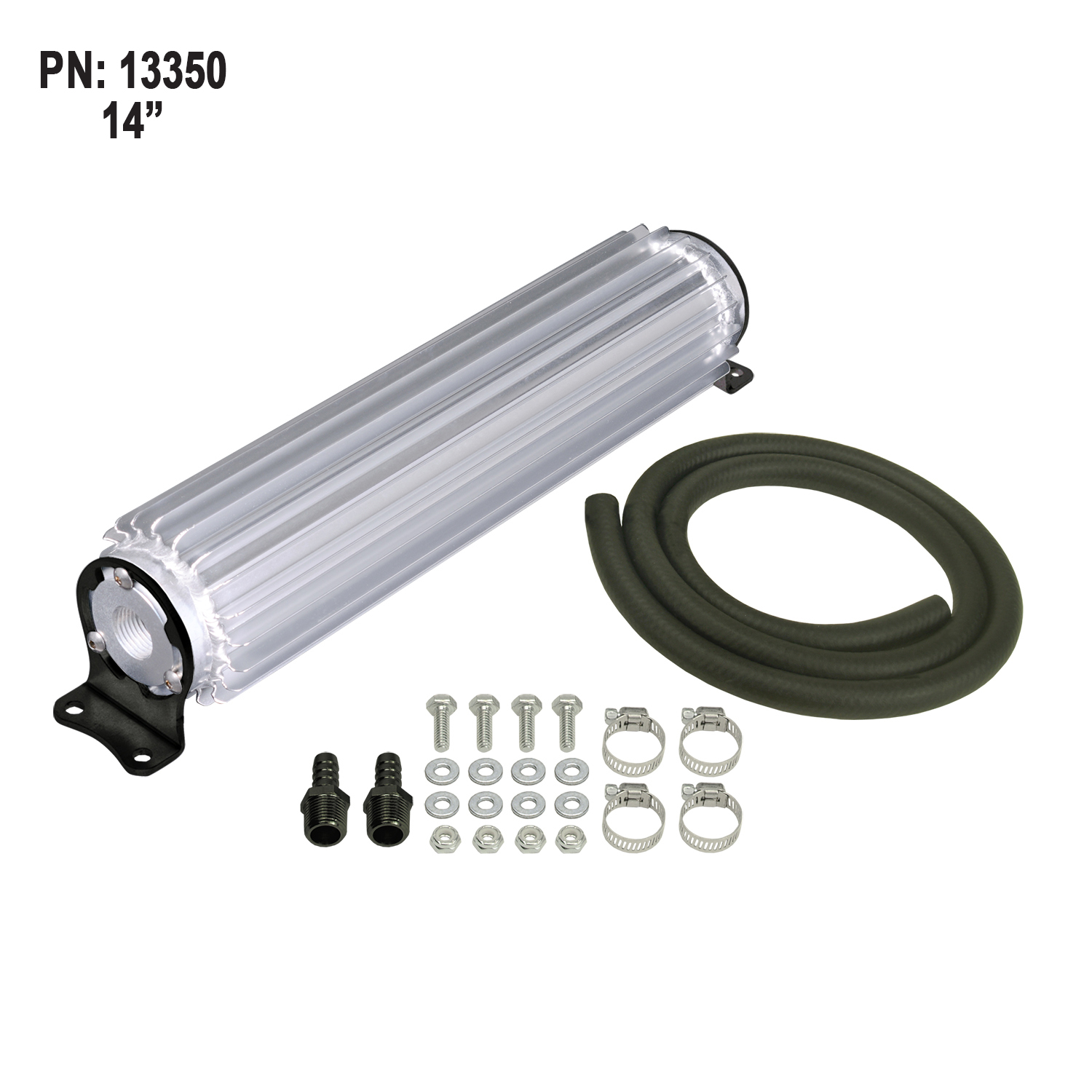

Part Number 13349 & 13350
10'' & 14'' Single Pass Heat Sink Cooler
Description
Heat sink cooler assemblies have removable brackets that allow the cooler to be clocked for easier installation. These Single-pass Heat Sink coolers use both external and internal fins to maximize heat transfer. With a 3" diameter it can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. With their sleek 3” diameter they can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. Clear Anodized coolers are perfect for power steering applications.

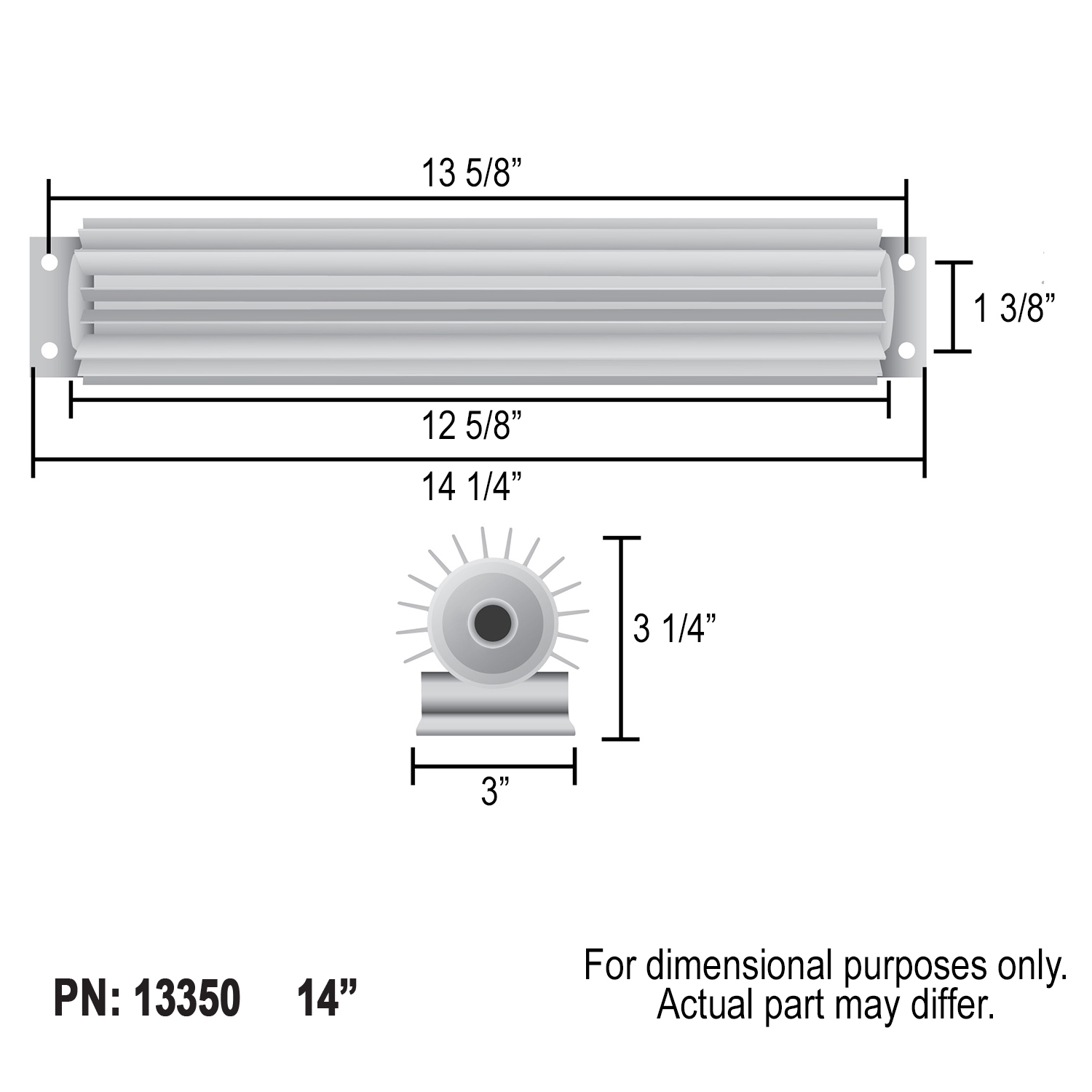

| Length | Part Number | Core Length | Mounting | Fluid Capacity |
| 10-1/4" | 13349 | 8 5/8" | 9-5/8" x 1-3/8" | 10 ounces |
| 14-1/4" | 13350 | 12 5/8" | 13-5/8" x 1-3/8" | 14 ounces |
Specifications
- Cooler style: Heat Sink
- Construction: Aluminum
- Inlet size: Single 1/2" NPT
- Fitting size: 3/8" barb
- Length: 10-1/4"
- Core Length: 8-5/8"
- Height: 3-1/4"
- Width: 3"
- Mounting: 9-5/8" x 1-3/8"
- Capacity: 10 ounces
Features
- Aluminum heat sink design Features internal and external heat dissipating fins for high heat transfer
- Stamped Turbulator has been added for increased efficiency
- Removable brackets allow cooler to be clocked
- Clear anodized finish
- Brackets are black anodized

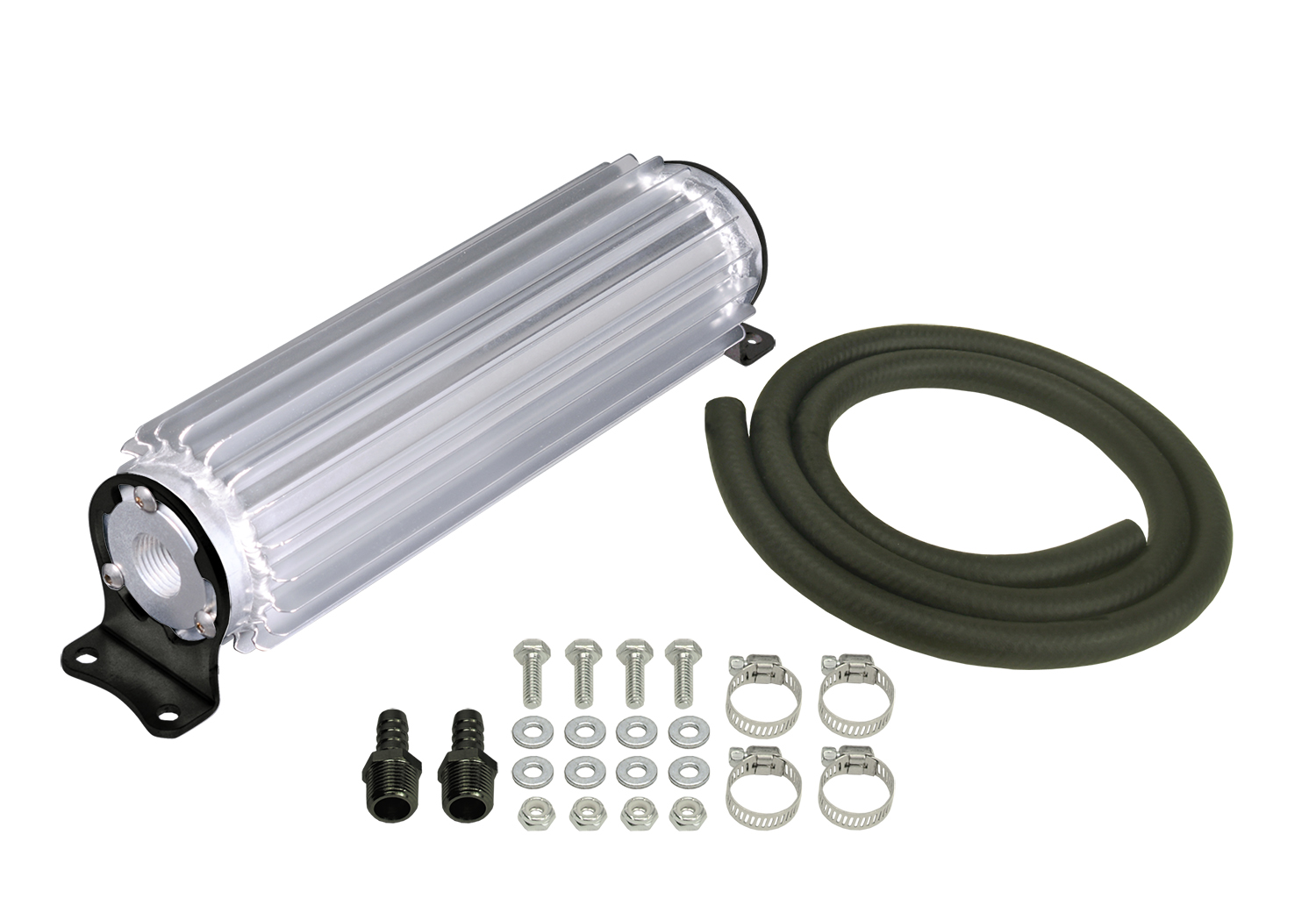

- Hardware kit includes aluminum hose barbs fittings
- Compact 3" diameter to fit most frame rails
- Single pass cooler design
- 1/2" NPT inlets
- 3/8" hose barb fittings included
- 4' of 11/32" hose
- All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength
