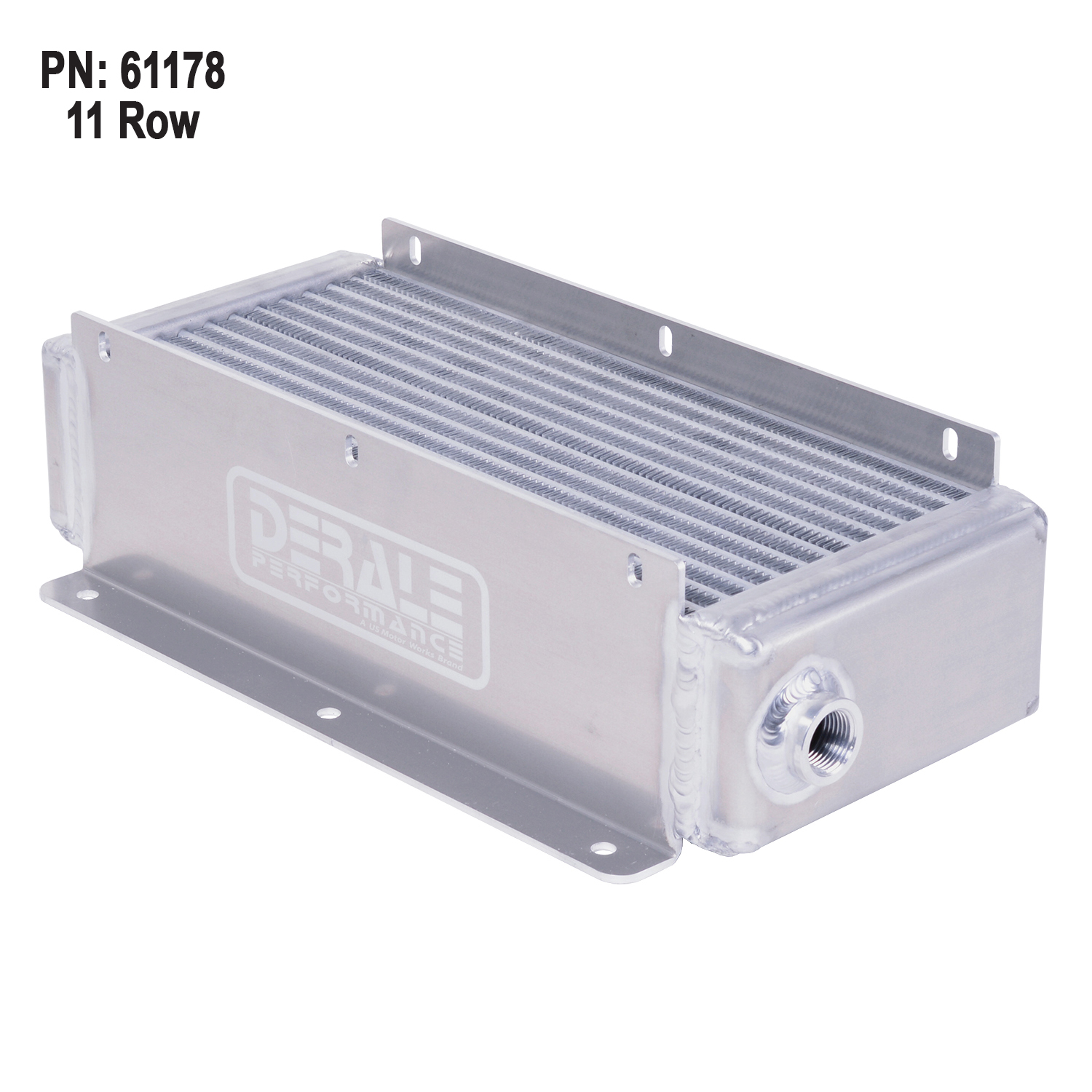

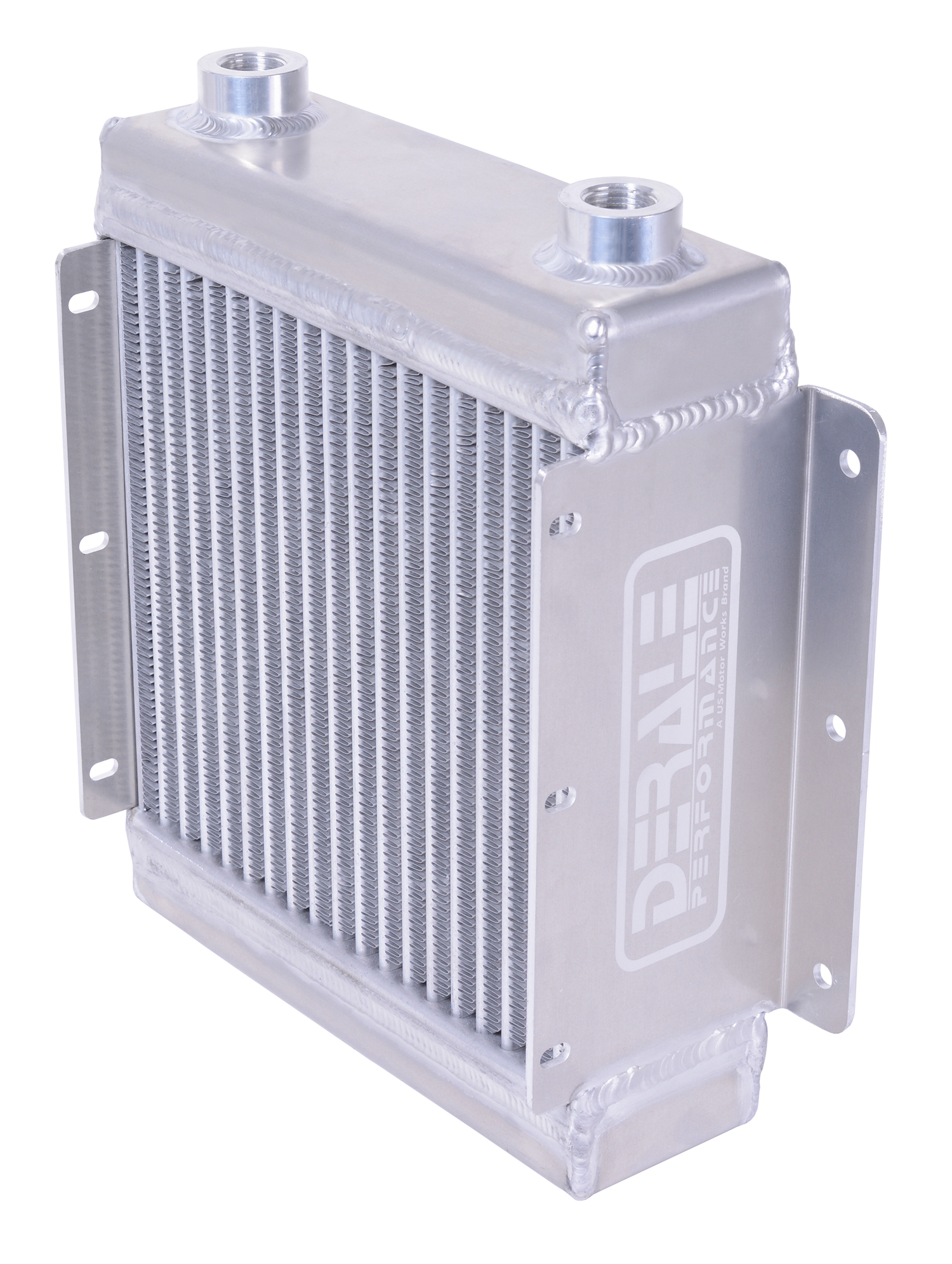

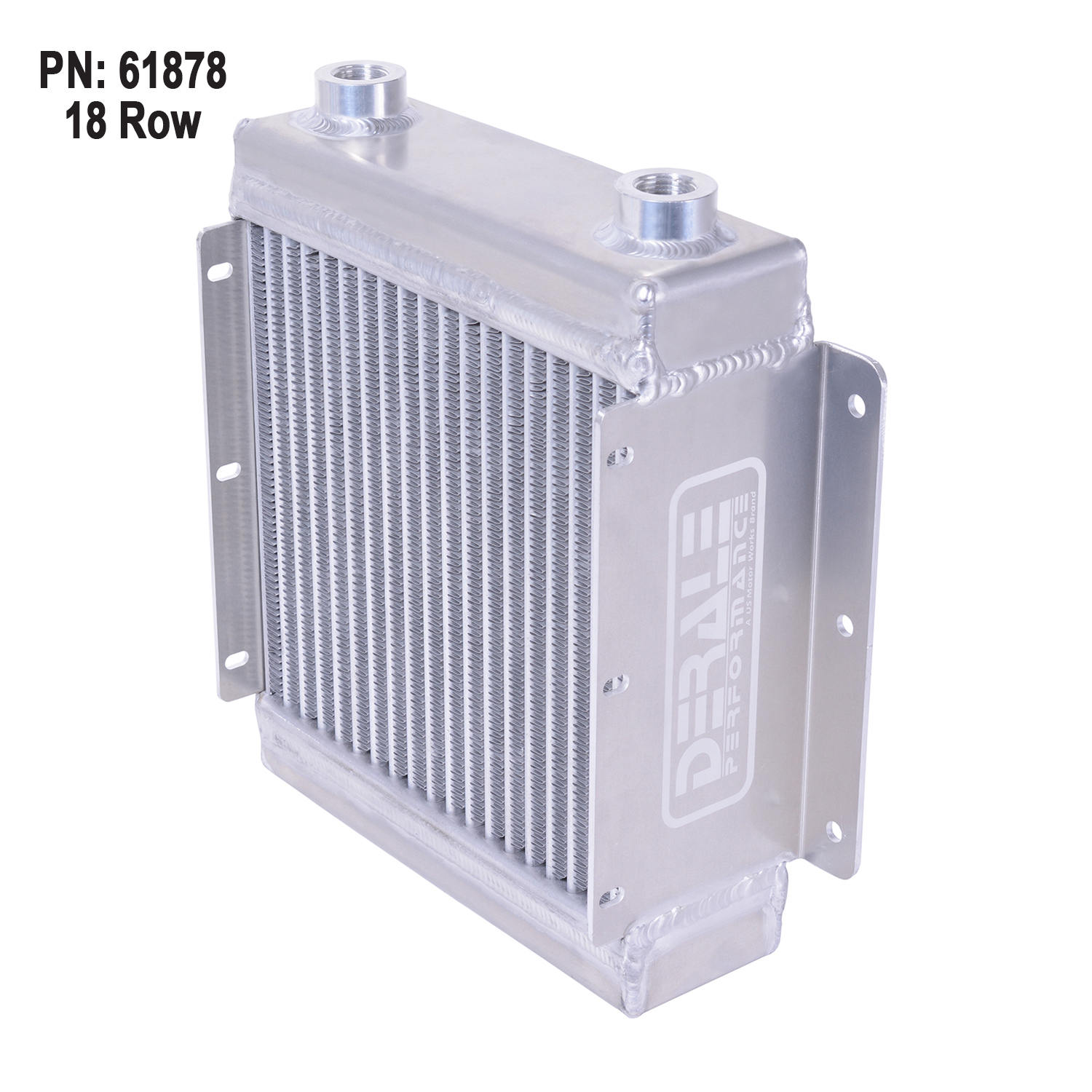

Part Number 61178 & 61878

11 or 18 Row Hi-Flow Fluid Racing Coolers, 7/8-14 O-ring

Description

These Hi-Flow Racing Coolers are precision TIG welded and feature the most efficient tube design in the aftermarket, which supports up to 350 PSI with minimal pressure drop. Perfect for everything from Drag racing to Off-Road. Available in 11 Row and 18 Row Designs.



Part Number
Row

Width

Height

Depth
Fluid
Capacity
BTU's
Per Hour
61178 11 15" 8 1/4" 4 1/4" 33 oz. 95,000
61878 18 11 7/8" 12 3/8" 4 1/4" 47 oz. 125,000

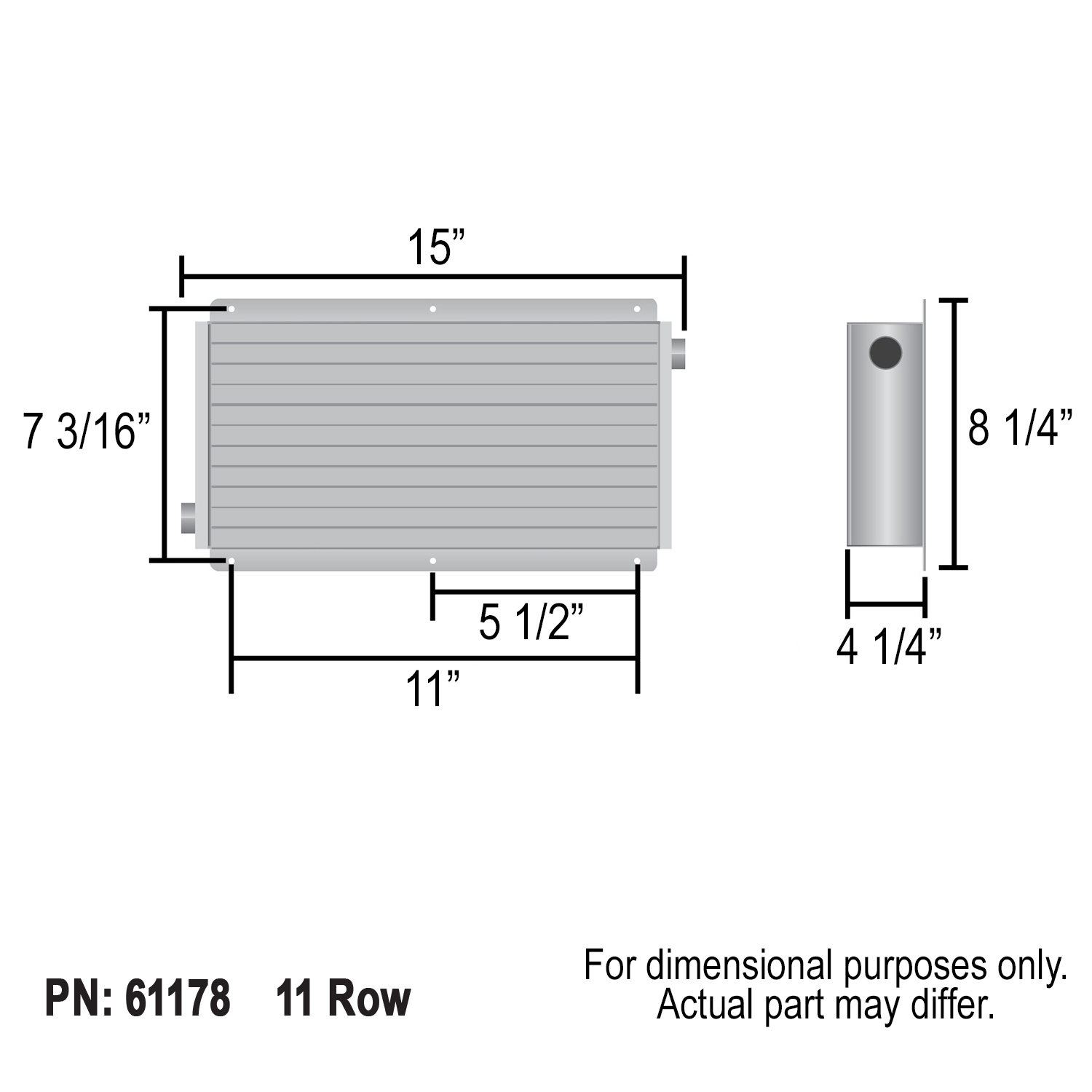

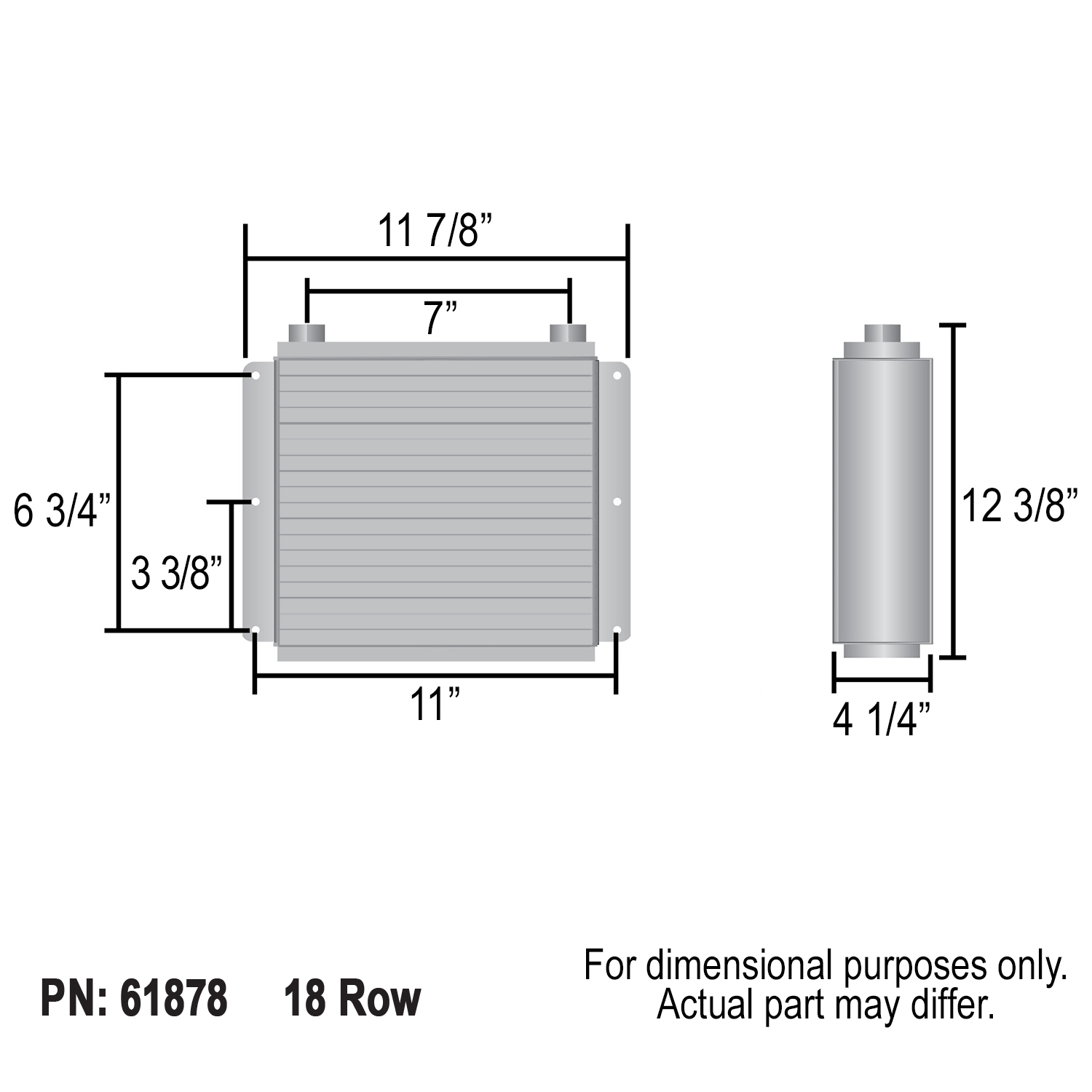

 Reference Dimension Drawings for mounting Dimensions

Specifications
  • Inlet(s) size: 7/8"-14 UNF O-ring
  • PN 61178: Mounting: 11" x 7-3/16"
  • PN 61878: Mounting: 6 3/4" x 11"
    • Core is 8 1/2" x 9 3/8"
Features
  • Dramatically extends engine or transmission life
  • Aircraft aluminum grade cooler design
  • Designed for puller applications
  • Extruded tube design with turbulators for maximum heat dissipation
  • Precision TIG welding
  • 20 GPM Flow rate
  • Supports up to 350 P.S.I., with minimal pressure drop
  • 11 Row (PN: 61178) Replacement Core Part for Part No. 65840
  • 18 Row (PN: 61878) Replacement Core Part for Part No. 65860 and 65861
