15 Row Atomic Cool Plate & Fin Remote Cooler, -6AN
Atomic-Cool Fluid Cooler, -6AN 13750, 15850, 13950, 15950, 15450, 137xx, 158xx, 13754
Description

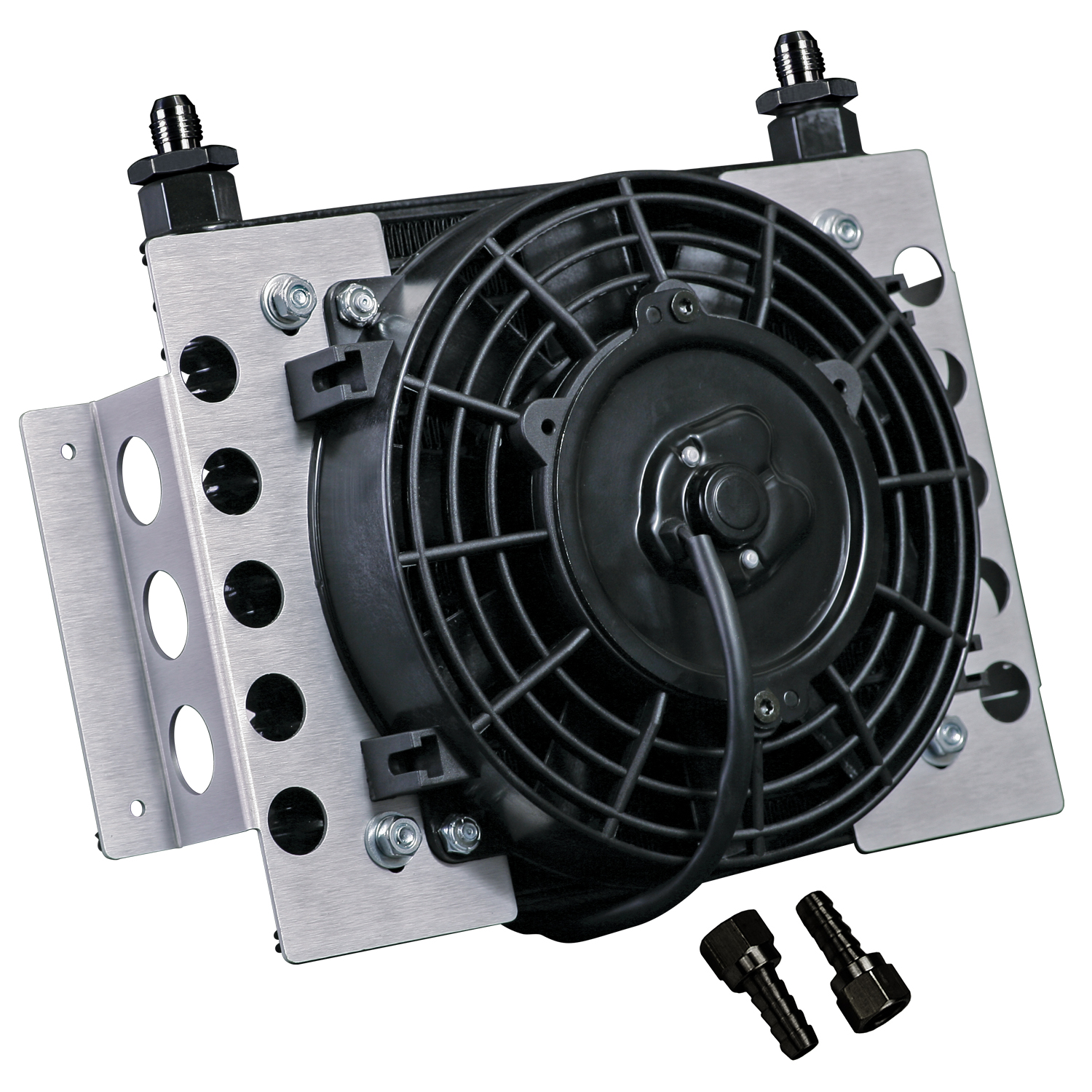

A step up from our Electra-Cool and Econo-Cool Tube & Fin type coolers, the popular Atomic-Cool remote cooler can literally be mounted anywhere available space permits, making it a popular addition for performance cars, hot rods, muscle cars and trucks. Featuring a heavy duty yet compact plate and fin cooler coupled with an 8"Tornado fan and aluminum brackets, each includes 2 each -6AN male fittings and -6AN x 3/8" barb adapters. The Atomic-Cool is perfect for heavy duty towing and hauling to provide a durable, trouble-free way to add years to the life of your transmission. Also recommended for power steering and fuel cooling.
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency OEM style Plate & Fin cooler
- Clear anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- -6AN inlet size
- Cooler capacity is an additional 17oz
- Cooler assembly includes fan mounted cooler, two Anodized Black -6AN fittings and two -6AN x 3/8" hose barb fittings
Specifications
- Cooler style: Plate & Fin
- Inlet size: 5/8"-18 o-ring female x -6AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

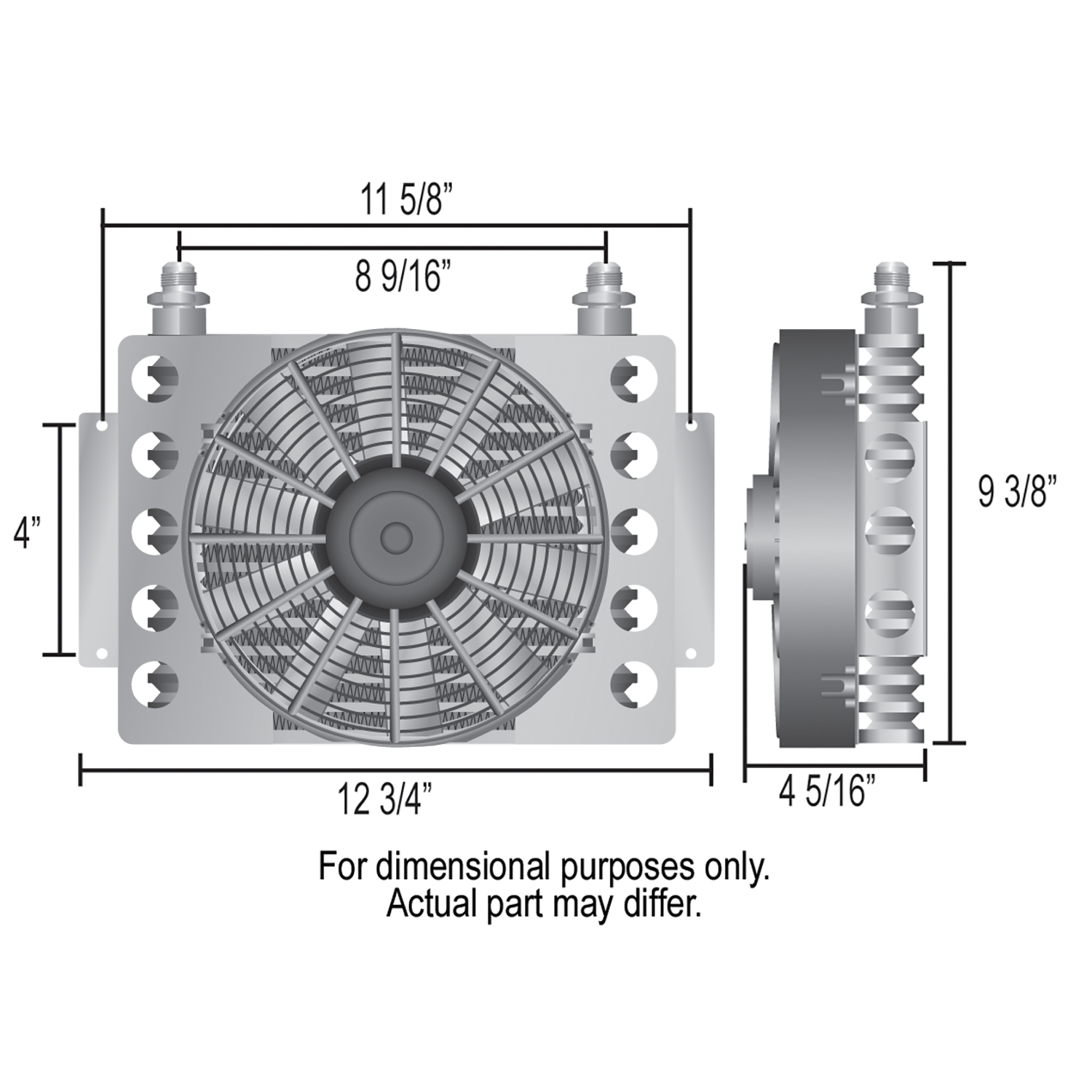

- Width: 12-3/4"
- Height: 9-3/8"
- Depth: 4-5/16"
- Inlet dim: 8-9/16"
- Mounting: 11-5/8" x 4"
- Barb size: 3/8"
- 22,000 BTU/Hr
