Part Number 15850

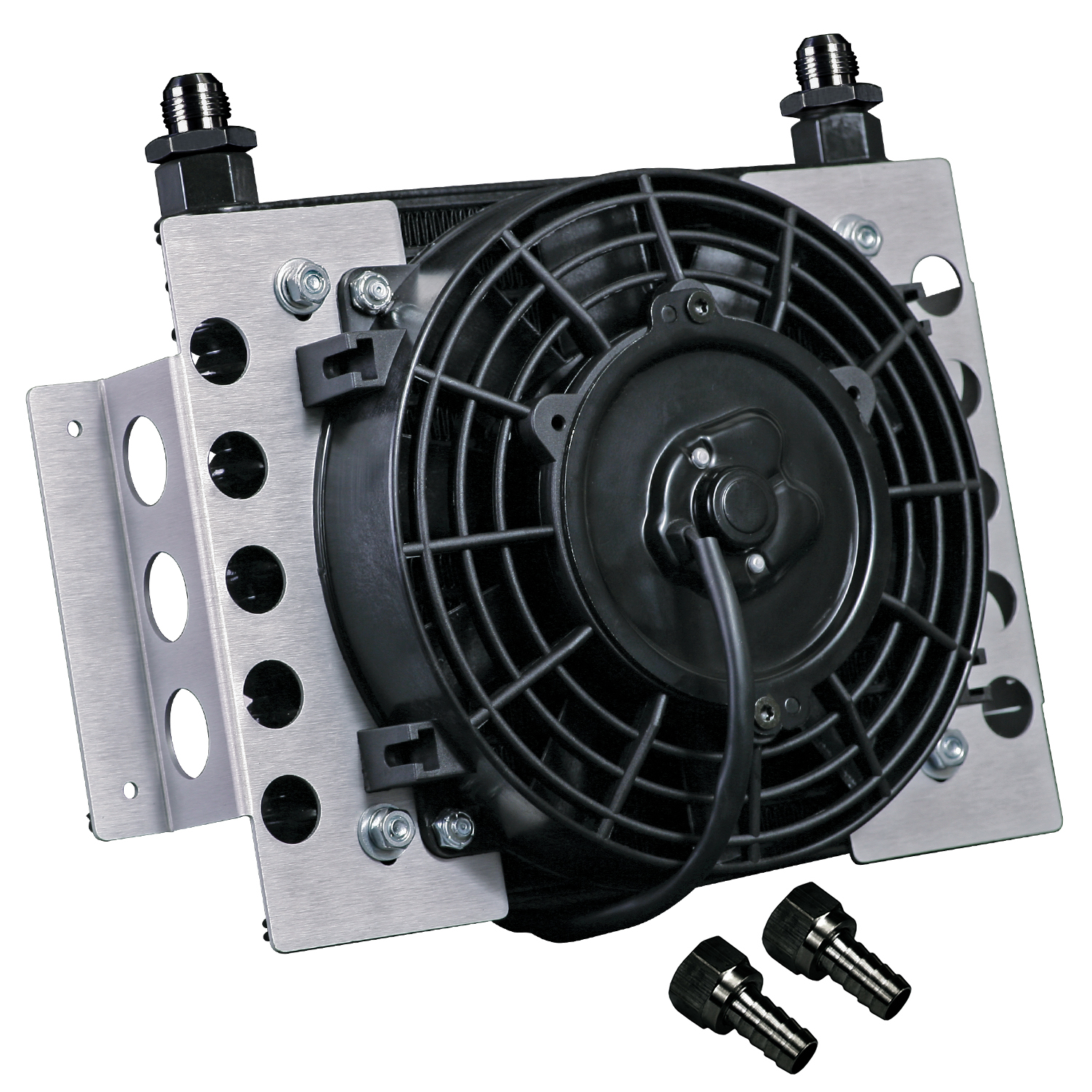

15 Row Atomic Cool Plate & Fin Remote Cooler, -8AN
Description
A step up from Tube & Fin type coolers, this Atomic-Cool remote fluid cooler can be mounted anywhere space permits, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, it comes with 2 -8AN male aluminum fittings and 2 -8AN x 1/2" barb adapters. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling. The Atomic-Cool is a tried and true workhorse that can keep vital engine and transmission fluid temperatures under control under severe duty environments. Made in the USA.
Specifications
- Cooler style: Plate & Fin
- Inlet size: 5/8"-18 o-ring female x -8AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

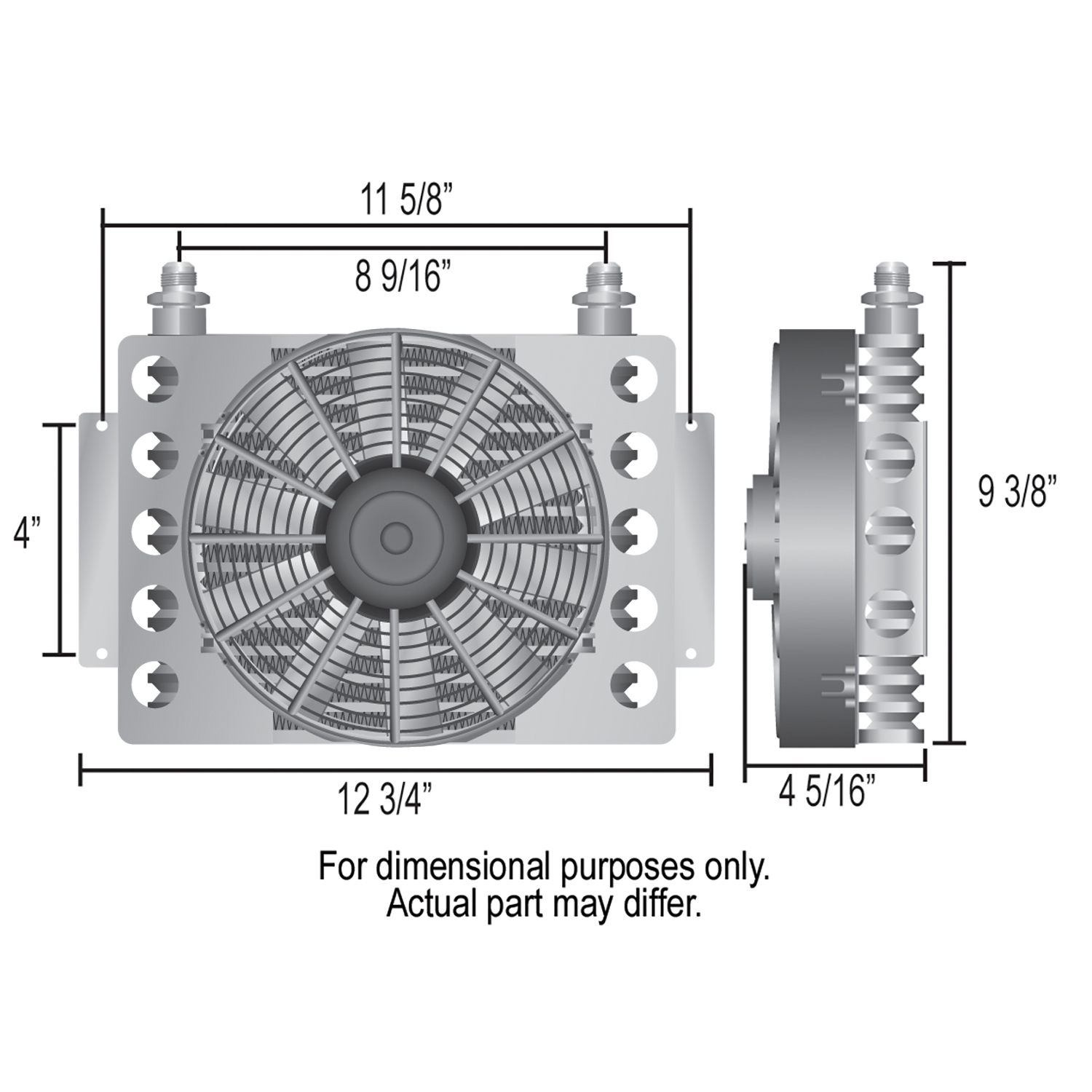

- Width: 12-3/4"
- Height: 9-3/8"
- Depth: 4-5/16"
- Inlet dim: 8-9/16"
- Mounting: 11-5/8" x 4"
- Barb size: 1/2"
- 22,000 BTU/Hr
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency OEM style Plate & Fin cooler
- Clear anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- -8AN inlet size
- Cooler assembly includes fan mounted cooler, two -8AN fittings and two -8AN x 1/2" hose barb fittings
