15 Row Atomic Cool Plate & Fin Remote Engine Oil Cooler Kit, -8AN
Atomic-Cool Engine Oil Cooler Kit, -8AN 15450, 13750, 15850, 13950, 15950, 15450, 137xx, 158xx, 13754
Description
With its own air supply, this popular Atomic-Cool Remote Engine Oil Cooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, this universal kit comes with a complete installation kit to install easily on most vehicle engines. See application guide for detailed applications. Also included is an 180°F in-line thermostat for activating the electric fan.
Specifications
- Cooler style: Plate & Fin
- Inlet size: 5/8"-18 o-ring female x -8AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

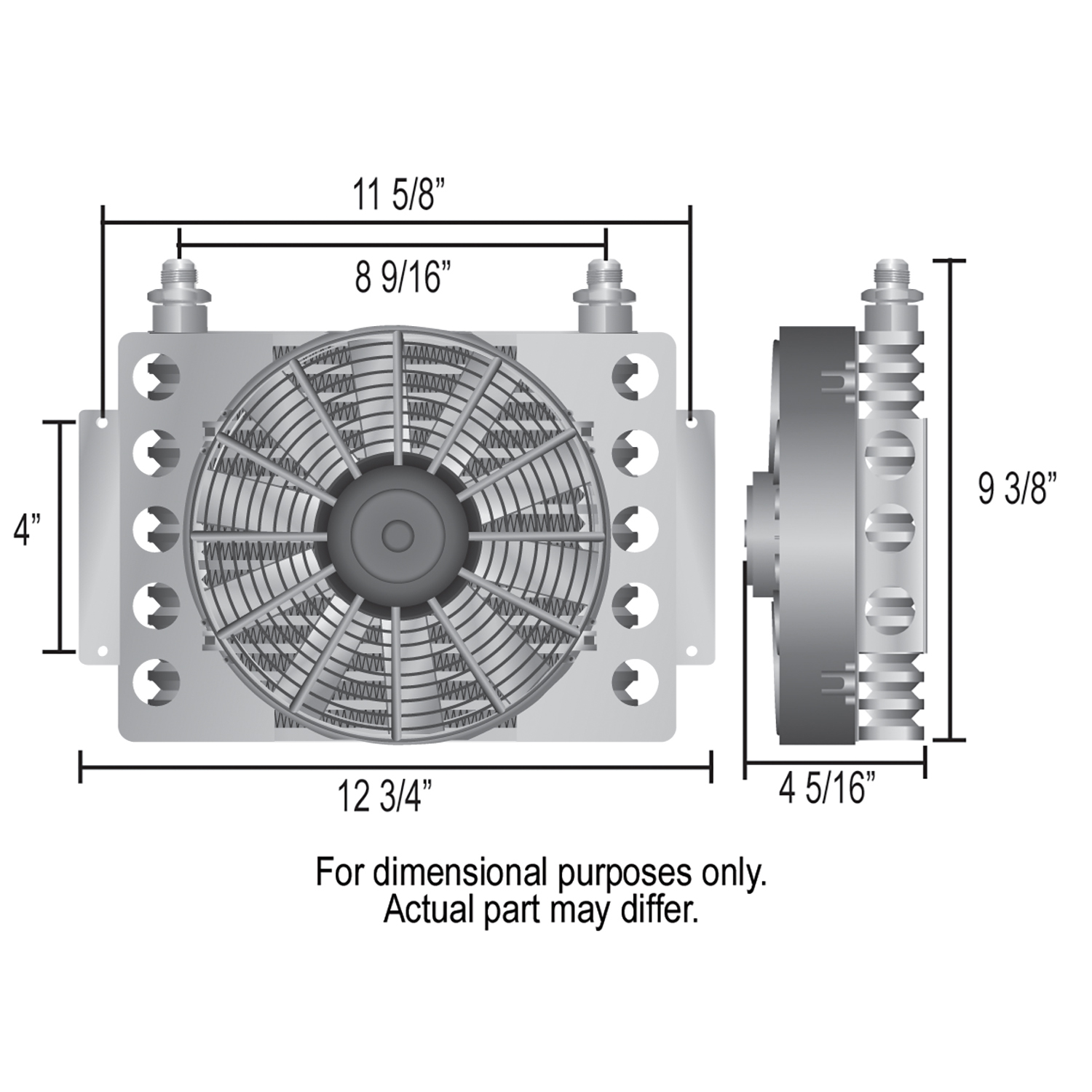

- Width: 12-3/4"
- Height: 9-3/8"
- Depth: 4-5/16"
- Inlet dim: 8-9/16"
- Mounting: 11-5/8" x 4"
- Sandwich adapter inlet size: 3/8" NPT
- Hose size: 1/2"
- Hose length: 10'
- Cooler is rated at 250psi working pressure and 300psi burst strength
- 22,000 BTU/Hr
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency OEM style Plate & Fin cooler
- Clear anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- -8AN inlet size

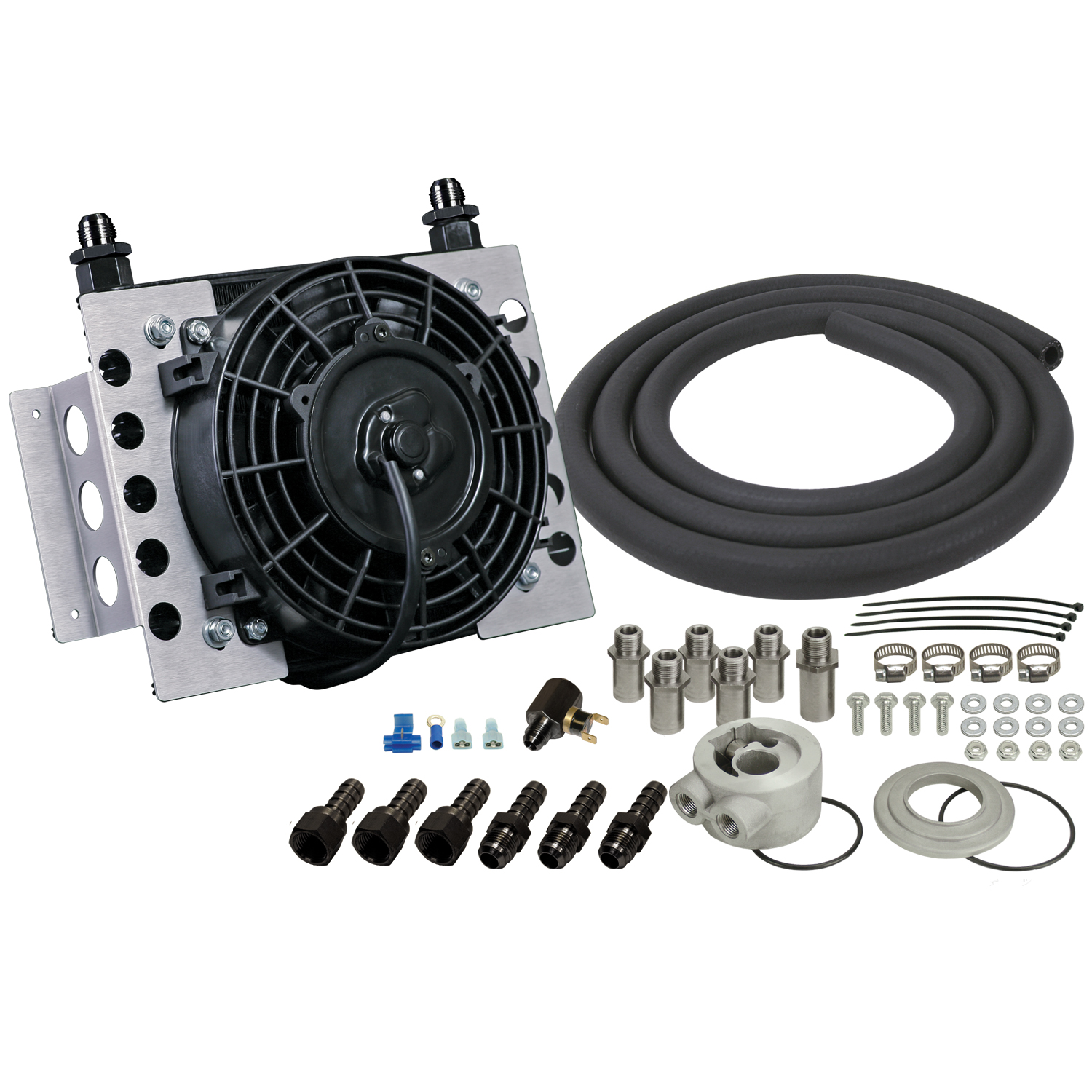

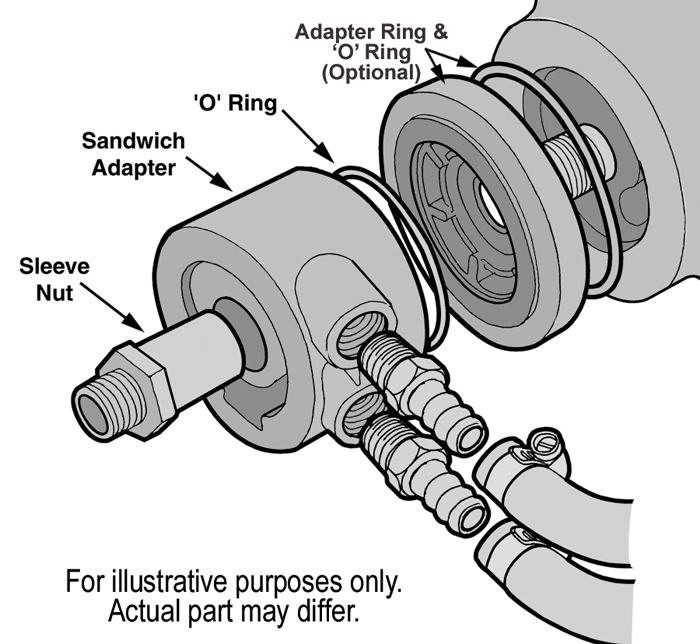

- Engine cooler kit includes fan mounted cooler, universal thermostatic sandwich adapter, 13/16-16", 3/4-16", 18mm, 20mm, & 22mm sleeve nuts, two -8AN fittings, four 1/2" hose barb fittings, 180°F In-line thermostat,10 ft. OEM spec hose & hardware
- Cooler is rated at 250psi working pressure and 300psi burst strength
