15 Row Atomic Cool Plate & Fin Remote Transmission Cooler Kit, -6AN
Atomic-Cool Transmission Cooler Kit, -6AN 13950, 13750, 15850, 13950, 15950, 15450, 137xx, 158xx, 13754
Description
A step up from Tube & Fin type coolers, the Atomic-Cool Remote Transcooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 5/16" or 3/8" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. The Atomic-Cool is designed for heavy duty towing and hauling, and can add years to the life of your transmission.
Specifications
- Cooler style: Plate & Fin
- Inlet size: 5/8"-18 o-ring female x -6AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

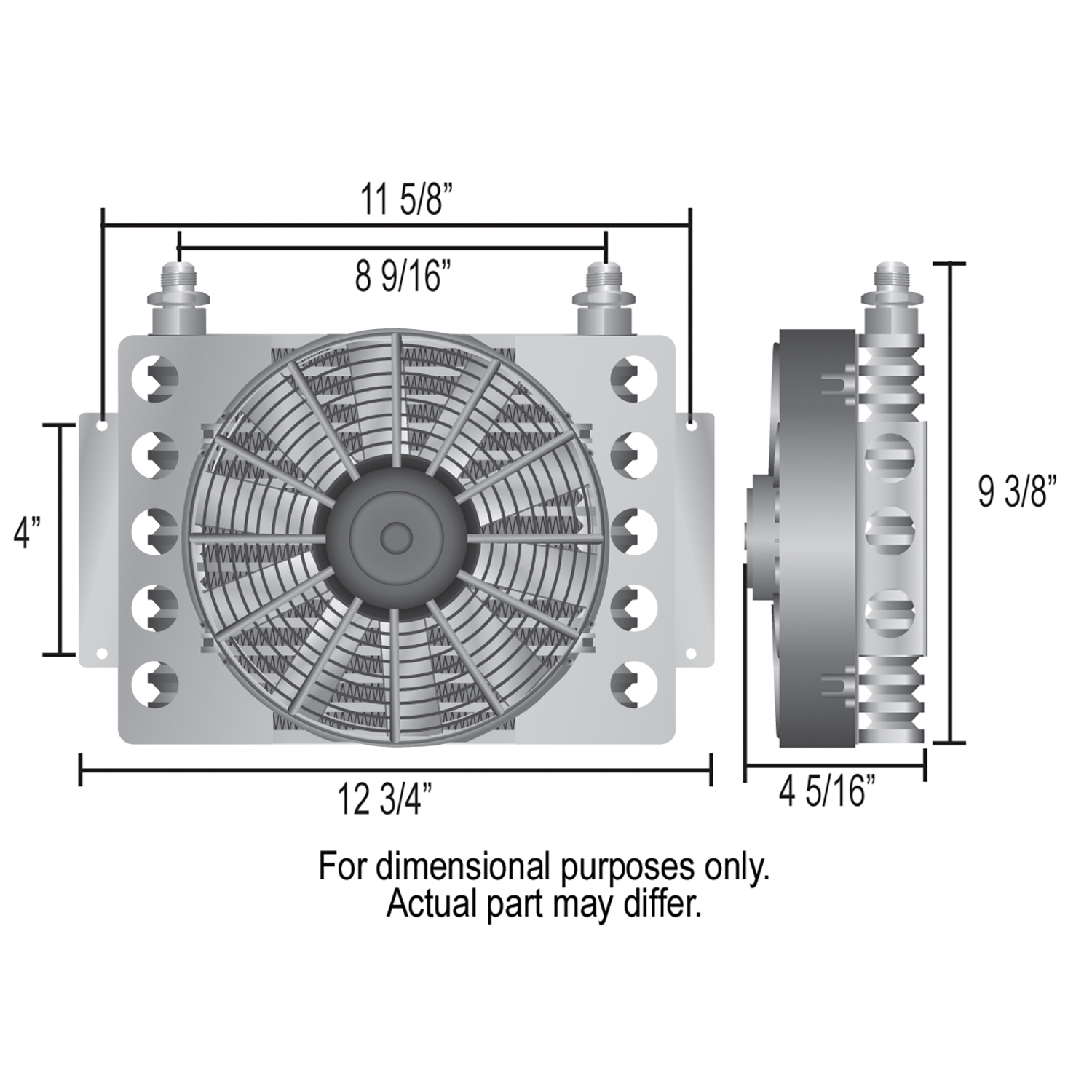

- Width: 12-3/4"
- Height: 9-3/8"
- Depth: 4-5/16"
- Inlet dim: 8-9/16"
- Mounting: 11-5/8" x 4"
- Hose size: 3/8"
- Hose length: 10'
- 22,000 BTU/Hr
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency OEM style Plate & Fin cooler
- Clear anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- -6AN inlet size

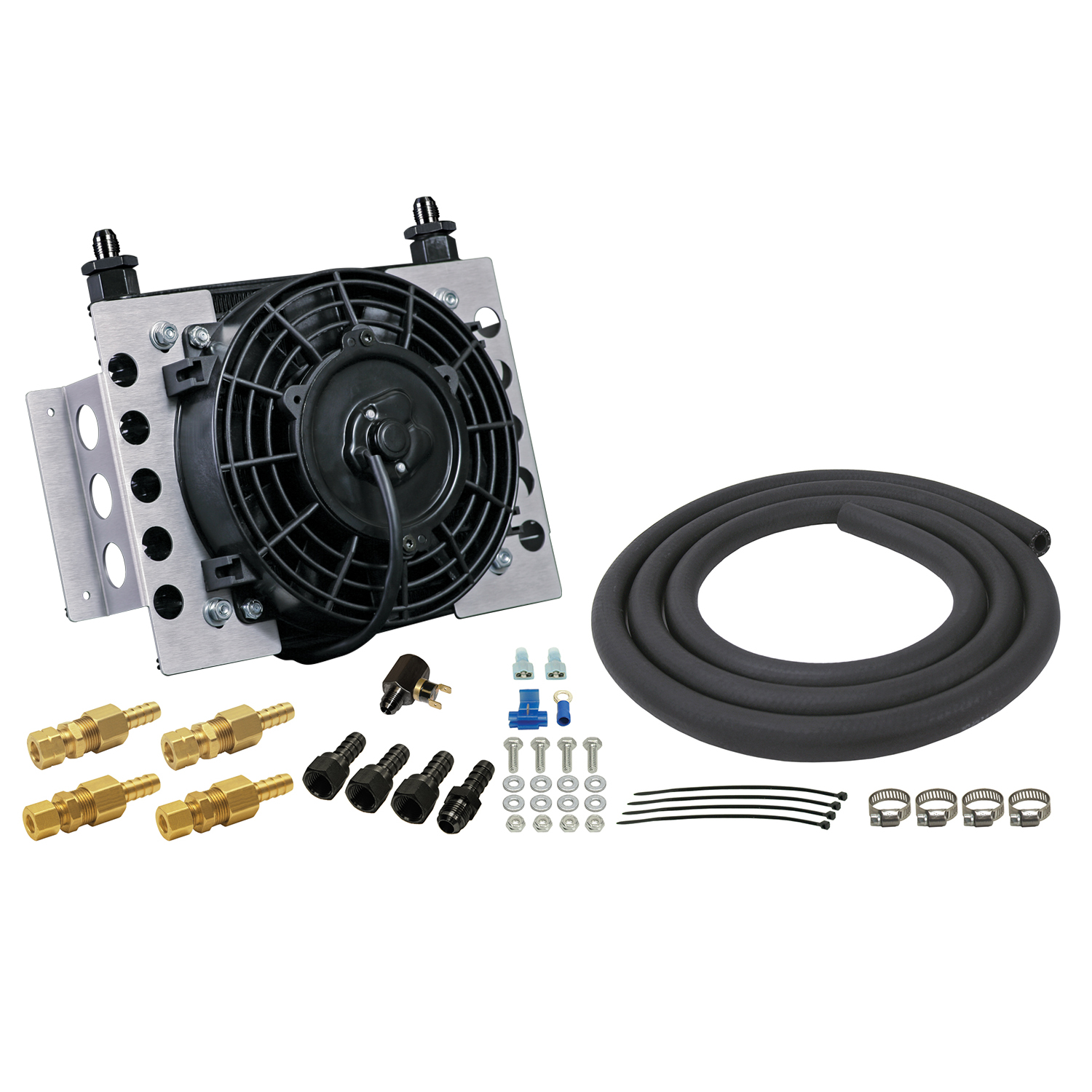

- Transmission cooler kit includes fan mounted cooler, two -6AN fittings hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16" and 3/8" compression fittings, and hardware
