Part Number 15230

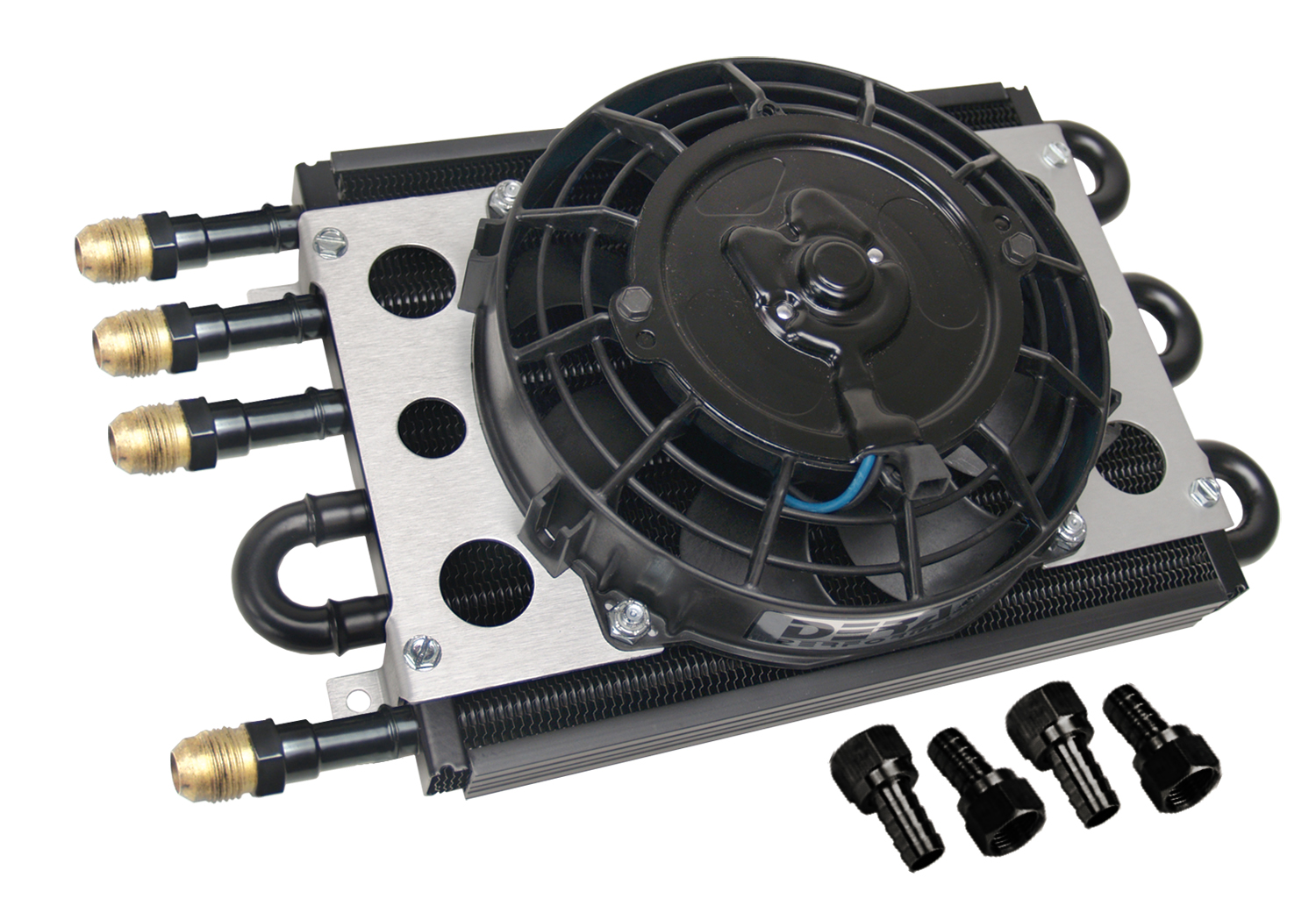

4 & 2 Pass Dual Circuit Econo-Cool Remote Cooler
Description
Combining an efficient 4 & 2 Pass copper/aluminum Made in the USA cooler core with a 7" Tornado electric fan, this compact remote cooler cools two separate systems with one compact design that can be mounted literally anywhere space permits. Perfect for lighter duty or slightly modified cars and trucks, each unit also includes clear anodized aluminum mounting brackets, (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings to adapt to a wide variety of heat removal requirements.
Features
- Cools two systems with one compact, space-saving design
- Efficient copper/aluminum 4 & 2 pass cooler core
- Reversible 7" Tornado electric fan
- Clear anodized aluminum brackets
- Includes (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings
- Cooler is rated at 250psi working pressure and 300psi burst strength
- Additional Capacity: 4oz and 2.25 oz
- 6,000 BTU/Hr
Specifications
- Cooler style: 4 pass and 2 pass Tube & Fin
- Inlet size: -8AN
- Cooler Fluid Capacity: 2 Pass 2.25 oz. 4 Pass 4oz
