Part Number 13700

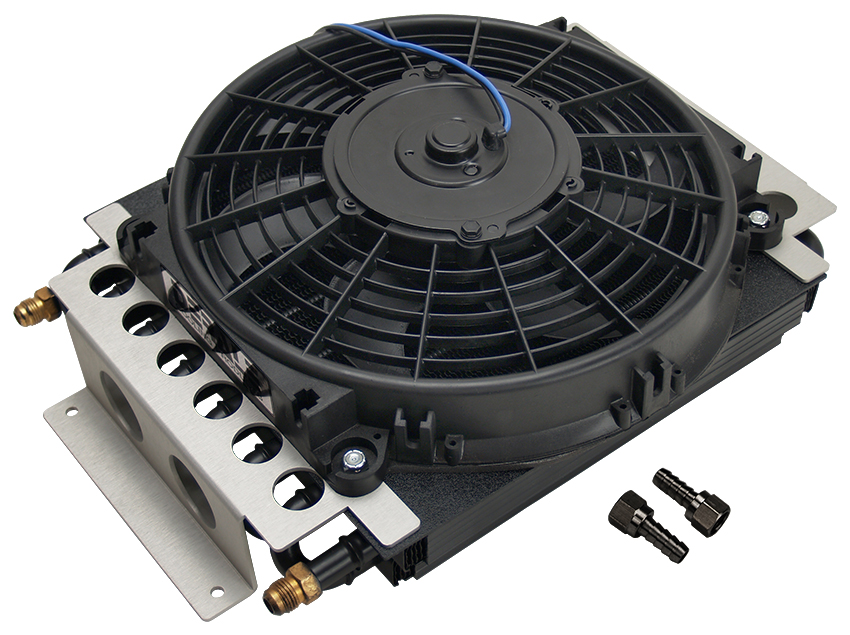

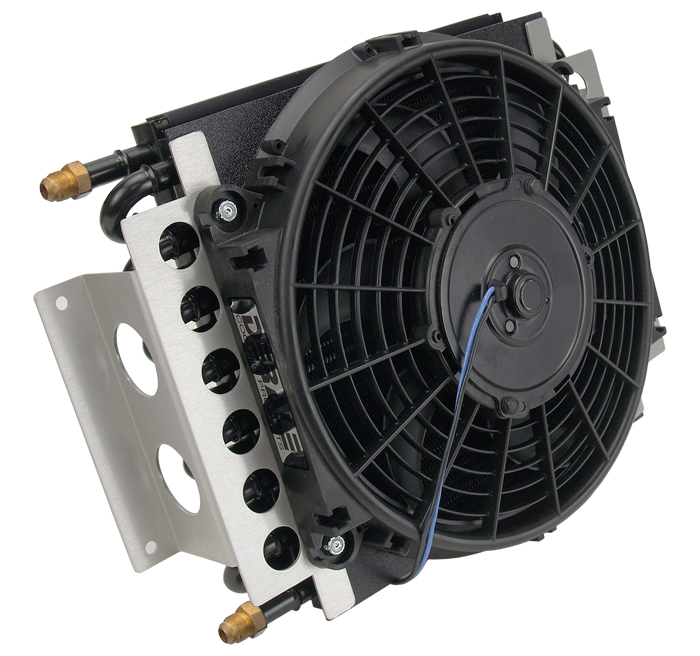

16 Pass Electra-Cool Remote Cooler, -6AN Inlets
Description
With its own air supply available when needed, the Electra-Cool is one of our most popular remote coolers and can literally be mounted anywhere space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a powerful 10" diameter Tornado fan and aluminum brackets, and featuring -6AN male fittings, each unit also includes 2 each -6AN x 3/8" barb fittings. Designed for transmission, power steering and fuel cooling.
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- 16 pass Tube & Fin cooler
- Clear anodized aluminum shroud
- 650 CFM reversible Tornado electric fan
- -6AN inlet size
- Derale coolers are rated at 250psi working pressure and 300psi burst strength
- Cooler assembly includes fan mounted cooler, two aluminum -6AN fittings and two -6AN x 3/8" hose barb fittings
Specifications
- Cooler style: 16 pass Tube & Fin
- Inlet size: -6AN
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3

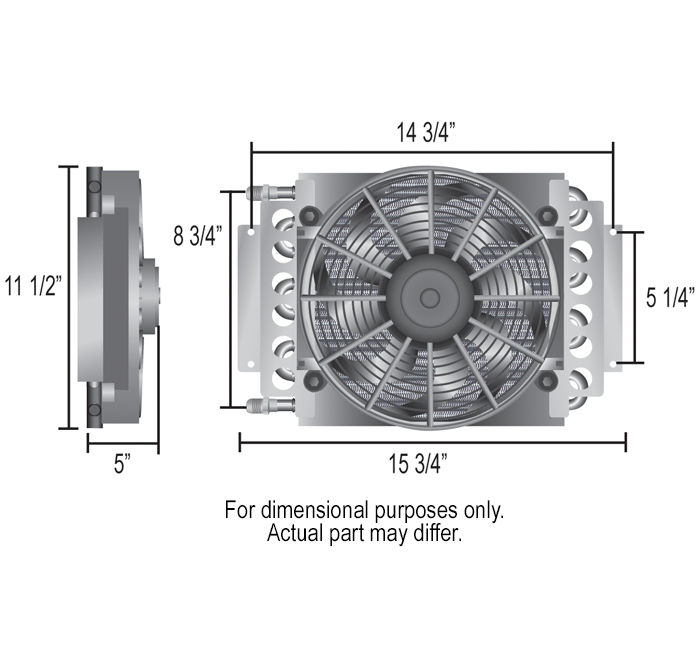

- Width: 15-3/4"
- Height: 11-1/2"
- Depth: 5"
- Inlet dim: 8-3/4"
- Mounting: 14-3/4" x 5-1/4"
- Cooler fluid capacity: 19.6 oz
- 14,000 BTU/ Hr
- Barb size: 3/8"
- Airflow: Puller (reversible)
