16 Pass Electra-Cool Remote Cooler, -8AN Inlets

16 Pass Electra-Cool Remote Fluid Cooler, -8AN 15820, 13700, 13900, 15500, 15800, 15900, 13720

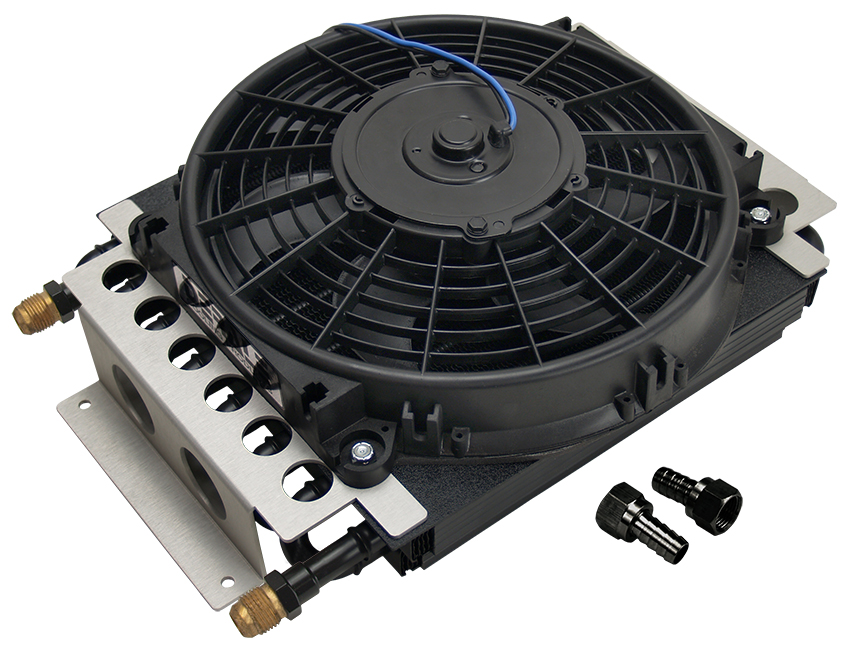

1580075

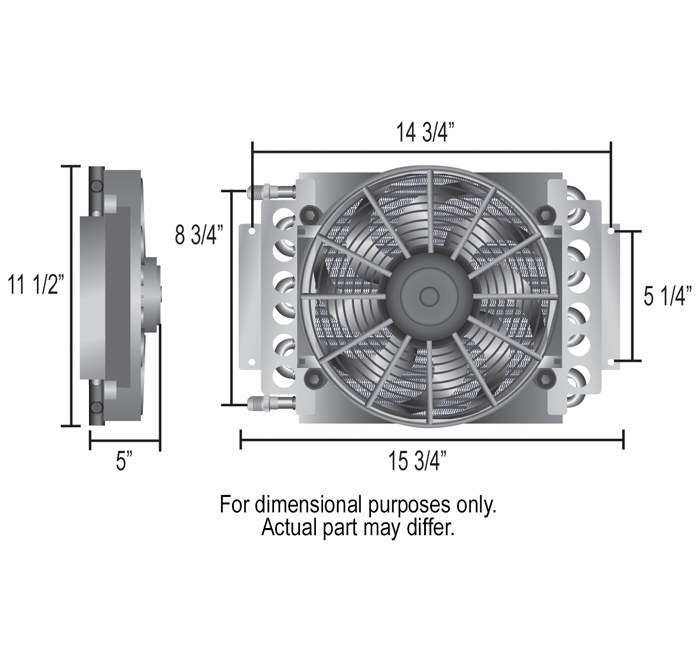

15800-dimensions
Description

With its own air supply, the ever-popular Electra-Cool remote cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, built with -8AN male fittings and includes 2 each -8AN x 1/2" barb fittings. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling. Made in the USA.

Specifications
  • Cooler style: 16 pass Tube & Fin
  • Inlet size: -8AN
  • Fan size: 10"
  • CFM: 650
  • Amp draw: 5.3
  • Width: 15-3/4"
  • Height: 11-1/2"
  • Depth: 5"
  • Inlet dim: 8-3/4"
  • Mounting: 14-3/4" x 5-1/4"
  • Cooler fluid capacity: 19.6 oz
  • 14,000 BTU/ hr
  • Barb size: 1/2"
  • Airflow: Puller (reversible)
Features
  • Mounts anywhere space permits
  • Electric fan supplies optimum airflow
  • Dramatically extends engine and transmission life
  • 16 pass Tube & Fin cooler
  • Clear anodized aluminum shroud
  • 650 CFM reversible Tornado electric fan
  • -8AN inlet size
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength
  • Cooler assembly includes fan mounted cooler, two -8AN fittings and two -8AN x 1/2" hose barb fittings
