8 Pass Electra-Cool Remote Cooler, -8AN Inlets
8 Pass Electra-Cool Remote Fluid Cooler -8AN 15820, 13700, 13900, 15500, 15800, 15900, 13720
Description

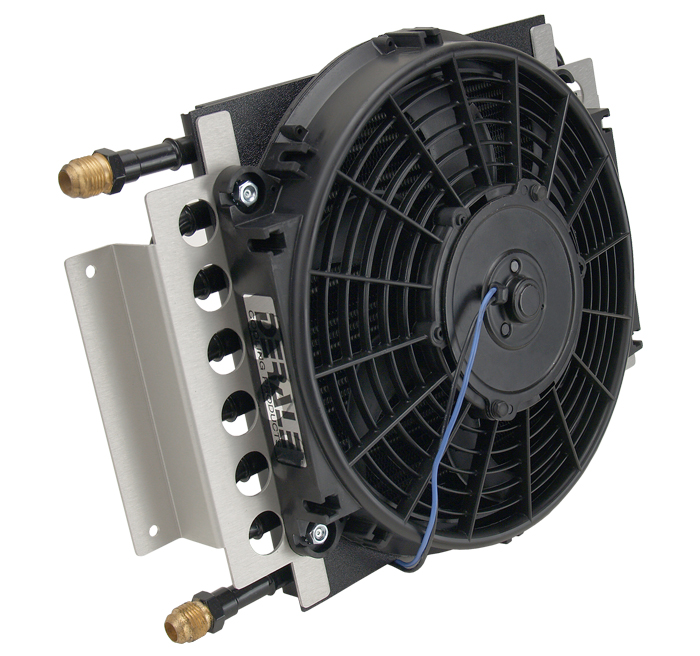

With its own air supply, the popular Electra-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 8-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, built with -8AN male fittings and includes 2 each -8AN x 1/2" barb fittings. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for medium duty transmission or fuel cooling. Made in the USA.
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- 8 pass Tube & Fin cooler
- Clear anodized aluminum shroud
- 650 CFM reversible Tornado electric fan
- -8AN inlet size
- Derale coolers are rated at 250psi working pressure and 300psi burst strength

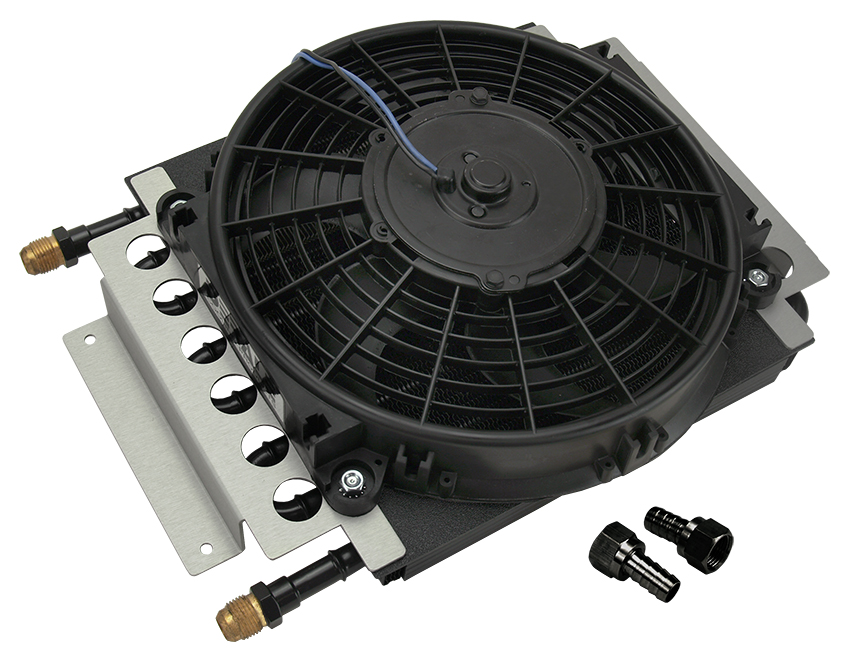

- Cooler assembly includes fan mounted cooler, two -8AN fittings and two -8AN x 1/2" hose barb fittings
Specifications
- Cooler style: 8 pass Tube & Fin
- Inlet size: -8AN
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3

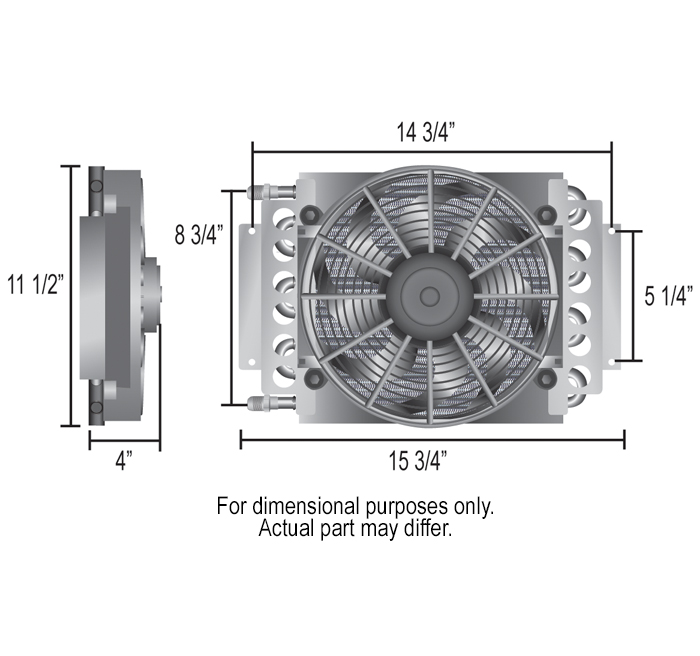

- Width: 15-3/4"
- Height: 11-1/2"
- Depth: 4"
- Inlet dim: 8-3/4"
- Mounting: 14-3/4" x 5-1/4"
- Cooler fluid capacity: 9.8 oz
- 7,000 BTU/ Hr
- Barb size: 1/2"
- Airflow: Puller (reversible)
