8 & 8 Pass Dual Circuit Electra-Cool Remote Cooler, -8AN
Dual Circuit Electra-Cool Fluid Cooler, -8AN 15200, 15220, 152xx
Description

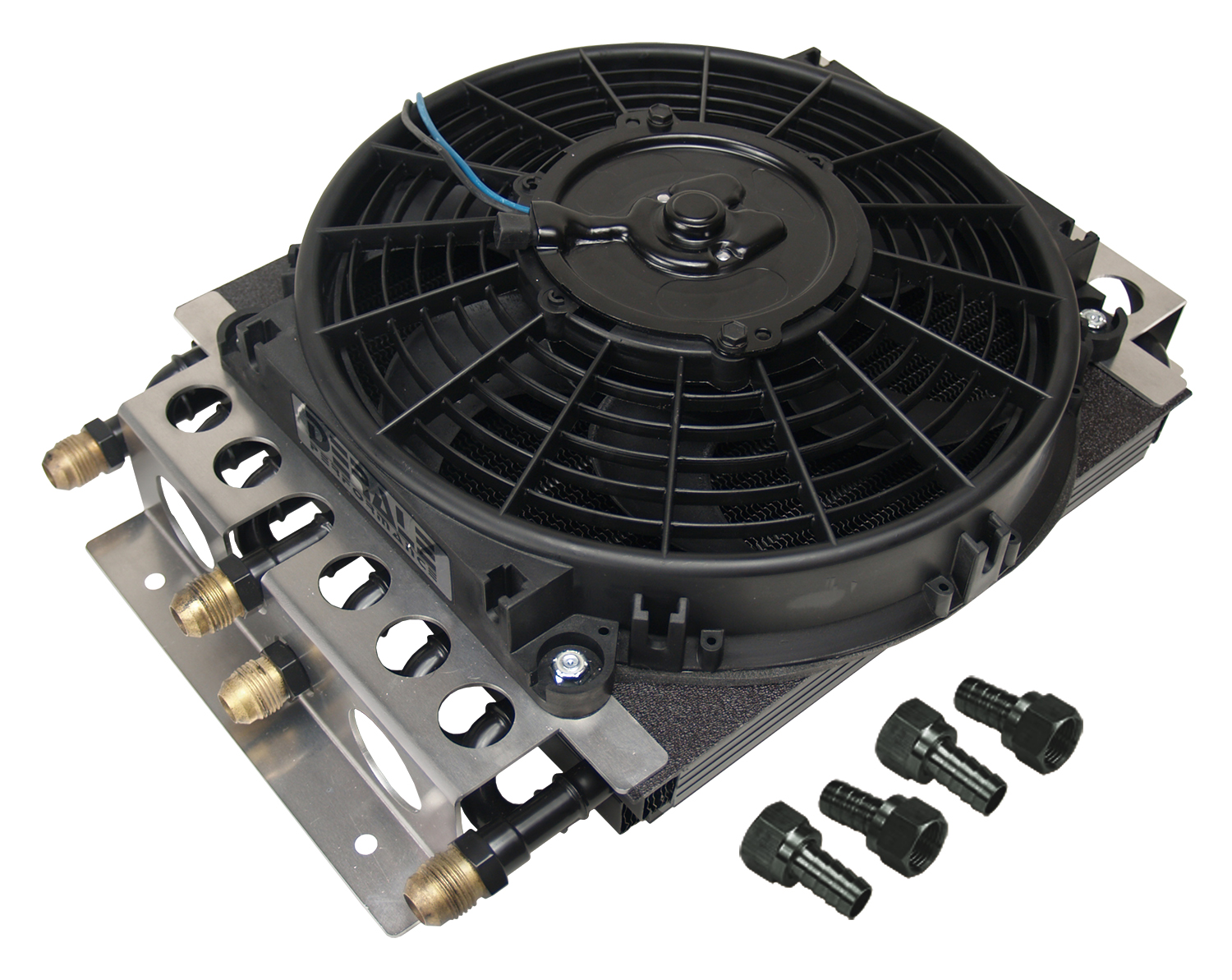

Combining an efficient 8 & 8 Pass copper/aluminum Made-in-the-USA cooler with a powerful 10" Tornado electric fan, this compact remote cooler cools two separate systems with one compact design that can be mounted literally anywhere space permits. Includes clear anodized aluminum mounting brackets, (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings to adapt to a wide variety of heat removal requirements.
Features
- Cools two systems with one compact, space-saving design
- Efficient copper/aluminum 8 & 8 pass cooler core
- Reversible 10" Tornado electric fan

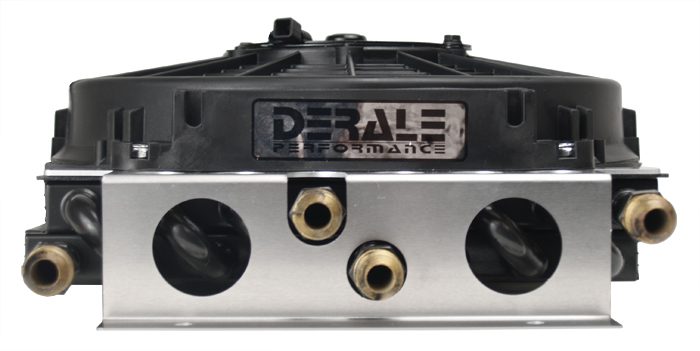

- Clear anodized aluminum brackets
- Includes (2) -8AN x 3/8" and (2) -8AN x 1/2" hose barb fittings
- Cooler is rated at 250psi working pressure and 300psi burst strength
Specifications
- Cooler style: 8 & 8 pass Tube & Fin
- Inlet size: -8AN
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3

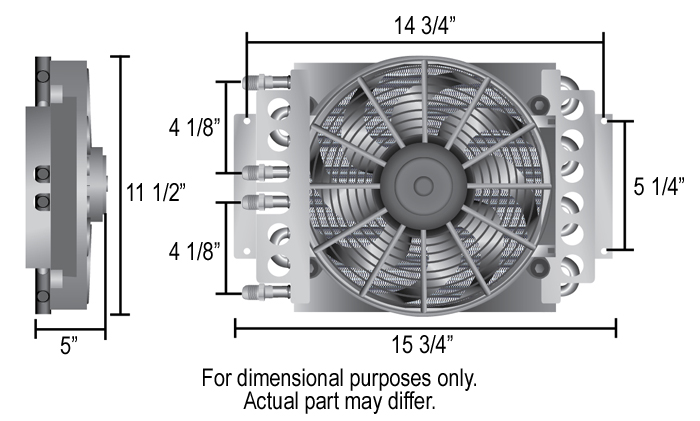

- Width: 15-3/4"
- Height: 11-1/2"
- Depth: 5"
- Inlet dim: 8-3/4"
- Mounting: 14-3/4" x 5-1/4"
- Cooler fluid capacity: 9 oz
- 16,000 BTU/ Hr
- Barb size: 1/2"
- Airflow: Puller (reversible)
