Part Number 65860

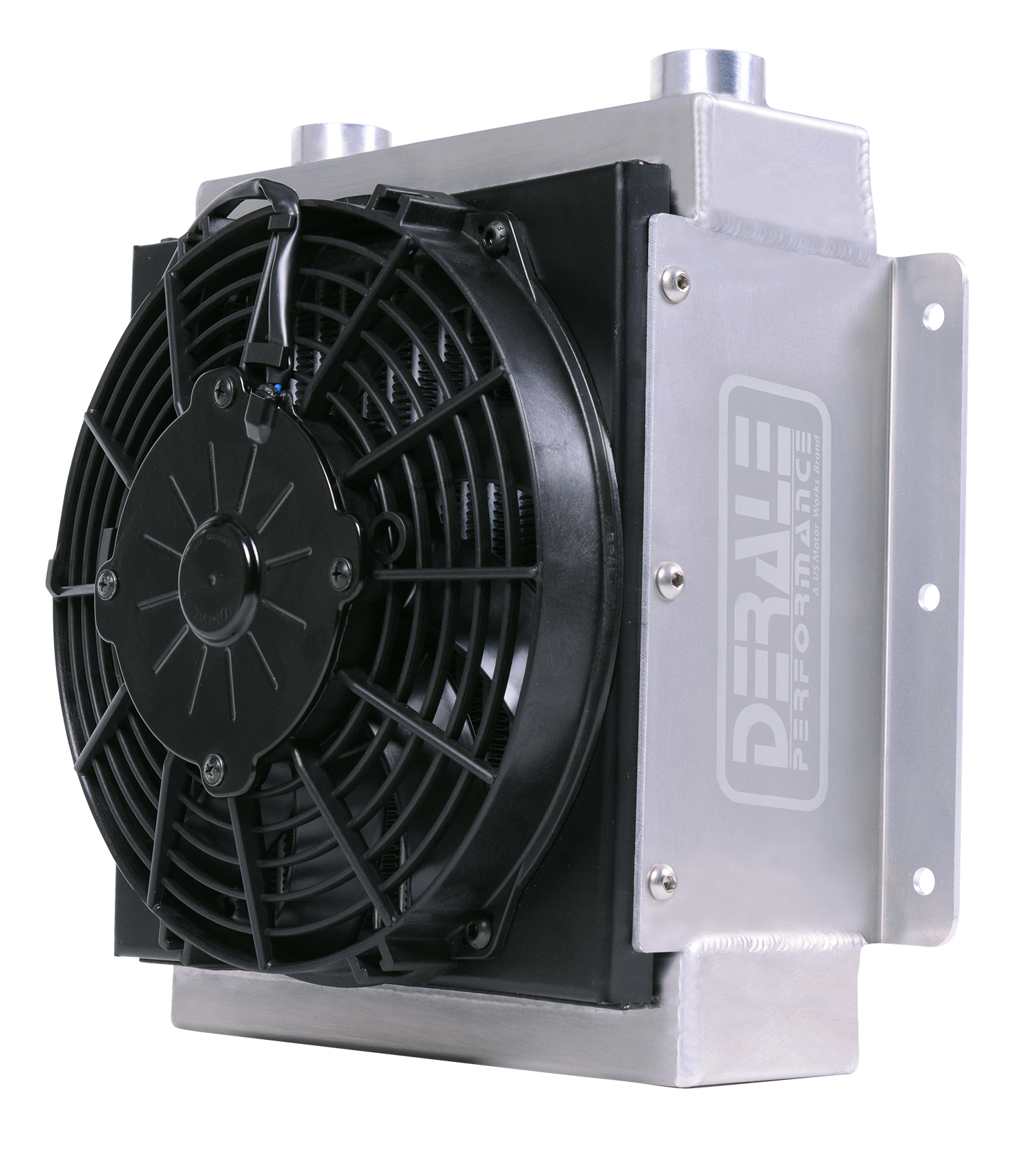

18 Row Hi-Flow Racing Remote Fluid Cooler with Low Profile Fan, 7/8-14 UNF O-ring
Description
Derale is proud to introduce our latest addition to the remote cooler lineup. This 18 Row Hi-Flow Racing Cooler is precision TIG welded and features the most efficient tube design in the aftermarket, which supports up to 350 PSI with minimal pressure drop. Mounted 8" Electric fan is IP68 certified (Water/Dust Proof) and designed to do its best under the most strenuous conditions. Perfect for everything from Drag racing to Off-Road.
Features
- 8" Electric fan supplies optimum airflow
- Dramatically extends engine or transmission life
- Aircraft aluminum grade cooler design
- Designed for puller applications
- Extruded tube design with turbulators for
maximum heat dissipation - Precision TIG welding
- 20 GPM Flow rate
- Supports up to 350 P.S.I., with minimal
pressure drop

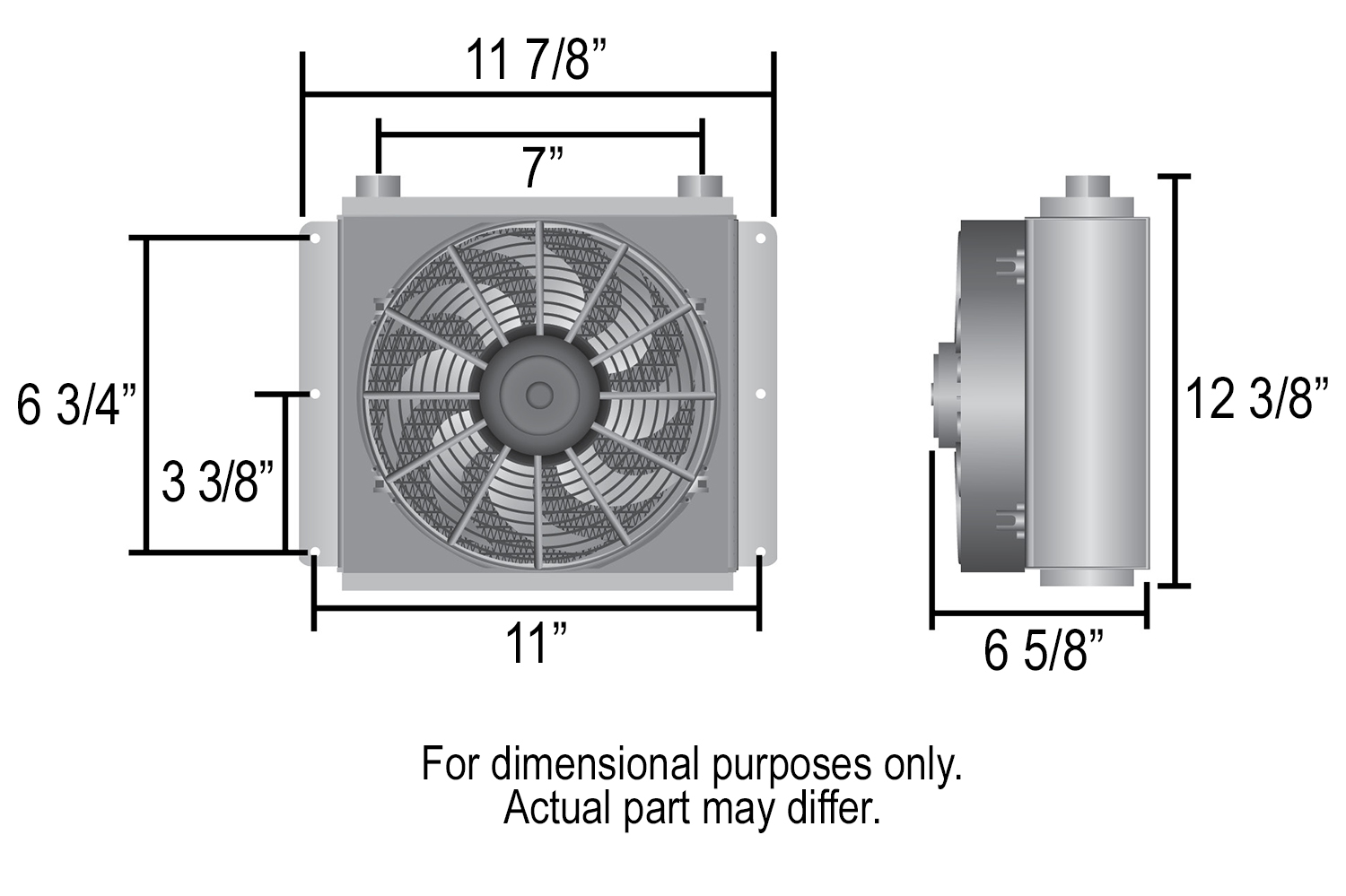

Specifications
- Inlet(s) size: 7/8"-14 UNF O-ring
- Fan size: 8"
- Amp Draw: 6
- CFM: 625
- Fluid Capacity: 47 oz.
- Inlet Dim.: 7"
- Width: 11 7/8"
- Height: 12-3/8"
- Depth: 8-1/2"
- Mounting: 6-3/4" x 7-3/16"
- 125,000 BTU's Per Hour
