25 Row Hyper-Cool Remote Cooler, -10AN
Hyper-Cool Remote Fluid Cooler, -10AN 15865, 13960, 13760, 15860, 15960, 15660, 137xx, 158xx, 13764
Description

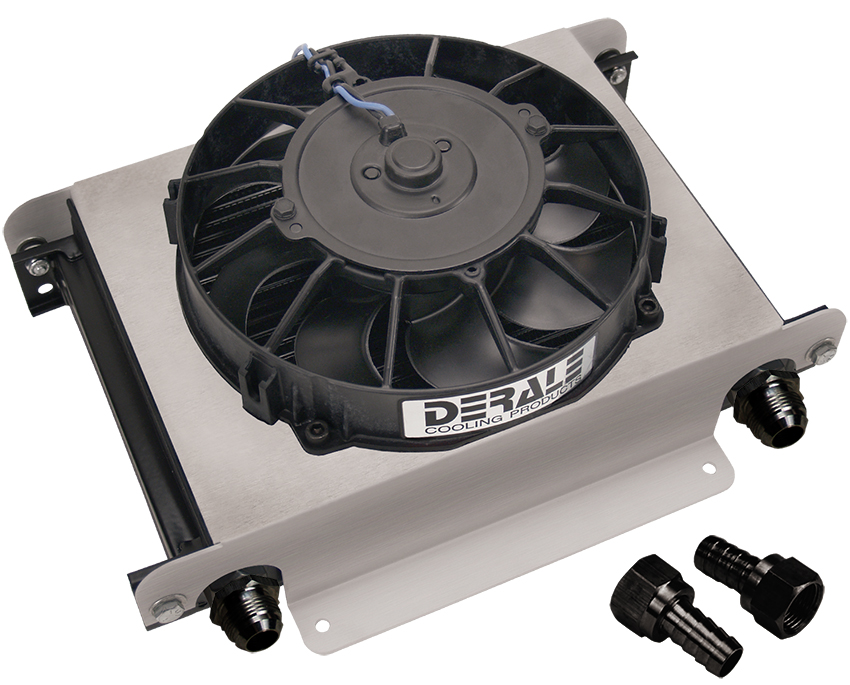

Equipped with our top-of-the-line 25-row stack plate cooler, the Hyper-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for serious performance cars, hot rods, muscle cars and trucks. With an all-aluminum, oven-brazed Stack Plate cooler coupled with a Tornado fan and aluminum shroud, it comes with aluminum -10AN male fittings and -10AN x 1/2" barb adapters to provide serious cooling in a small package. This cooler was designed primarily for engine oil applications, but also can be used for heavy-duty transmission or fuel cooling. The Hyper-Cool is perfect for extreme duty applications.
Specifications
- Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8"-14 o-ring female x -10AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

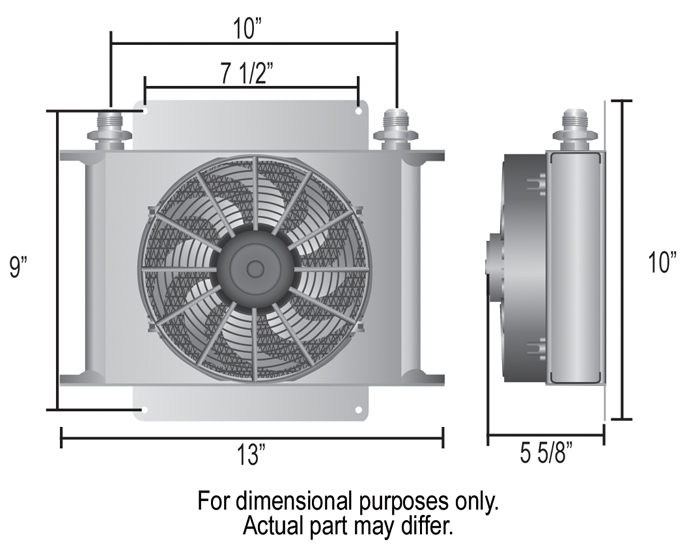

- Width: 13"
- Height: 10"
- Depth: 5-5/8"
- Inlet dim: 10"
- Mounting: 7-1/2" x 9"
- Barb size: 1/2"
- 46,000 BTU's Per Hour
- 16oz. Additional Fluid Capacity
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency Stacked Plate cooler
- Clear anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- -10AN inlet size
- 46,000 BTU's Per Hour
- Cooler assembly includes fan mounted cooler, two aluminum -10AN fittings and two -10AN x 1/2" hose barb fittings
