Part Number 13760
25 Row Hyper-Cool Remote Cooler, -6AN
Description
Equipped with our top of the line 25 row stacked plate cooler, the Hyper-Cool remote cooler can be installed anywhere available space will allow, making it a popular addition for performance cars, hot rods, muscle cars and trucks. Our Stacked Plate cooler coupled with an 8" Tornado fan and aluminum shroud, it comes with -6AN male fittings and -6AN x 3/8" barb adapters. The Hyper-Cool is perfect for extreme duty towing and hauling and can add years to the life of your transmission. Also recommended for power steering and fuel cooling.
Specifications
- Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8"-14 o-ring female x -6AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

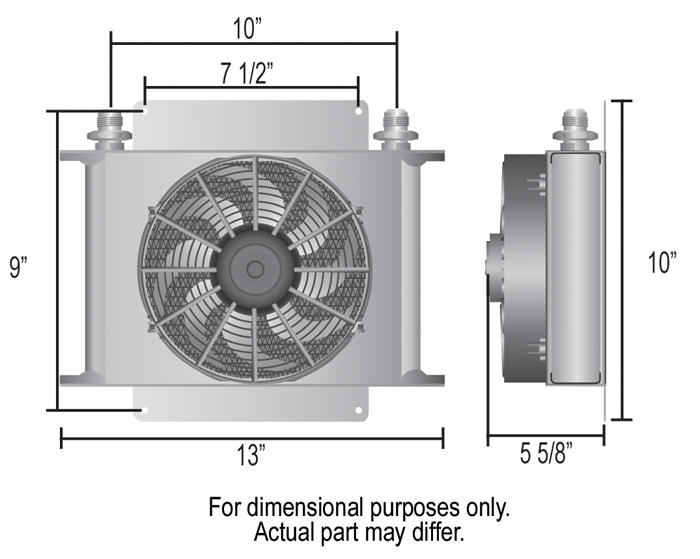

- Width: 13"
- Height: 10"
- Depth: 5-5/8"
- Inlet dim: 10"
- Mounting: 7-1/2" x 9"
- Barb size: 3/8"
- 46,000 BTU's Per Hour
- 16oz. Additional Fluid Capacity
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency Stacked Plate cooler
- Clear anodized aluminum shroud
- 500 CFM reversible Tornado electric fan
- -6AN inlet size
- 46,000 BTU's Per Hour

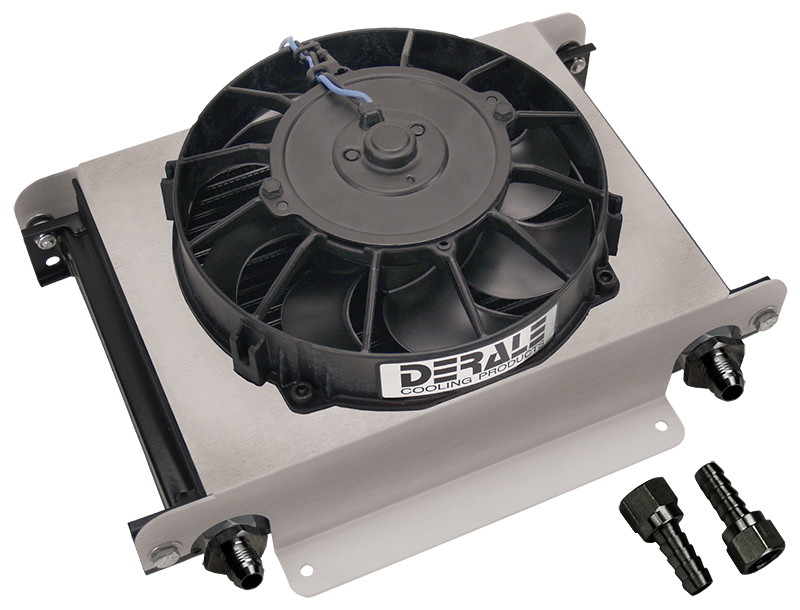

- Cooler assembly includes fan mounted cooler, two Anodized Black -6AN fittings and two -6AN x 3/8" hose barb fittings
