25 Row Hyper-Cool Remote Engine Oil Cooler Kit, -8AN

Hyper-Cool Engine Oil Cooler Kit, -8AN 15660, 13960, 13760, 15860, 15960, 15865, 137xx, 158xx, 13764
1566096
15660-Illustration
15660-Illustration2
Description

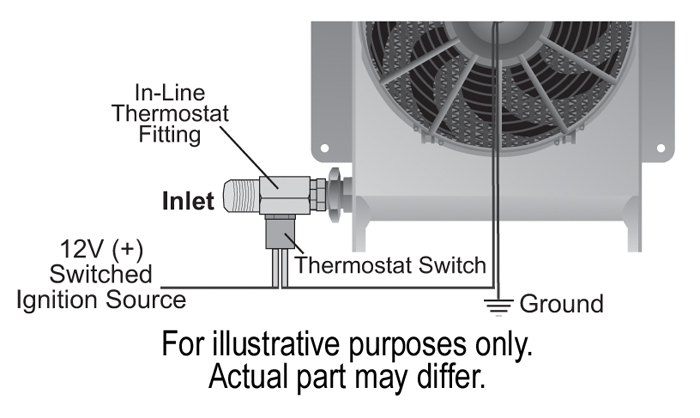

With its own air supply, this new remote cooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. Featuring our top of the line aluminum 25-row Stacked Plate cooler coupled with a Tornado fan and aluminum shroud, this universal kit comes with a complete installation kit to install easily on most vehicle engines. Also included is an 180°F in-line thermostat for activating the electric fan. The Hyper-Cool Engine Oil Cooler kit is perfect for applications where space is limited but engine cooling is a necessity.

Specifications
  • Cooler style: Stacked Plate
  • Inlet size: -10AN / 7/8"-14 o-ring female x -8AN male
  • Fan size: 8"
  • CFM: 500
  • Amp draw: 4.8
  • Width: 13"
  • Height: 10"
  • Depth: 5-5/8"
  • Inlet dim: 10"
  • Mounting: 7-1/2" x 9"
  • Sandwich adapter inlet size: 3/8" NPT
  • Hose size: 1/2"
  • Hose length: 10'
  • 46,000 BTU's Per Hour
  • 16oz. Additional Fluid Capacity
  • Cooler is rated at 250psi working pressure and 300psi burst strength
Features
  • Mounts anywhere space permits
  • Electric fan supplies optimum airflow
  • Dramatically extends engine and transmission life
  • High efficiency Stacked Plate cooler
  • Clear anodized aluminum shroud
  • 500 CFM reversible Tornado electric fan
  • -8AN inlet size
  • 46,000 BTU's Per Hour

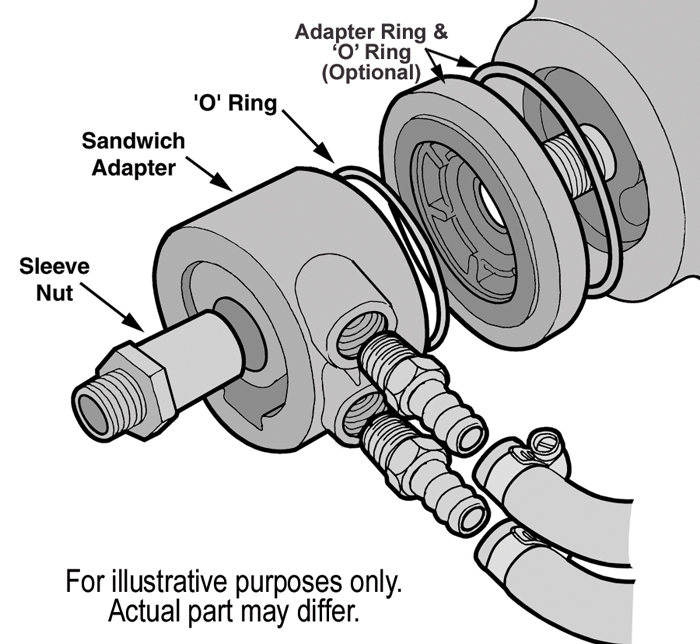

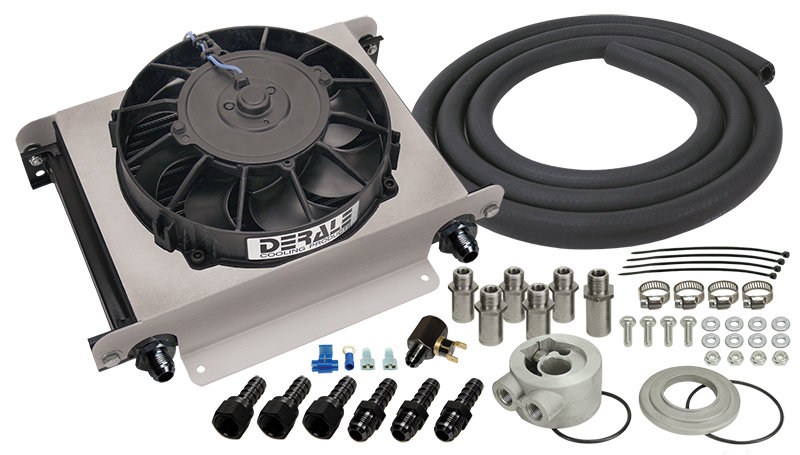

  • Engine cooler kit includes fan mounted cooler, universal thermostatic sandwich adapter, 13/16-16", 3/4-16", 18mm, 20mm, & 22mm sleeve nuts, two -8AN fittings, four 1/2" hose barb fittings, 180°F In-line thermostat,10 ft. OEM spec hose & hardware
