25 Row Hyper-Cool Remote Transmission Cooler Kit, -6AN
Hyper-Cool Transmission Cooler Kit, -6AN 13960, 13760, 15860, 15960, 15660, 15865, 137xx, 158xx, 13764
Description
Equipped with our top of the line 25 row stacked plate cooler, this new remote cooler can literally be mounted almost anywhere. Making it a popular addition for performance cars, hot rods, muscle cars and trucks. Our Stacked Plate cooler coupled with a Tornado fan and aluminum shroud, this kit comes with a complete installation kit to install easily on all vehicles with 5/16" or 3/8" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. The Hyper-Cool is perfect for extreme duty towing and hauling and can add years to the life of your transmission.

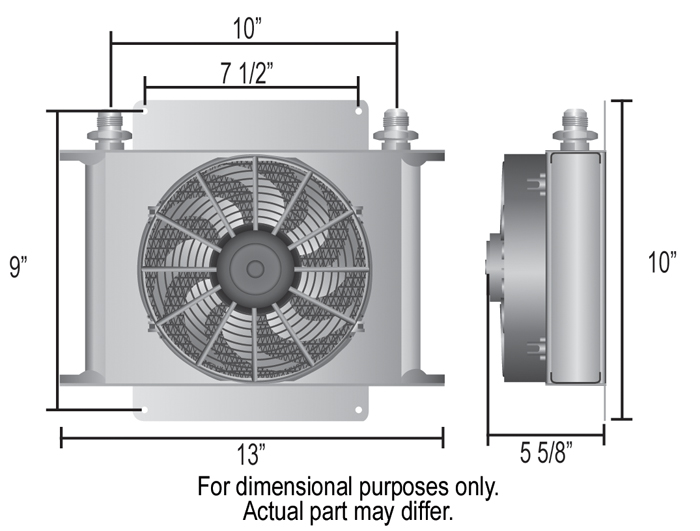

Specifications
- Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8"-14 o-ring female x -6AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8
- Width: 13"
- Height: 10"
- Depth: 5-5/8"
- Inlet dim: 10"
- Mounting: 7-1/2" x 9"
- Hose size: 3/8"
- Hose length: 10'
- 46,000 BTU's Per Hour
- 16oz. Additional Fluid Capacity
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency Stacked Plate 10000 Series cooler
- Clear anodized aluminum shroud
- 500 CFM Tornado electric fan
- -6AN inlet size
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength

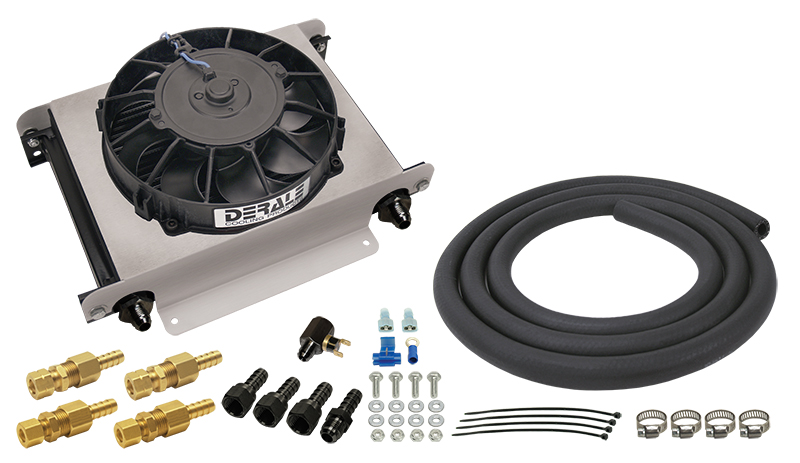

- Transmission cooler kit includes fan mounted cooler, two -6AN fittings hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16" and 3/8" compression fittings, and hardware
