Part Number 13735

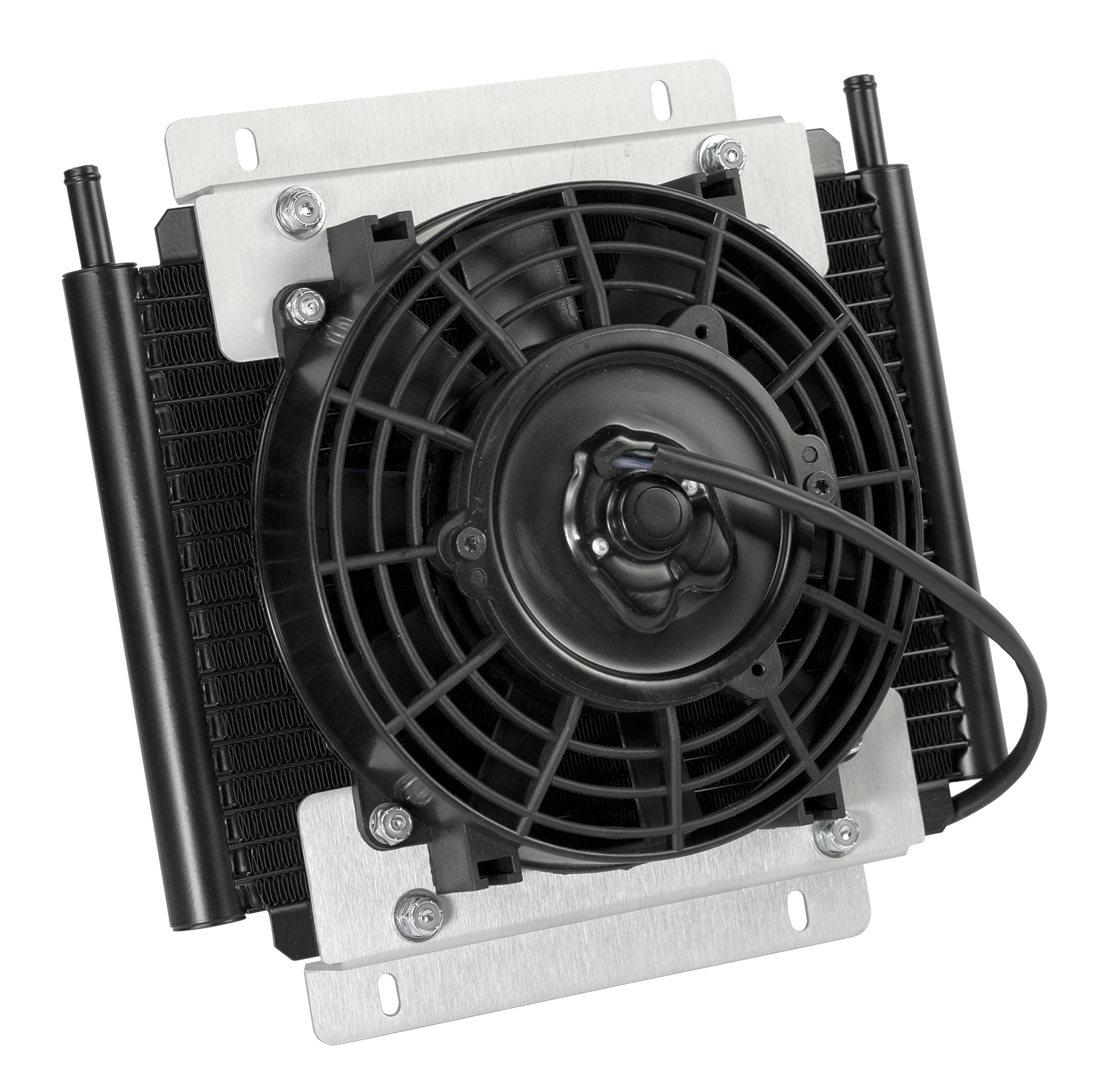

Plate & Fin Remote Fluid Cooler, 18 Row, 11/32
Description
Cooler is rated at 250psi working pressure and 300psi burst strength. It is recommended for light-duty towing and hauling or when pulling consistent grades. A great addition to compact cars and smaller SUVs that will add years to the life of a transmission at a reasonable price. Also recommended for power steering and fuel cooling. Mounting hardware included. Made in USA.
Features
- Mounts anywhere space permits
- Efficient Plate & Fin 18 row cooler
- 500 CFM reversible 8" Tornado electric fan
- Dramatically extends engine and transmission life
- 11/32" barb inlets
- Clear anodized aluminum shroud
- Recommended for transmissions, power steering, & fuel
- Derale coolers are rated at 250psi working pressure and 300psi burst strength
Specifications
- Cooler style: Plate & Fin
- Inlet size: 11/32" Barb
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

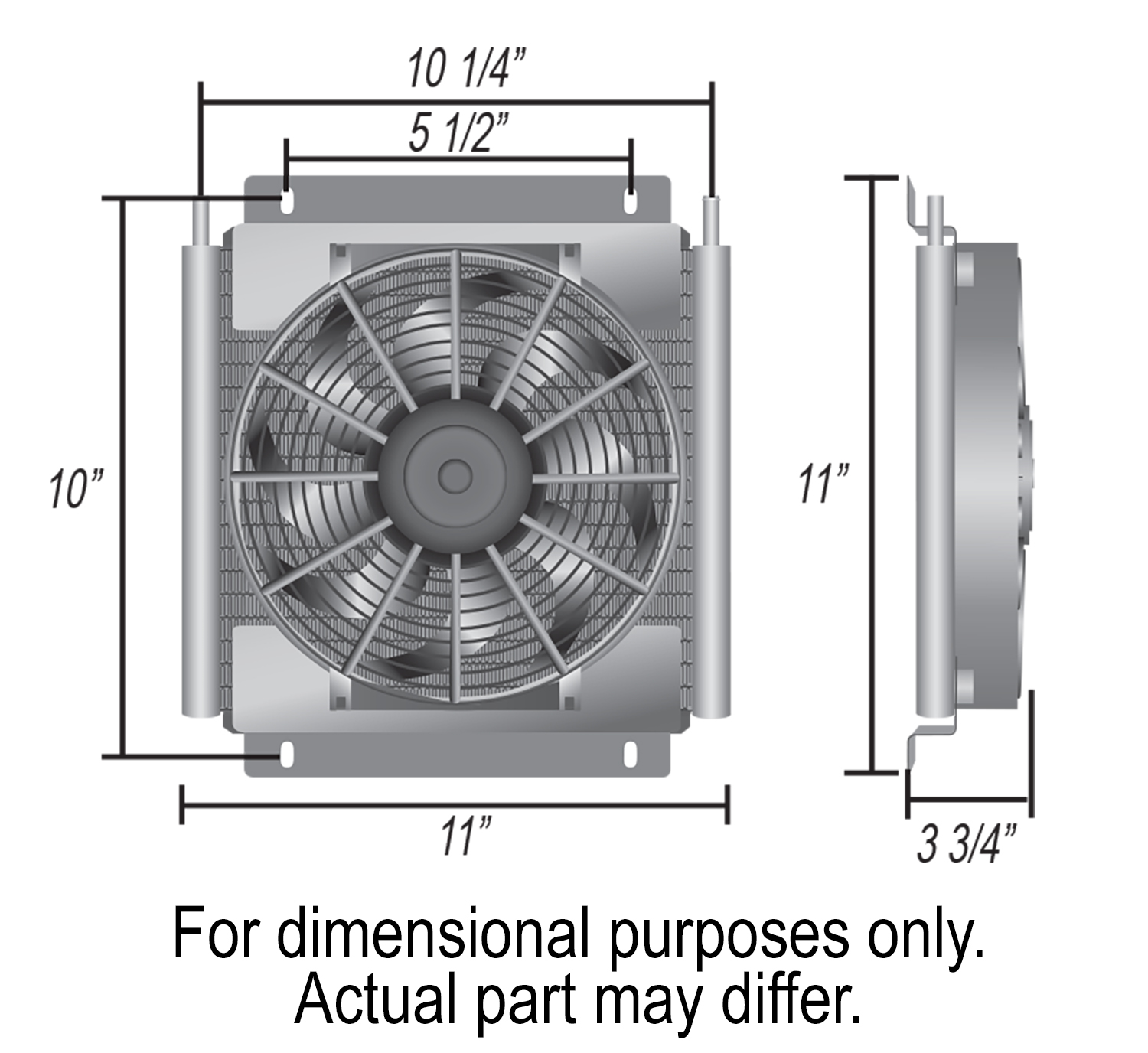

- Width: 11"
- Height: 11"
- Depth: 3-3/4"
- Inlet dim: 10-1/4"
- Mounting: 10-1/4" x 5-1/2"
- Cooler fluid capacity: 19.6 oz
- 20,000 BTU/ Hr
- Barb size: 11/32"
- Airflow: Puller (reversible)
