Part Number 25719
1/2'' NPT Fluid Control Thermostat
Description

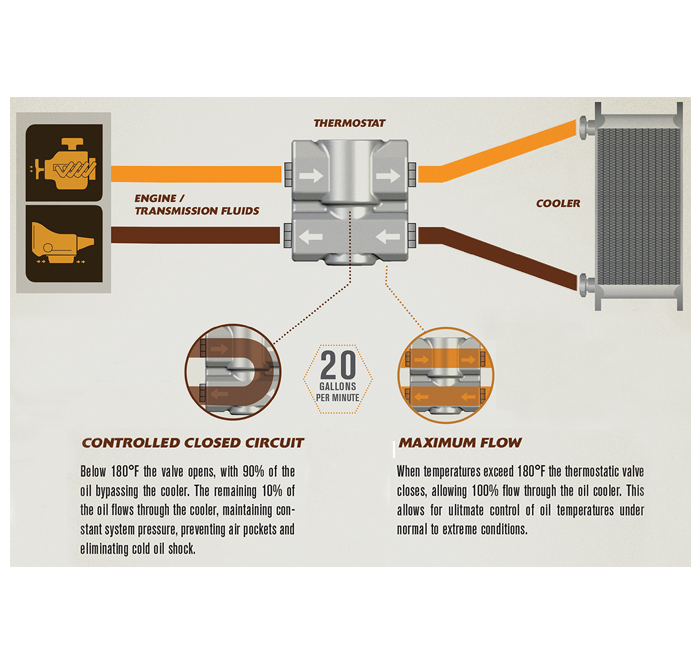

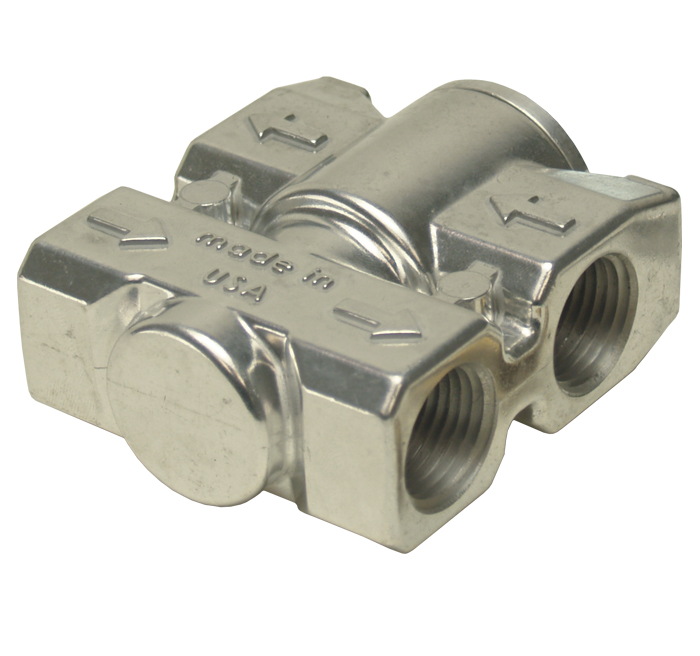

This Billet Style Cast Aluminum Fluid Control Thermostat with 1/2" NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180 degrees to change flow direction.
Features
- Bypasses cooler until fluid temperature reaches 180°F
- Provides quicker warm-up temperatures
- Perfect for cold weather climates
- Can be rotated 180 degrees to switch flow direction
- Flows up to 20 gallons per minute
- Rated up to 200 psi
- Ultra bright finish
- New billet style design
- 1/2" NPT inlet/outlet ports
Specifications
- Activating temperature: 180°F
- Inlet size: 1/2"
- Aluminum
