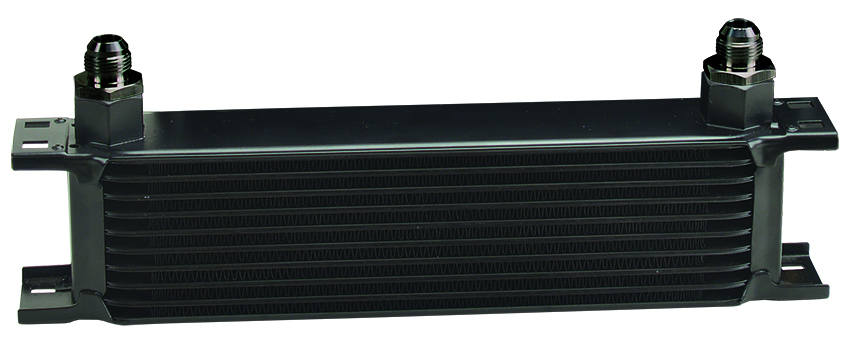

Part Number 51008

10 Row Series 10000 Stack Plate Cooler, -8AN


Our most efficient heat exchanger, the all aluminum 10 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished -8AN male adapter fittings.

  • Designed for engine and transmission cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • 10 row cooler design
  • Male -8AN aluminum O-ring inlet fittings
  • 20,000 BTU's Per Hour
  • Cooler capacity is an additional 6oz
  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -8AN male

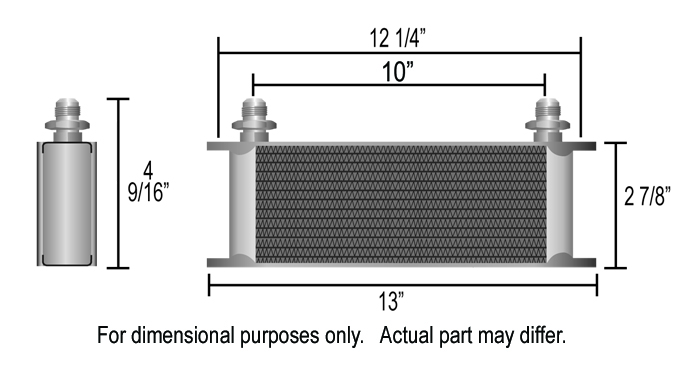

  • Width: 13"
  • Height: 4-9/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 2-7/8"
