19 Row Series 10000 Stack Plate Cooler, -8AN
Stack Plate Oil Cooler 19 Row, -8AN 51908
Description

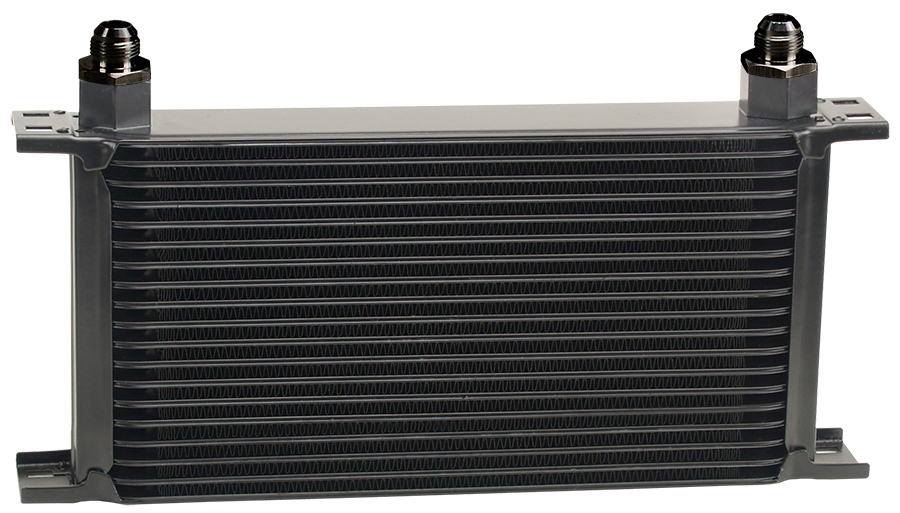

Our most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished -8AN male adapter fittings.
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- High efficiency Stacked Plate 19 row cooler
- Male -8AN aluminum O-ring inlet fittings
- 37,000 BTU's Per Hour
- Derale coolers are rated at 250psi working pressure and 300psi burst strength
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -8AN male

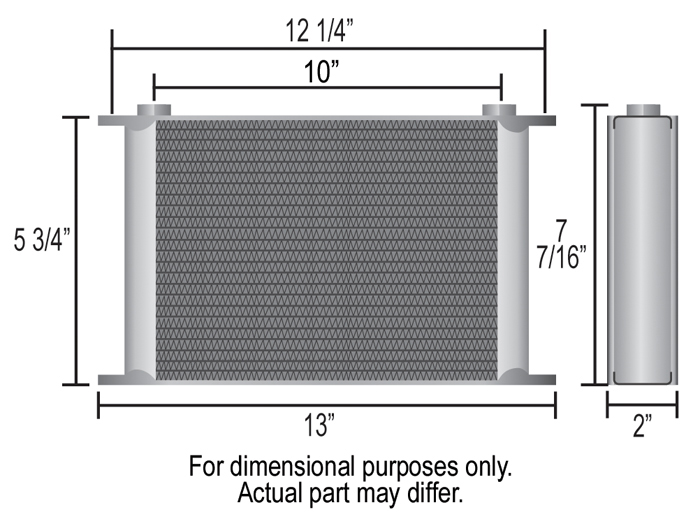

- Width: 13"
- Height: 7 7/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12 1/4" x 5 3/4"
- Fluid Capacity:12oz
