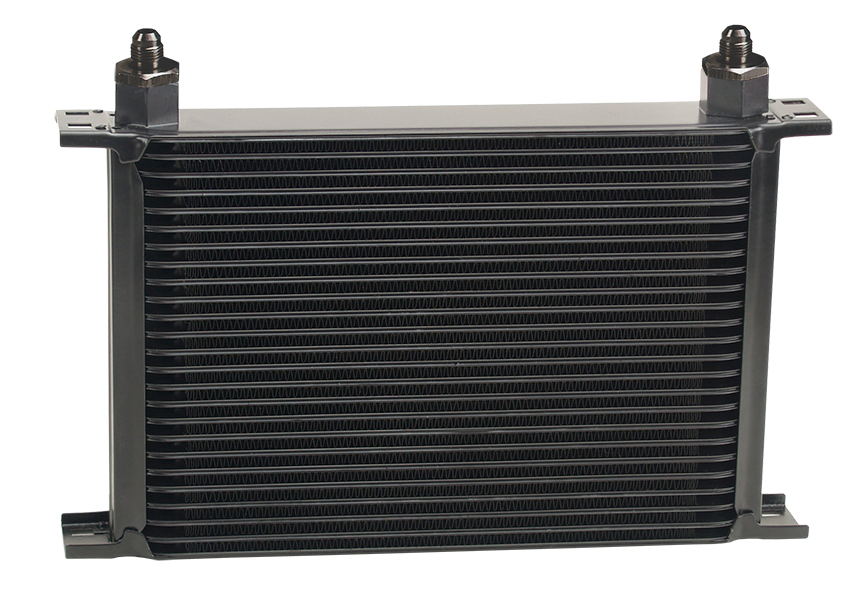

25 Row Series 10000 Stack Plate Cooler, -6AN

Stack Plate Oil Cooler 25 Row, -6AN 52506
525067

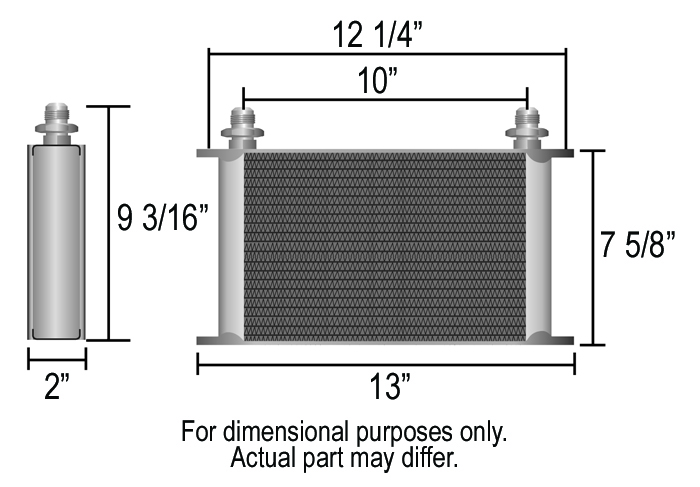

52506-Dimensions
Description

Our most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -6AN male adapter fittings.

Features
  • Designed for engine and transmission cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • 25 row cooler design
  • Male -6AN aluminum O-ring inlet fittings
  • 46,000 BTU's Per Hour
Specifications
  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -6AN male
  • Width: 13"
  • Height: 9-3/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 7-5/8"
  • 46,000 BTU's Per Hour
  • Fluid Capacity:16oz
