Part Number 14202
GM TH-400 Deep Transmission Cooling Pan
Description

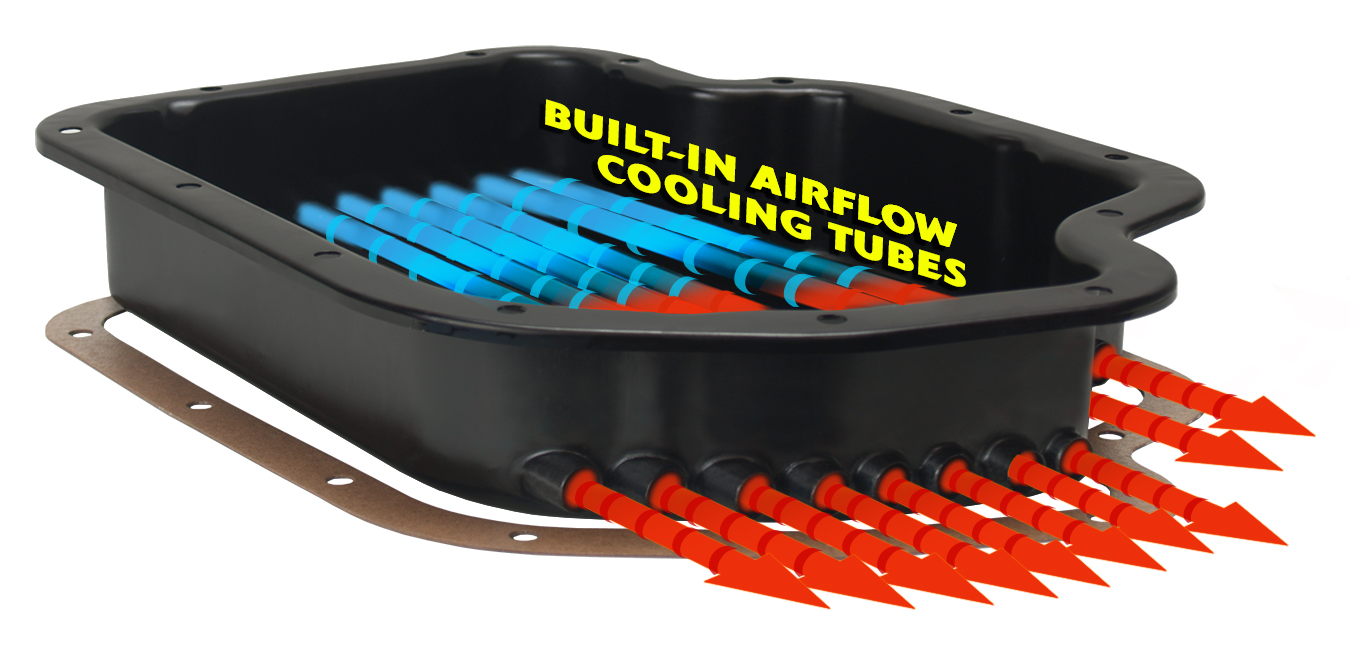

Derale's TH400 Deep Transmission Cooling Pan #14202 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
Specifications

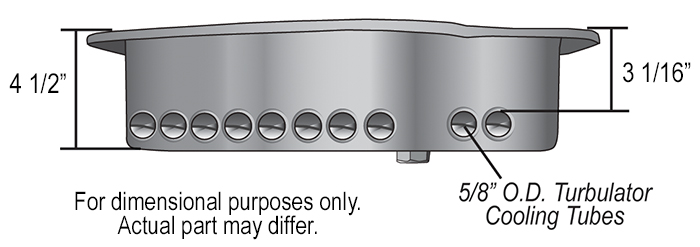

- Pan Dimensions: 16 1/2" Length x 12 13/16" Width x 4 1/2" Height
Drain plug adds 1/4" to height - Tube depth: 3-1/16"
- Extra capacity from Std. OE pan: 3 qts. 8 oz.
- Extra capacity from Deep OE pan: 1 qt. 3 oz.
- Temp bung size: 1/8" NPT
- Drain plug size 1/2"-20
- Replacement drain plug Derale 14000
Features
- Heavy gauge stamped steel construction
- Two stage heat dissipating black finish
- 1/8" NPT temperature sender port
- Reduces fluid temperatures up to 50°F
- Increases fluid capacity by up to 3 qts. 8 oz.

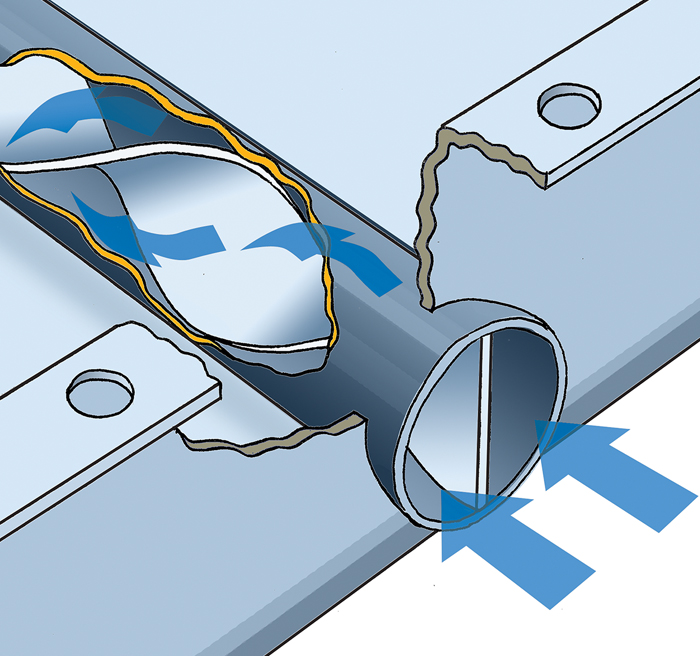

- Patented turbulator cooling tubes add heat transfer capability

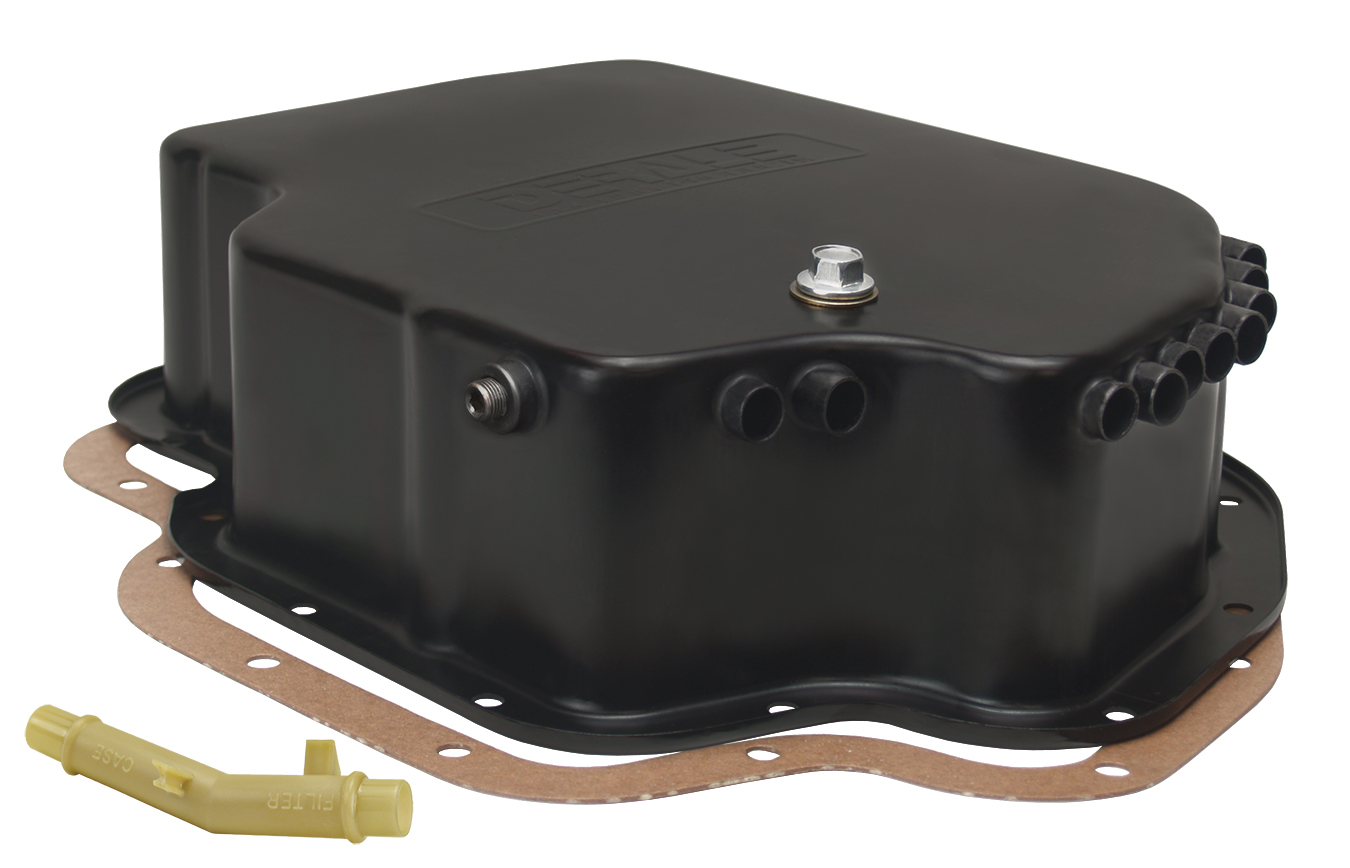

- Magnetic drain plug with increased magnetic strength and rubber/steel washer
- Use Derale 14002 filter pickup tube if needed

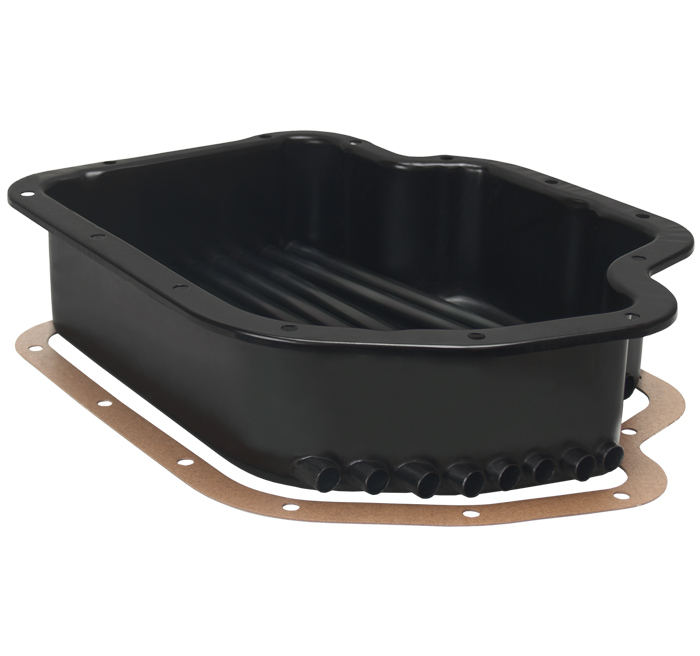

Part No. 14202 Transmission Cooling Pan
