Part Number 14204

GM 700R4, 4L60 & 4L60E Transmission Cooling Pan

Description

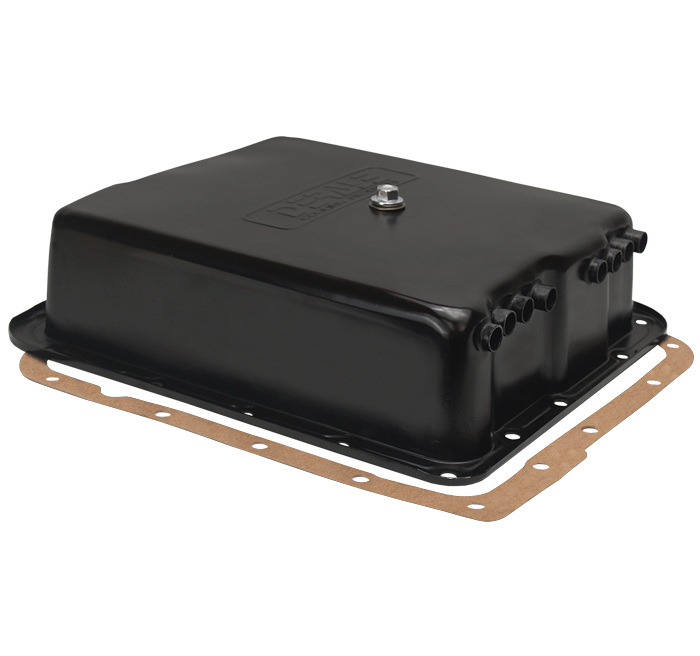

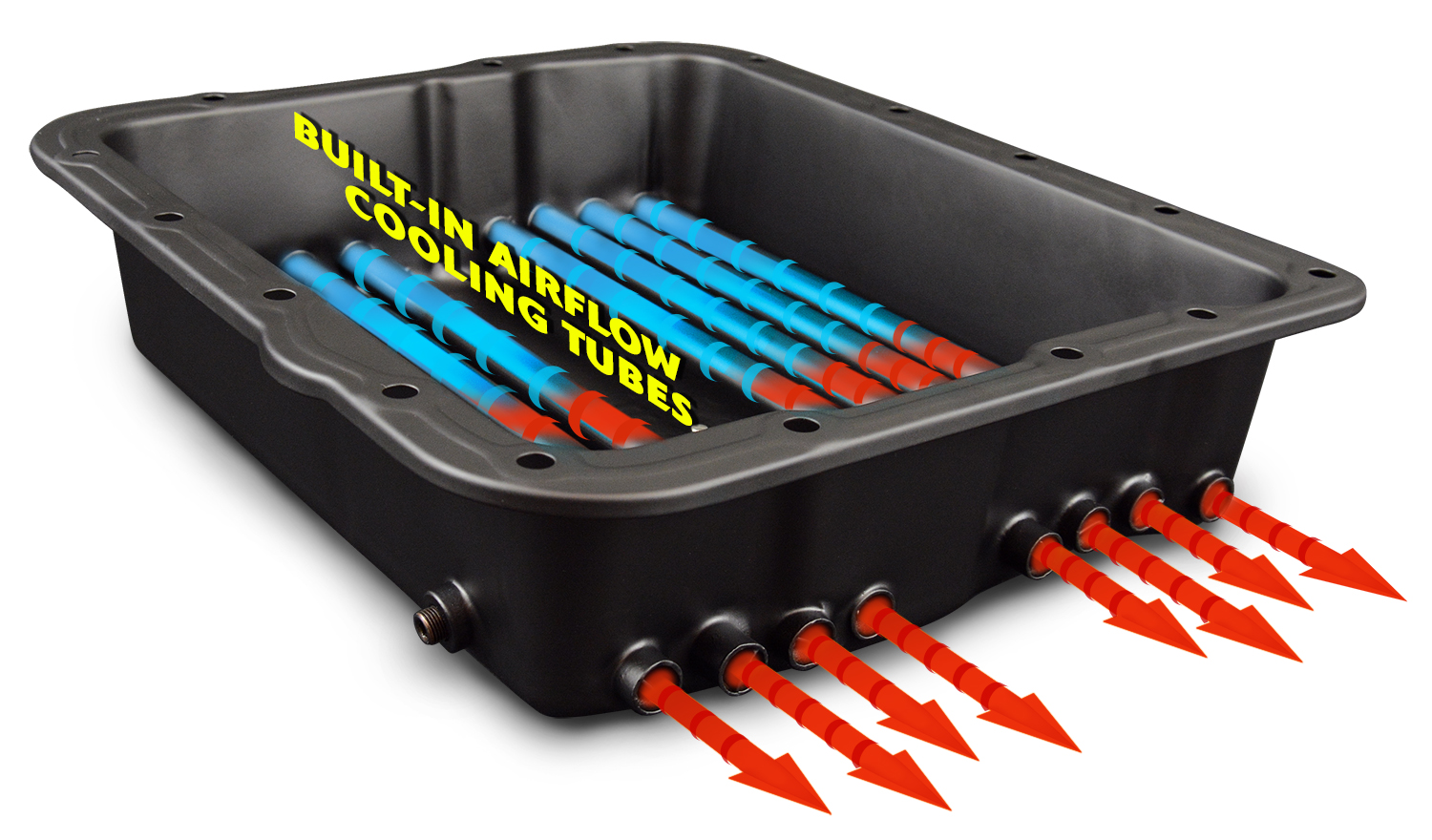

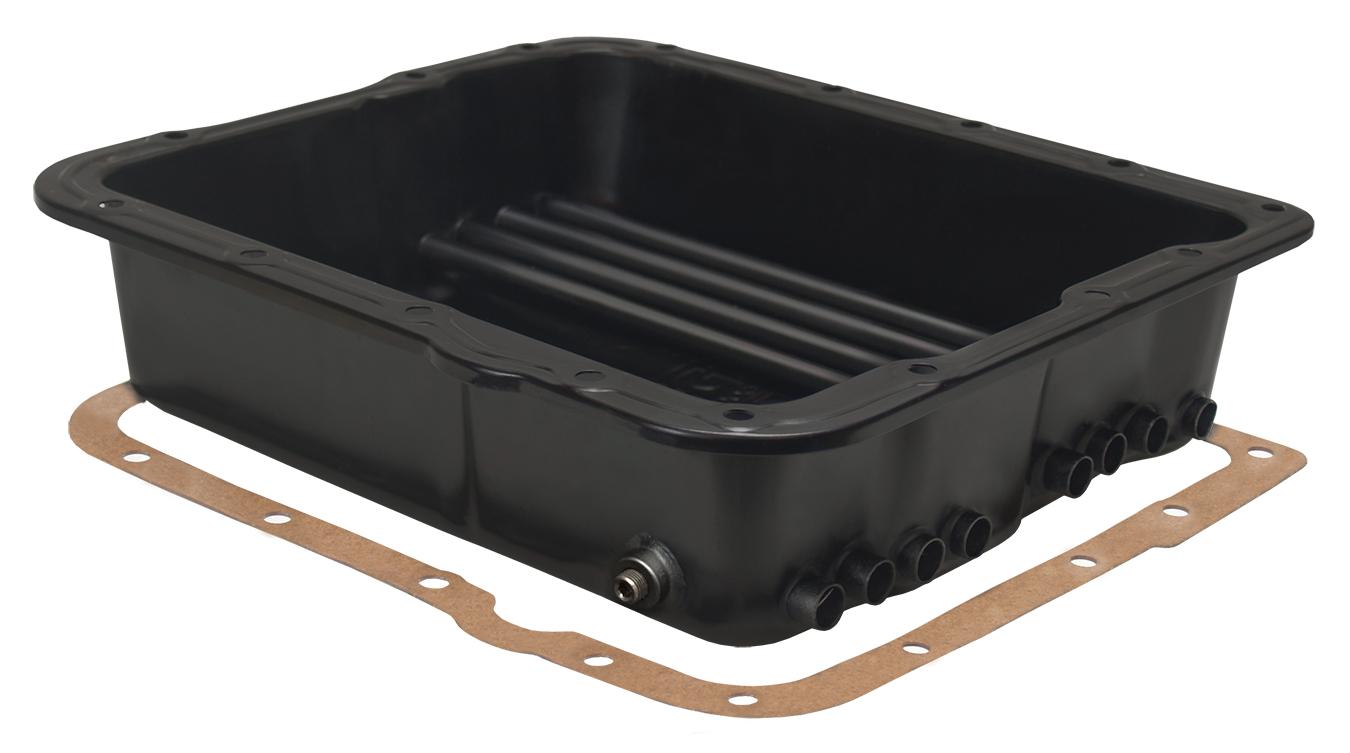

Derale's Transmission Cooling Pan #14204 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's popular 700R4/4L60 & 4L60E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Specifications

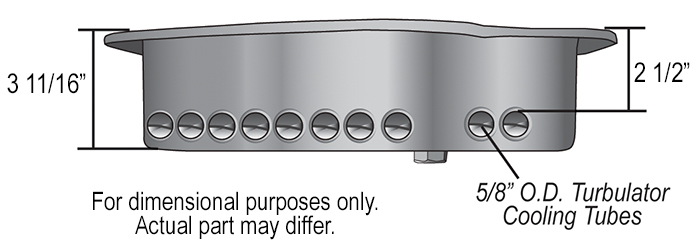

  • Pan Dimensions: 14 7/8" Length x 13 5/16" Width x 3 11/16" Height
    Drain plug adds 1/4" to height
  • Tube depth: 2-1/2"
  • Temp bung size: 1/8" NPT
  • Drain plug size 1/2"-20
  • Replacement drain plug Derale 14000
Features
  • Heavy gauge stamped steel construction
  • Two stage heat dissipating black finish
  • 1/8" NPT temperature sender port
  • Reduces fluid temperatures up to 50°F
  • Increases fluid capacity by 2 qts. 4 oz.

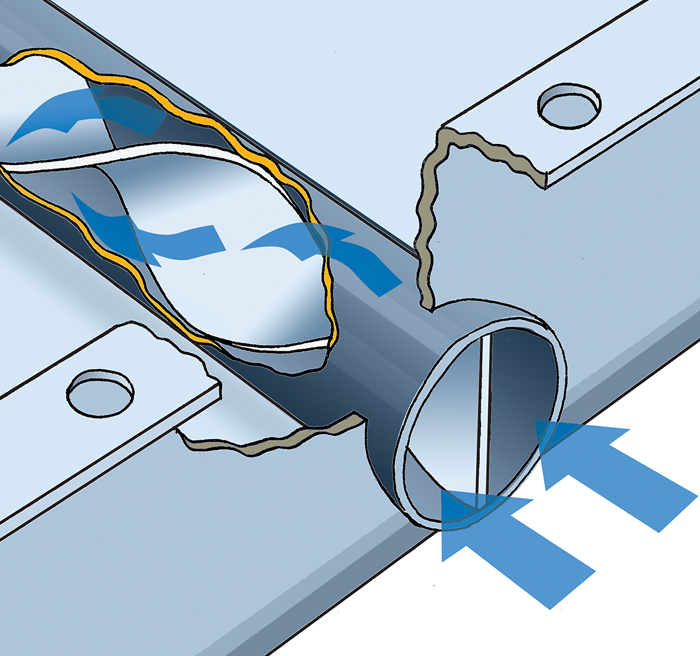

  • Patented turbulator cooling tubes add heat transfer capability
  • Magnetic drain plug with increased magnetic strength and rubber/steel washer
  • Uses OEM filter with no filter extension required

    Part No. 14204 Transmission Cooling Pan
