Part Number 14207

GM 4L80 & 4L80E Transmission Cooling Pan

Description

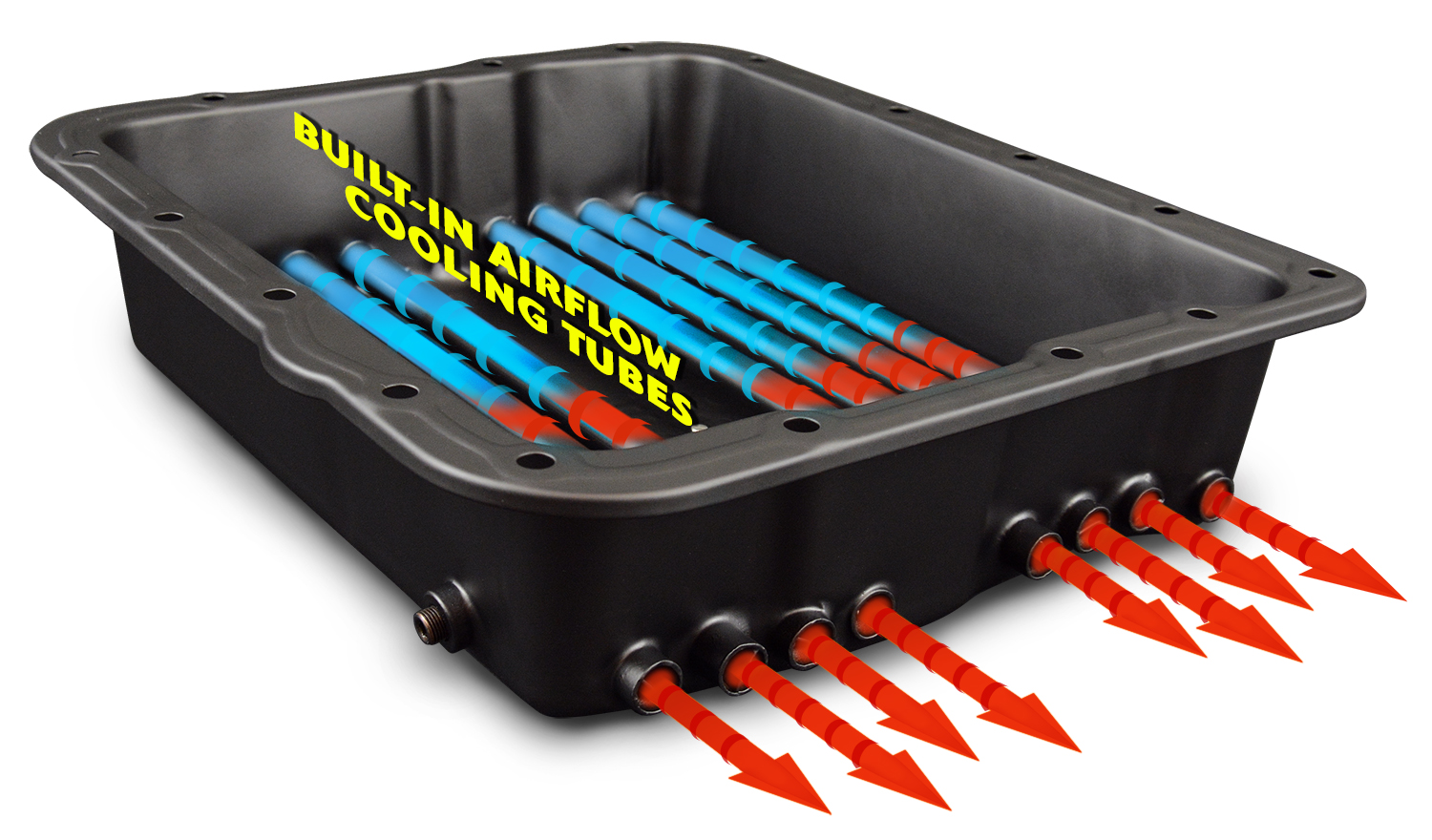

Derale's Transmission Cooling Pan #14207 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's heavy duty 4L80E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Specifications
  • Pan Dimensions: 19" Length x 13 3/8" Width x 4 1/4" Height
    Drain plug adds 1/4" to height
  • Tube depth: 2-3/4"
  • Temperature bung size: 1/8" NPT
  • Drain plug size 1/2"-20
  • Replacement drain plug Derale 14000
Features
  • Heavy-gauge stamped steel construction
  • Two stage heat dissipating black finish
  • 1/8" NPT temperature sender port
  • Reduces fluid temperatures up to 50°F
  • Increases fluid capacity by 4 qts. 16 oz.

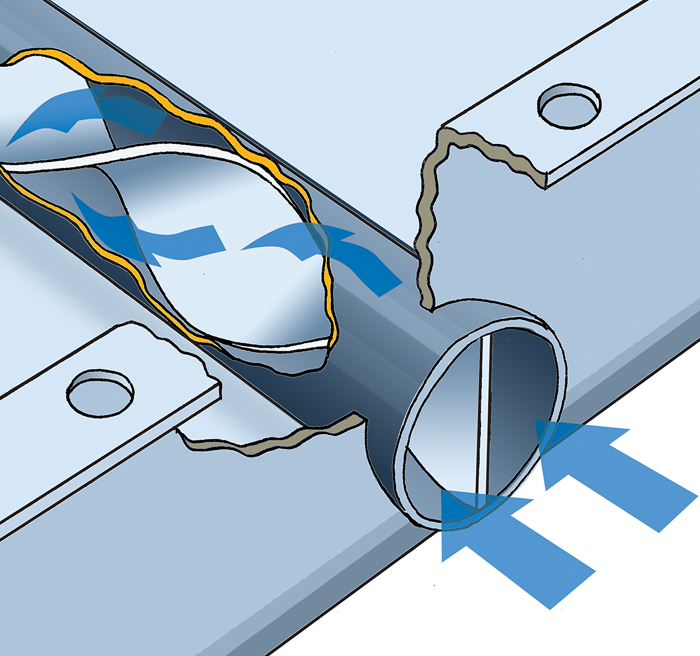

  • Patented turbulator cooling tubes add heat transfer capability
  • Magnetic drain plug with increased magnetic strength and rubber/steel washer
  • Uses OEM filter with no filter extension required

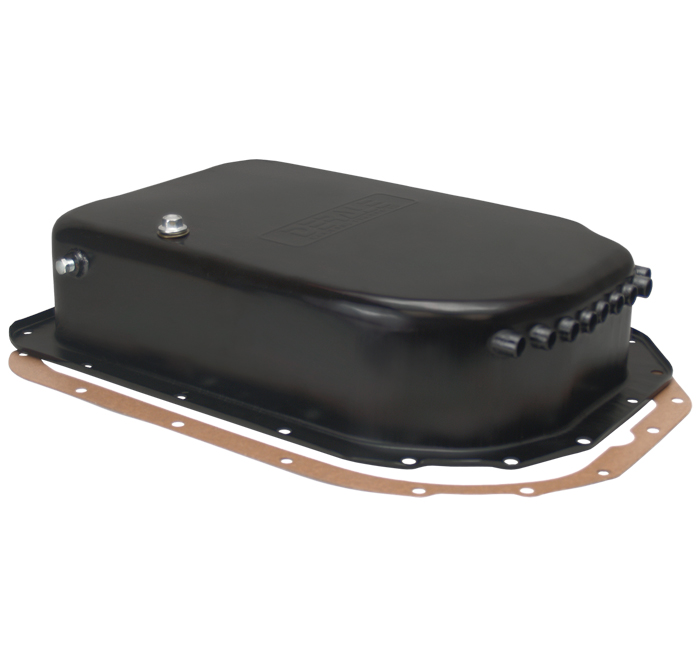

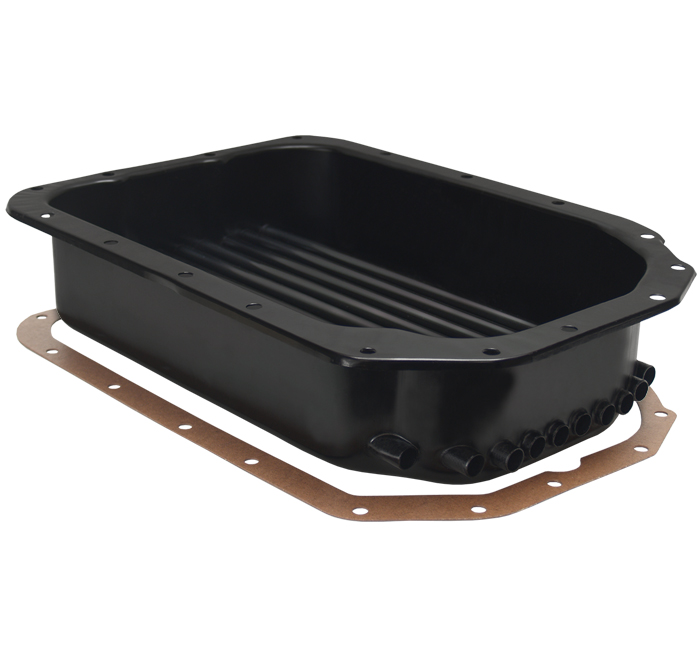

    Part No. 14207 Transmission Cooling Pan
