Sean Puz's "Excalibur" by 1 of One Customs

About Sean Puz's "Excalibur" by 1 of One Customs

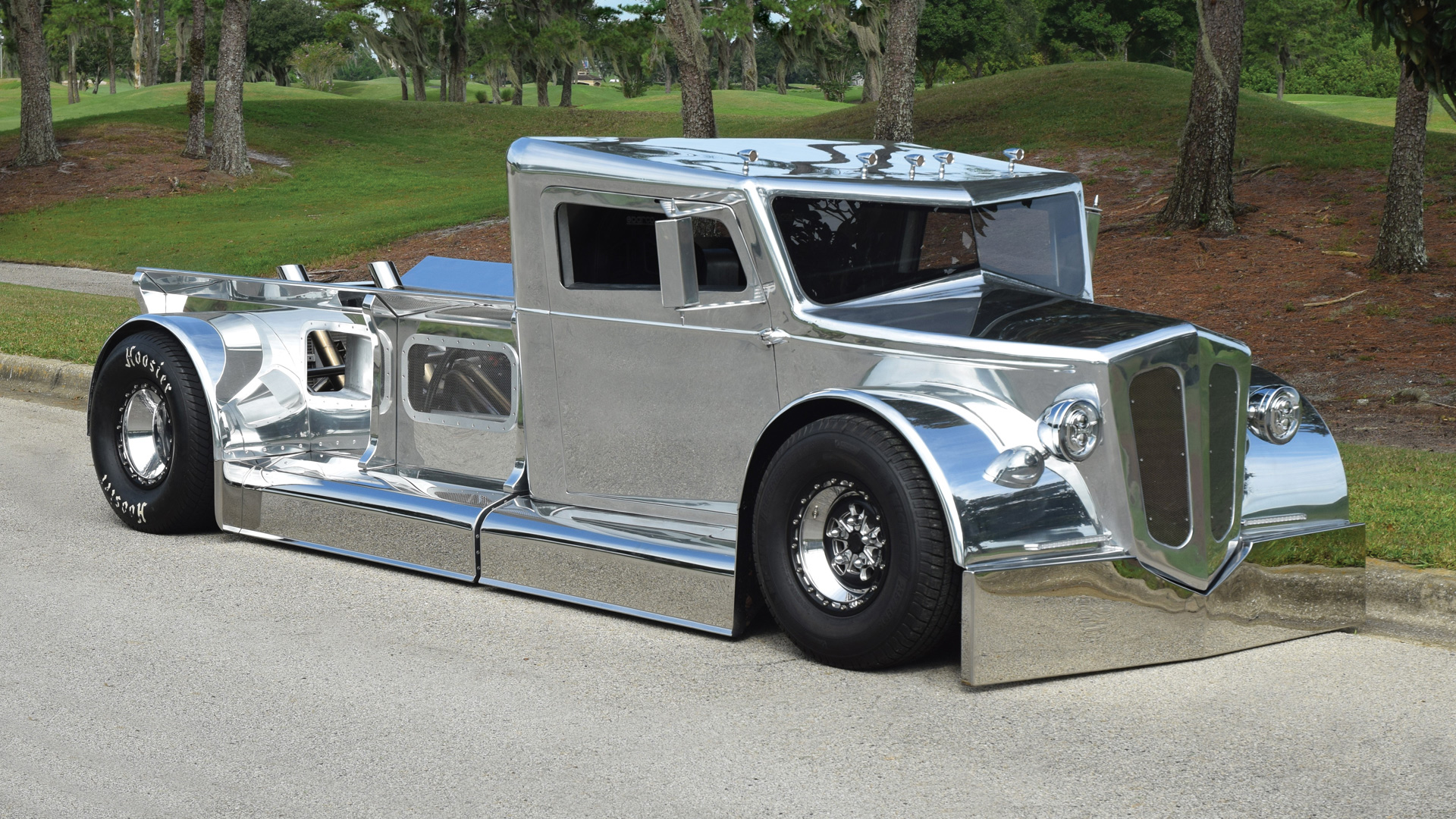

Excalibur was built by our good friend Sean Puz of “1 of One Customs” out of Florida. This build is custom from top to bottom. Completely hand built from scratch. It features a complete custom Derale Cooling system complete with custom fabricated radiators built out of Derale Hi-Flow Fluid Coolers. The build also utilizes Derale electric fans helping to keep it all cool. Excalibur won first place in the 2021 International RATical Rod Build/Drive Off.

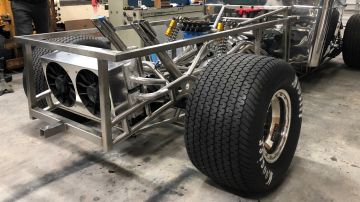

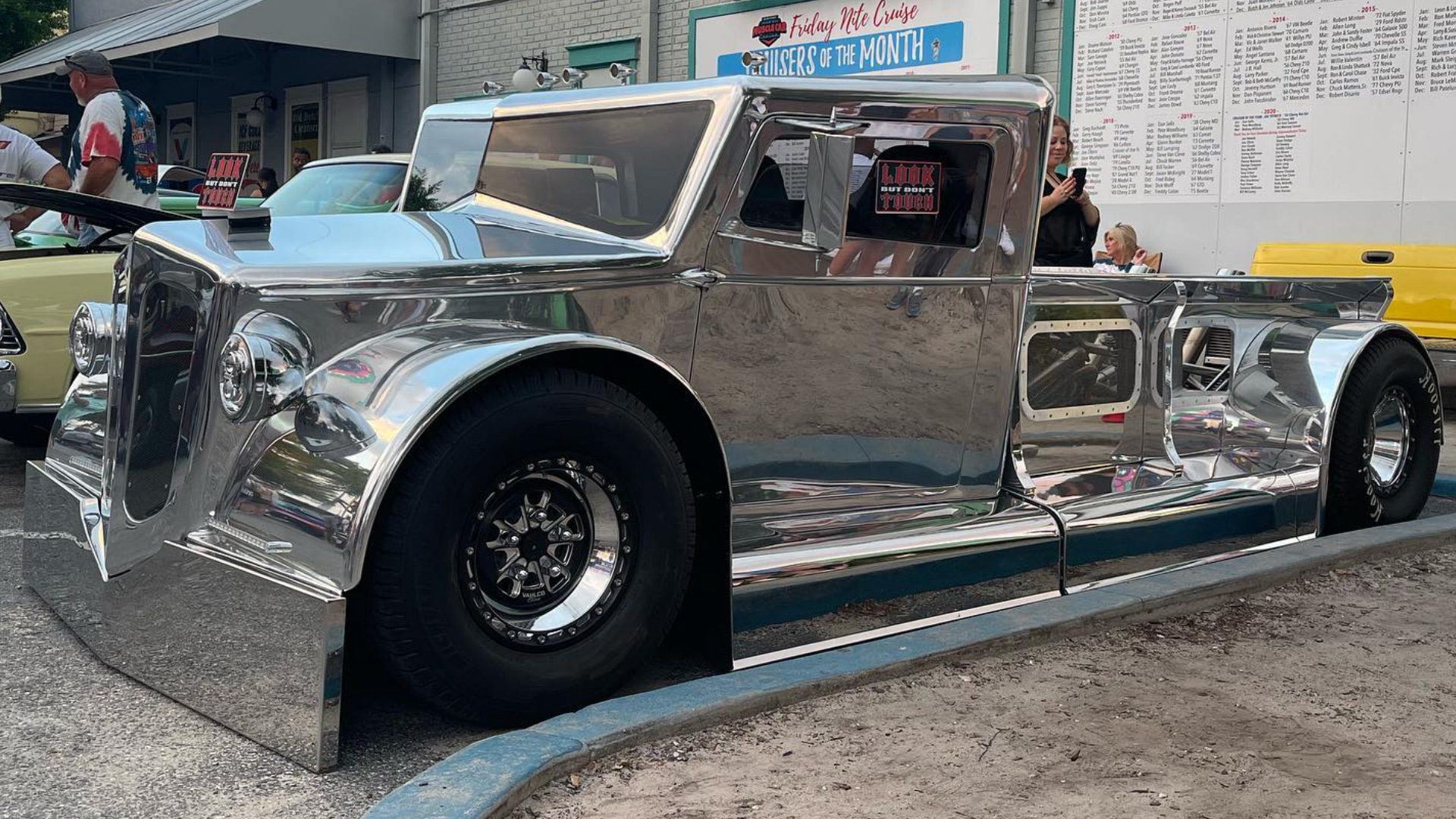

Here is a write-up about the vehicle from Sean Puz.  “The Excalibur has an all-aluminum body structure and skin, a polished stainless steel tubular chassis and suspension, and an all-aluminum 6.2 liter LS3 making 540hp. Fuel is stored in a custom aluminum tank and delivered to an AED Competition fuel system with a custom-made carburetor. It is coupled to a BLR 700R4 transmission, sporting a Boss Hog 2,700 stall torque converter, then mated to a Frankland racing quick change rear end. So the engine, transmission, and rear are on a swing arm/cradle. I’m pretty proud of how that and all the other ideas are working. We used an Optima yellow top battery to crank up, and Stainless Works custom exhaust to exit the fire. To keep all that nice and cool we have a complete Derale Performance cooling system. I chose them because they’re the best in the business. Having a radiator in the back is a monumental challenge here in Florida. But not to worry, Derale is still victorious. Also, I designed and developed a custom hydraulic ride-height control. This enables the truck to lay flat on the ground, and then be able to raise up to 8 inches high if needed. After the ride height is set, the O’hlins USA double adjustable coil-over suspension handles the bumps like no other.”

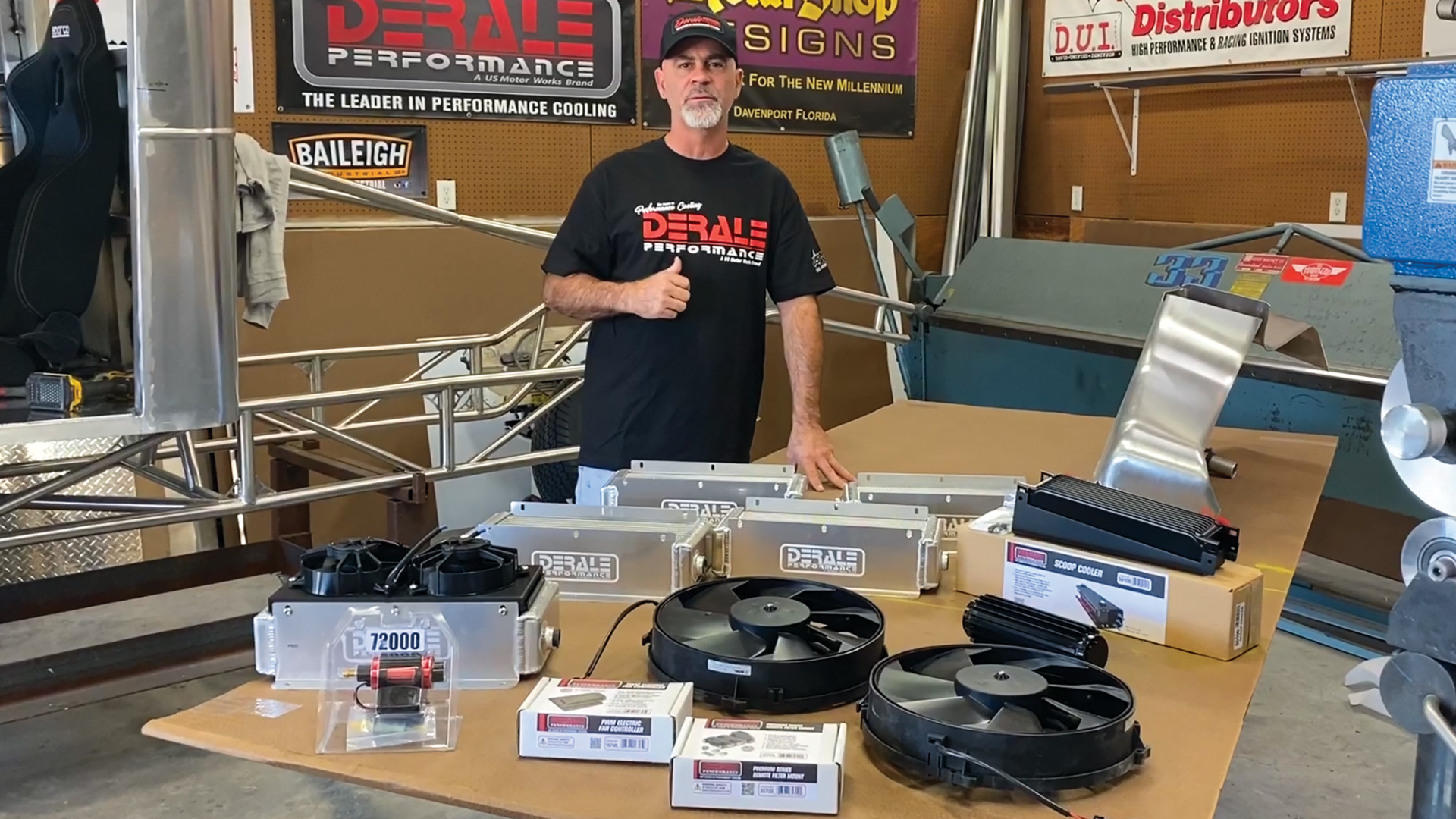

Parts List

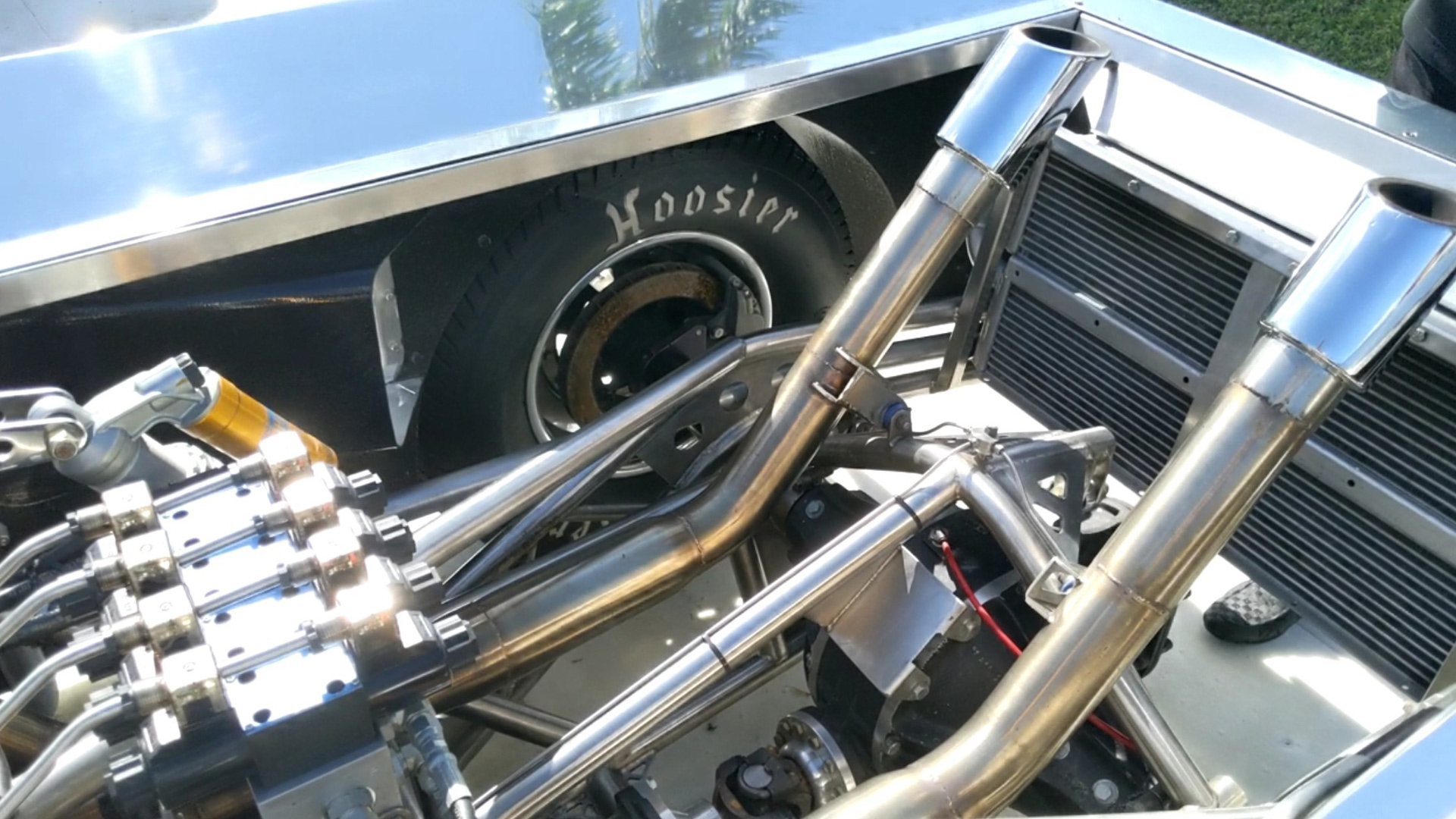

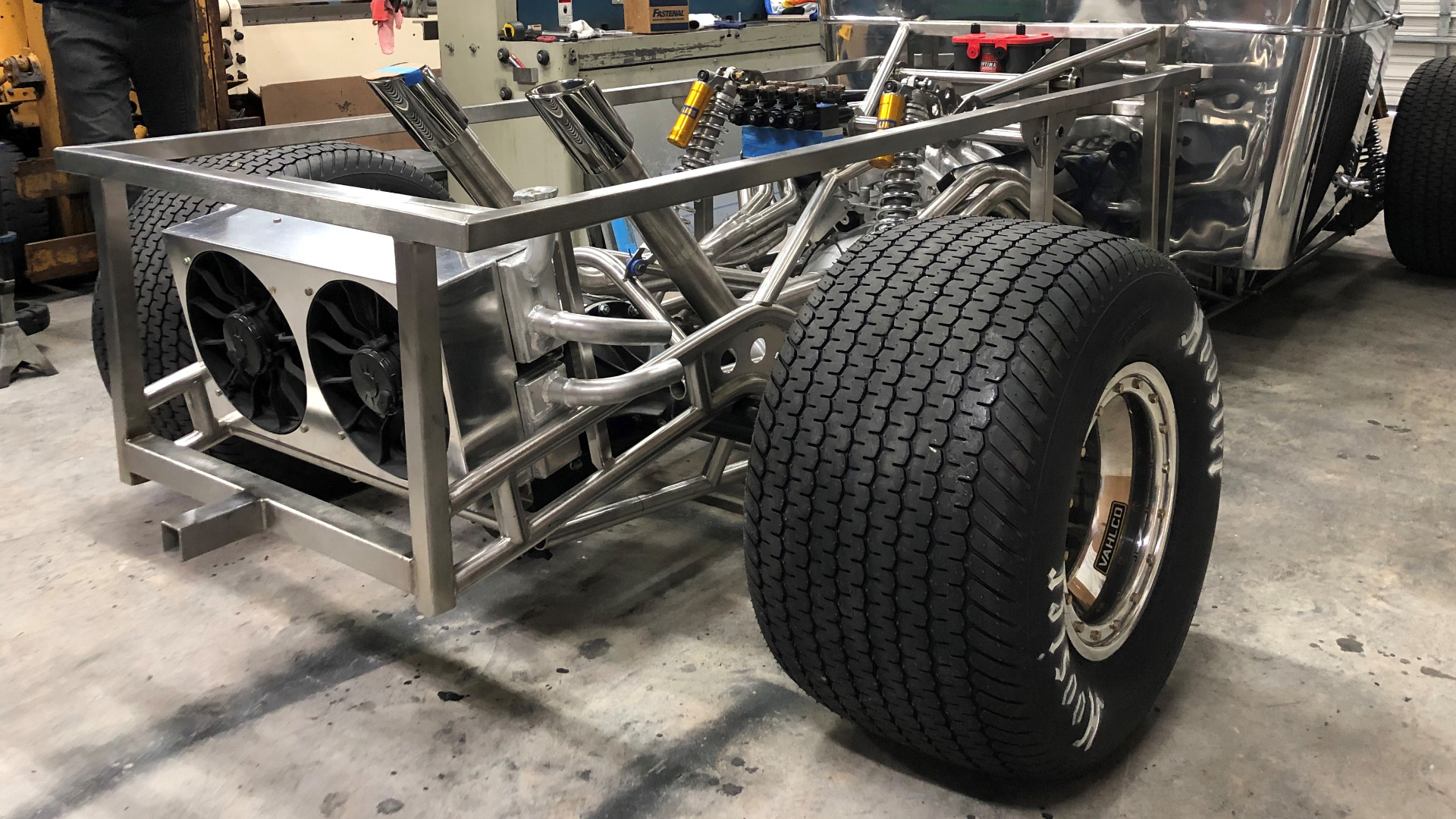

  • 61178 - Four 11 Row Hi-Flow Fluid Racing Coolers, Modified to build a radiator as seen in picture 4
  • 16924 - Two 12" Electric Fans

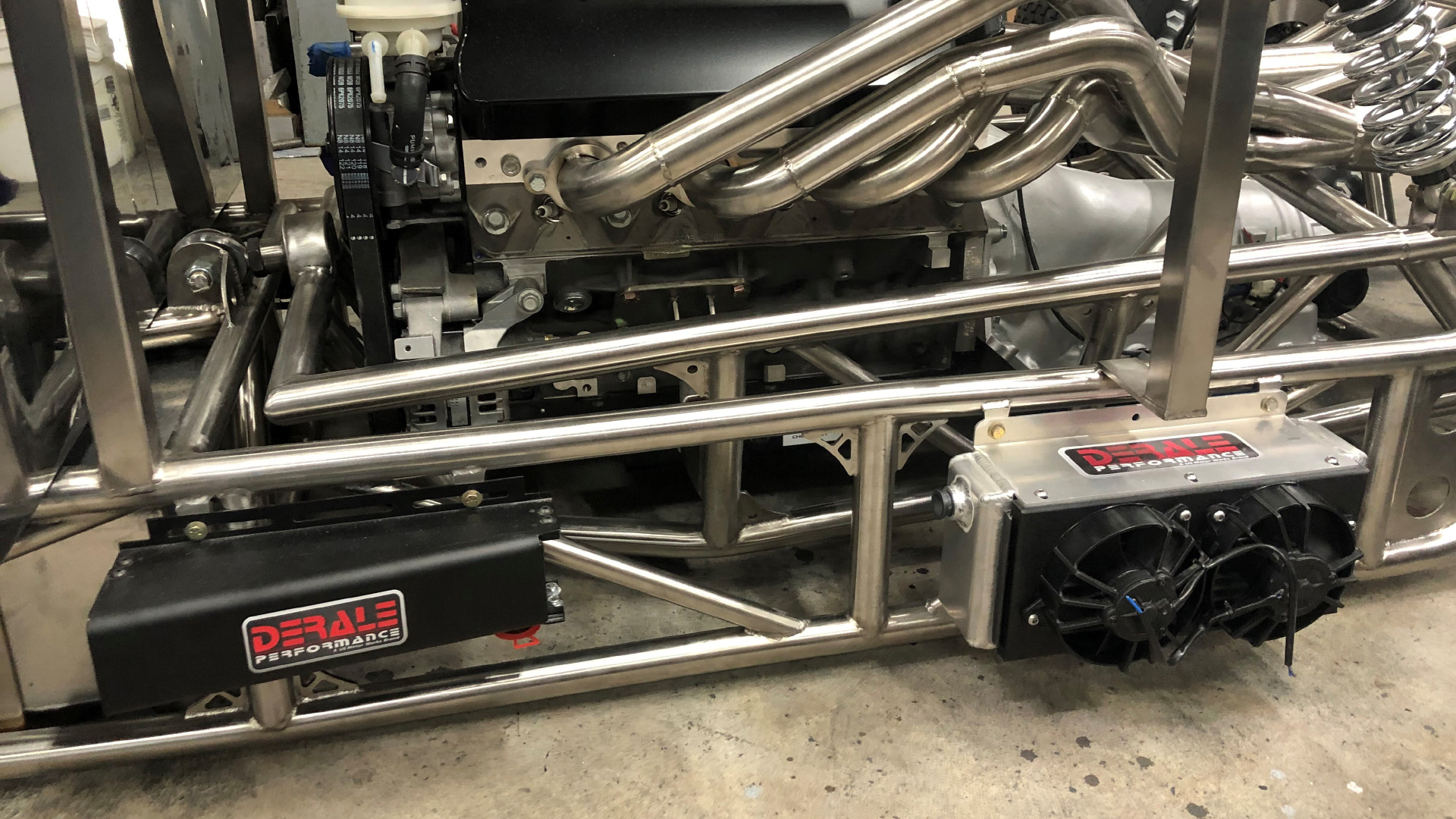

  • 65840 - 11 Row Hi-Flow Racing Remote Fluid Cooler, for cooling the transmission fluid
  • 16797 - PWM Electric Fan Controller for controlling the Electric Fans
  • 50100 - Scoop Cooler for cooling the power steering fluid
  • 13279 - 2 Pass 10" Black Anodized Heat Sink Cooler
  • 35709 - Engine Oil Premium Filter Mount
  • 72000 - Universal Inline Fuel Pump Kit for pumping gasoline

Facebook  View Sean Puz's "Excalibur" Instagram

Facebook  View Sean Puz's "Excalibur" Facebook Page

Excalibur1
Excalibur2
Excalibur3
Excalibur4
Excalibur5
Excalibur6
Excalibur7
Excalibur8
Excalibur9
