Part Number 16843

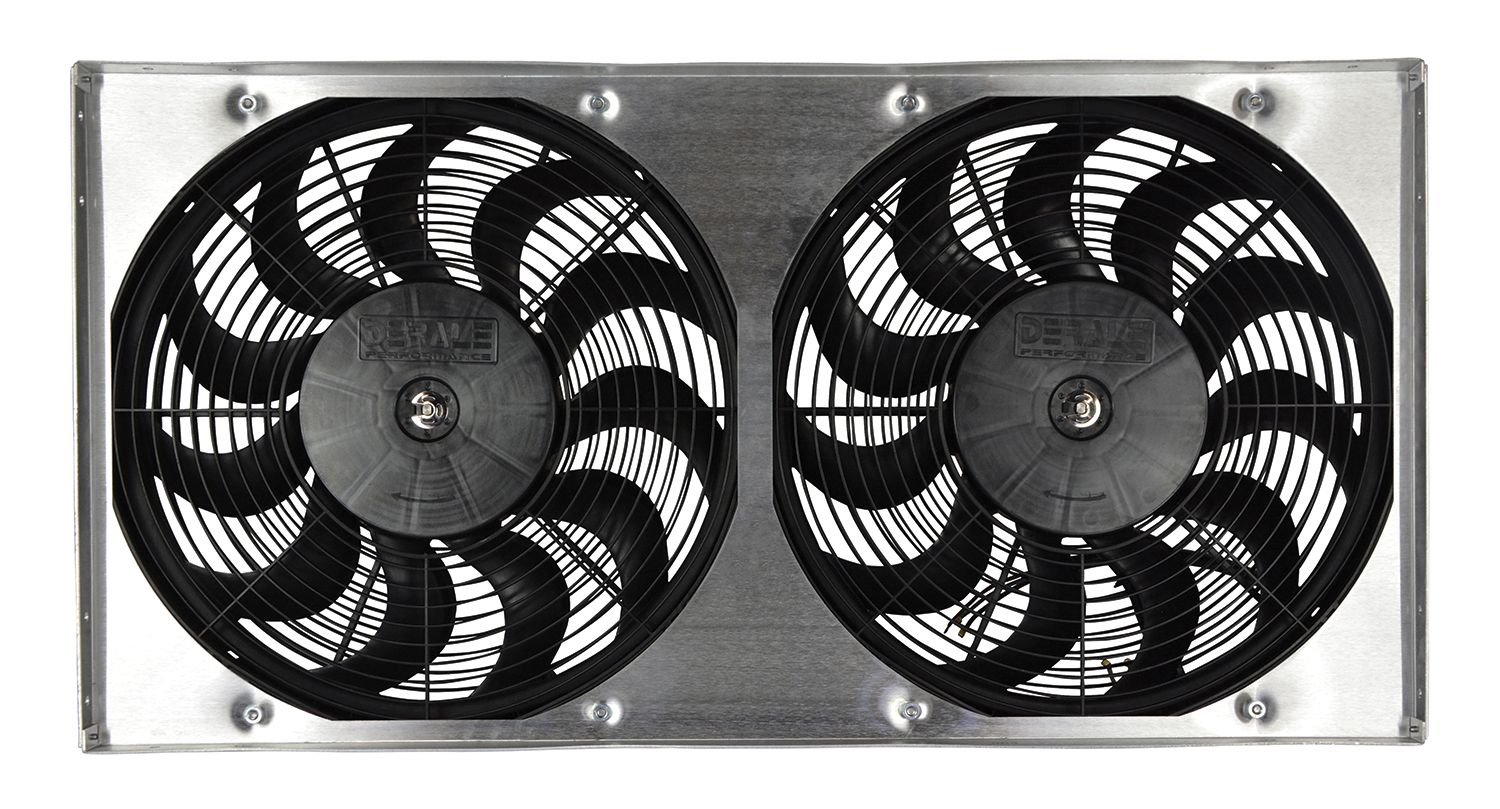

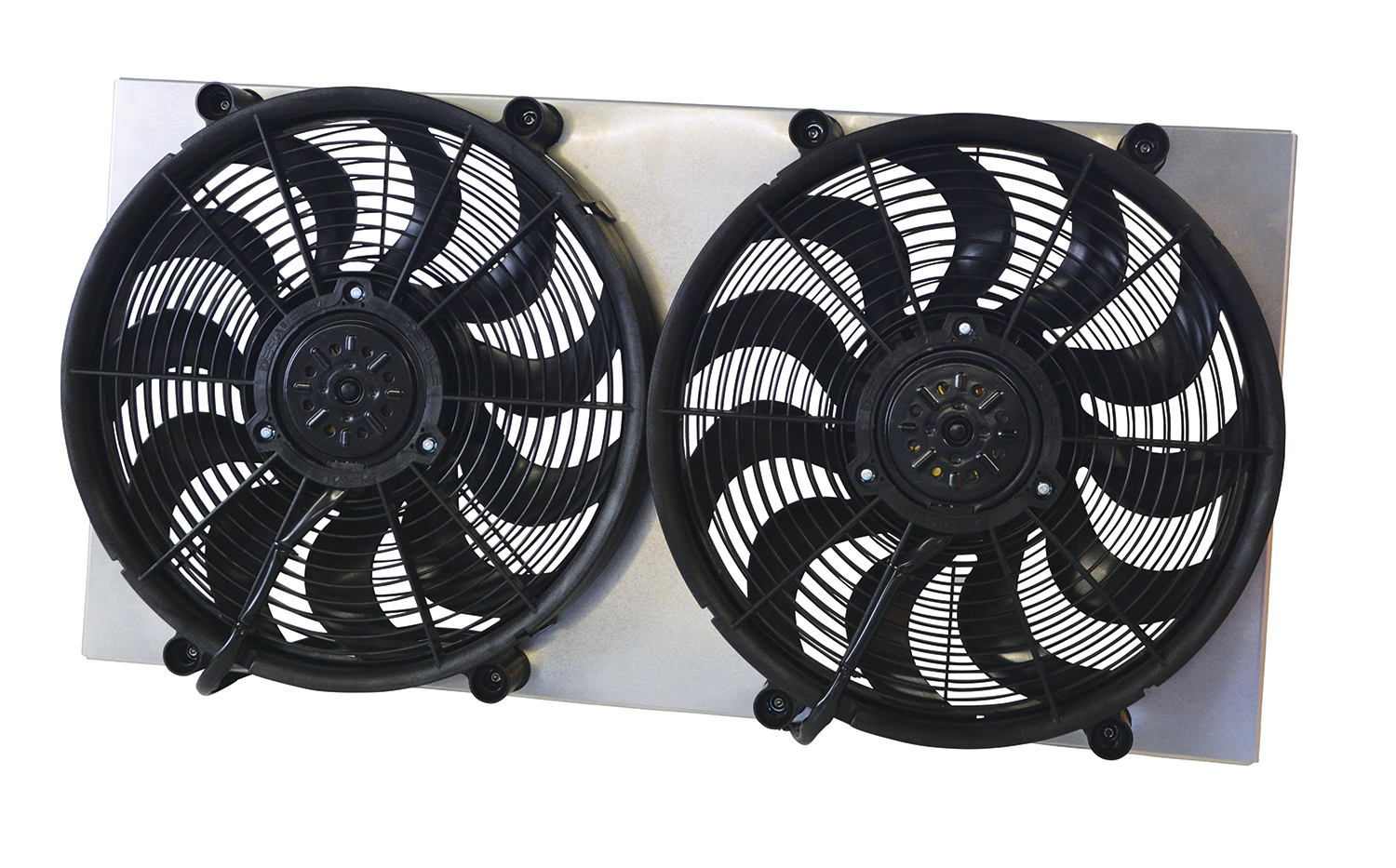

Powerpack - High Output Dual 17'' Electric RAD Fan/Aluminum Shroud Kit - 34''W x 17-1/4''H x 3-3/4''D

Description

This Dual High Output RAD Fan Powerpack Assembly is part of the HO Aluminum Shrouded Fan Series that is designed with the application in mind. Based on some of the most common radiator core sizes sold today, this unit features an aluminum shroud measuring 34" wide by 17-1/4" top to bottom and is only 3-3/4" in overall depth to offer an adjustable yet precision fit. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look for an affordable price. The dual 17" high output two speed fans are some of the best in our line-up offering 4800 combined CFM when on high speed to create the most airflow possible in a compact size.

Features
  • Designed for primary cooling
  • Raw aluminum shroud construction with stator flow directors can be polished, painted or anodized
  • High output two-speed 265 watt motors
  • 4800 combined CFM
  • Ultra-quiet patented skewed blade design
  • Multiple mounting options
  • Puller (engine side) applications only

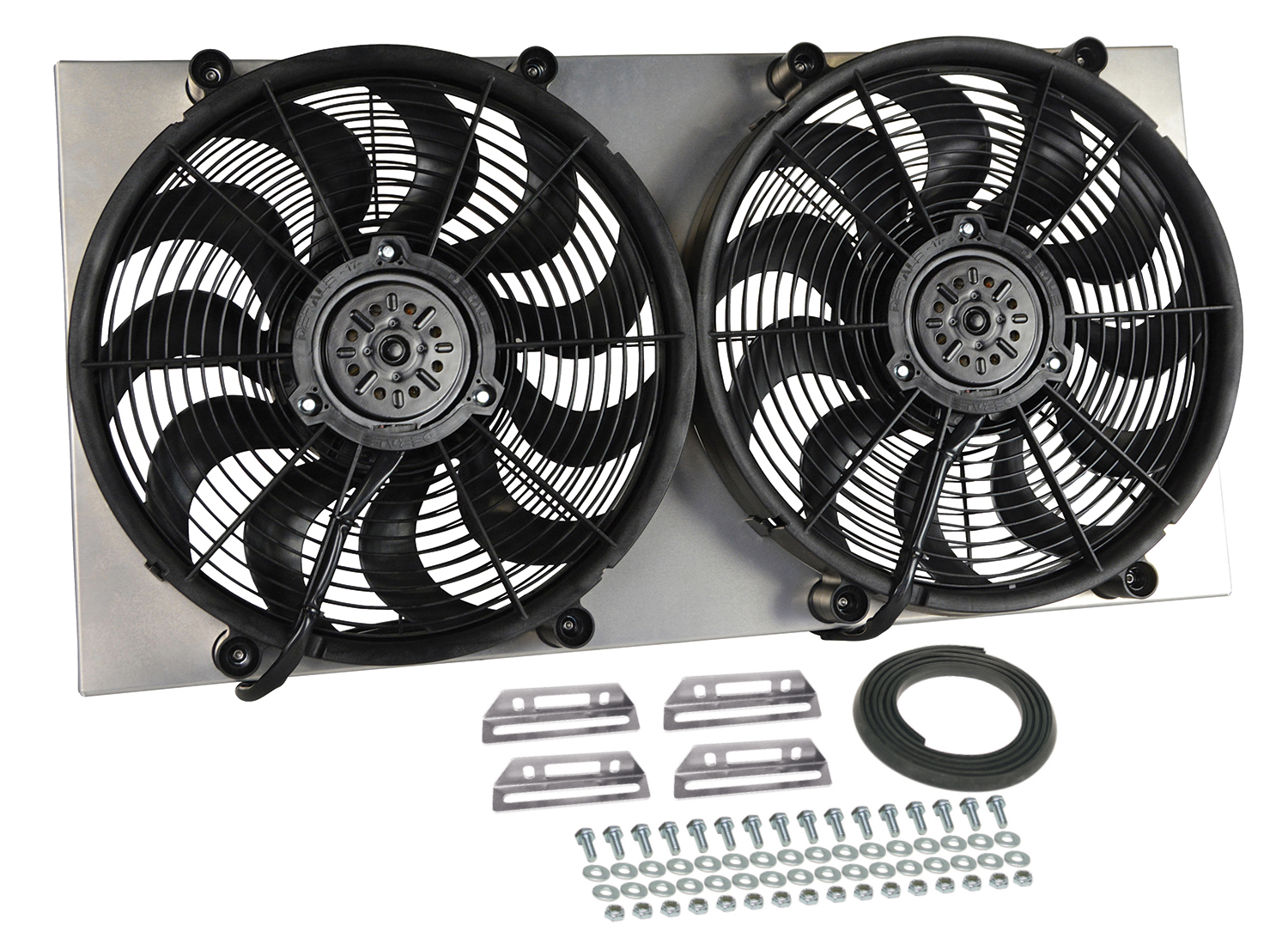

  • Kit includes adjustable mounting brackets and complete mounting hardware
Specifications
  • CFM fan 1/2: 2400/2400 High Speed  1800/1800 Low Speed
  • Amp draw fan 1/2: 23.5/23.5 High Speed   17.4/17.4 Low Speed

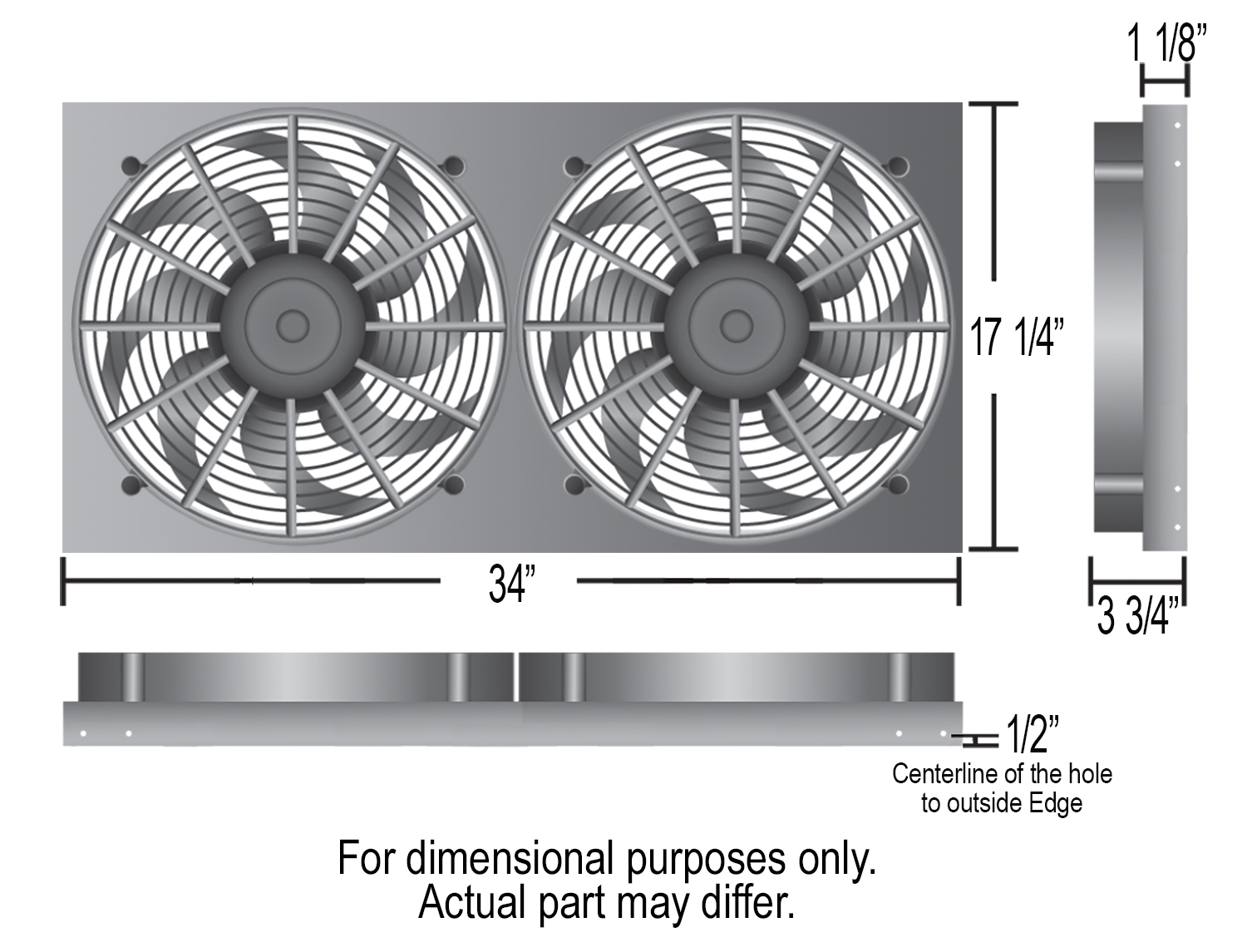

  • Width: 34"
  • Height: 17-1/4"
  • Depth: 1-1/8"

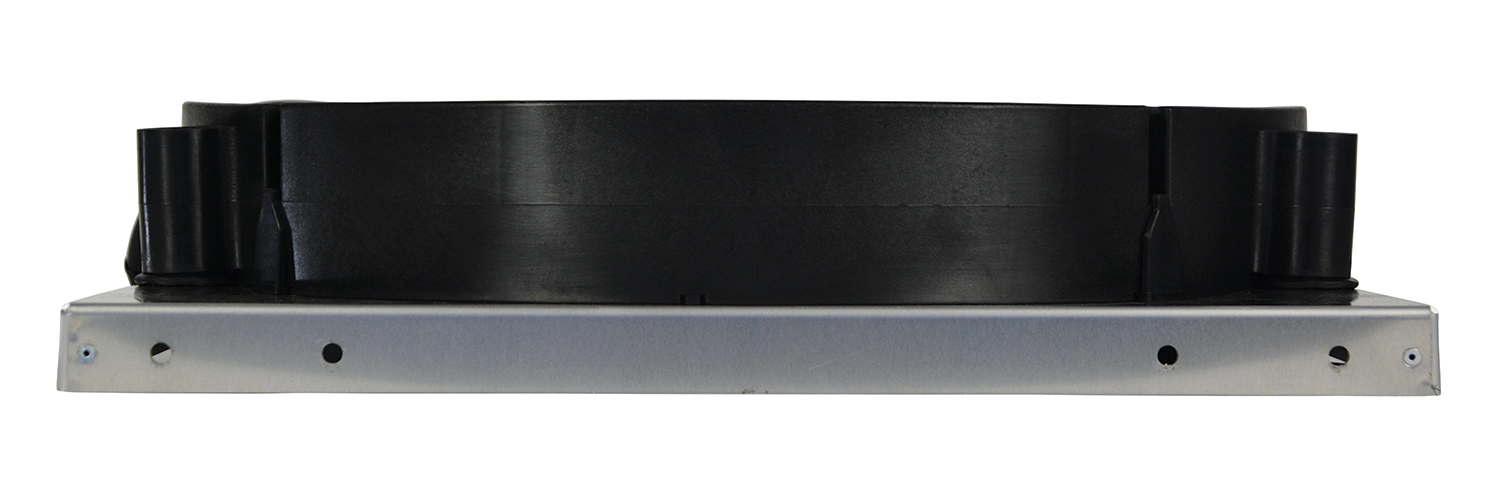

  • Overall Depth 3-3/4"
  • Mounting: Adjustable
